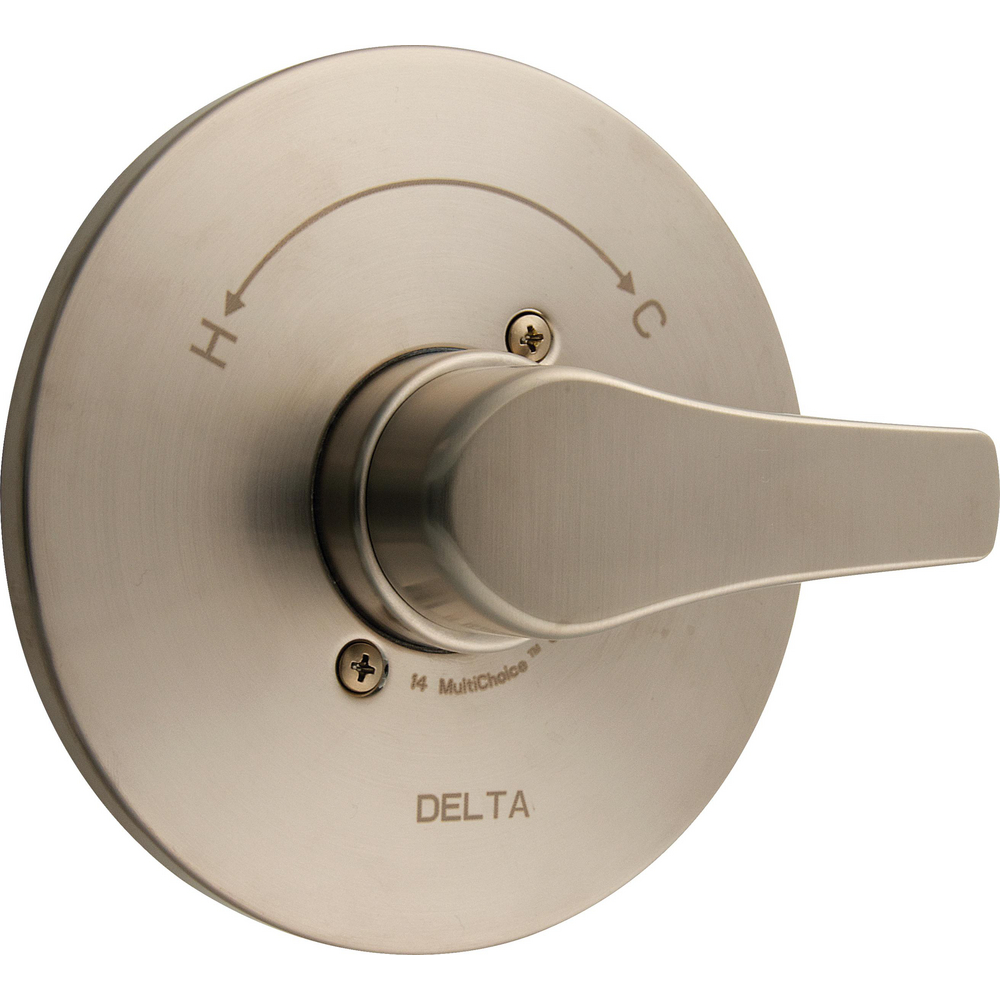

Delta T14034-SS Wynne Monitor 14 Series Valve Only Trim Stainless
WYNNE
Monitor 14 Series Valve Only Trim
model#: T14034-SS
Finish: Stainless

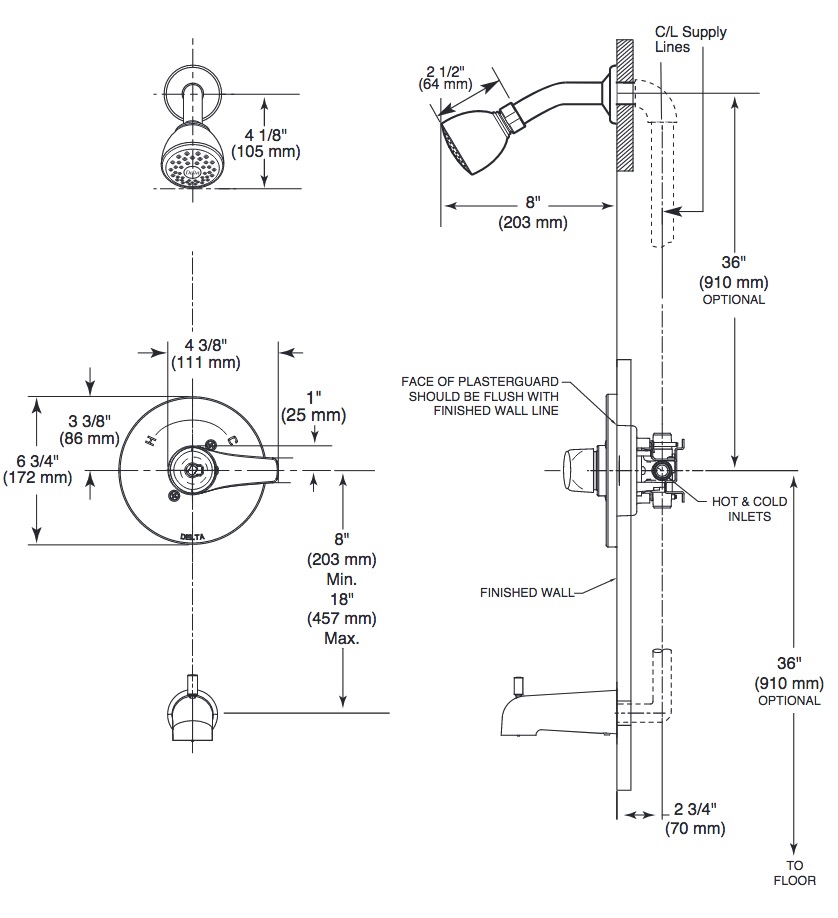

Installation Information
Valve Type: NA
STANDARD SPECIFICATIONS
Monitor 14 Series pressure balanced bath mixing valve with Scald-Guard.
Back-to-back installation capability.
Field adjustable to limit handle rotation into hot water zone.
120° maximum handle rotation.
For use with MultiChoice® Universal rough valve body.(R10000 Series)
All parts replaceable from the front of the valve.
Temperature only controlled with handle.
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system.
1/2" C.W.T slip-on spout.
Maximum flow rate of showerhead: 1.75 gpm @ 80 psi (6.6 L/min @ 552 kPa).
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
ASSE 1016-P
CSA Certified
EPA WaterSense
