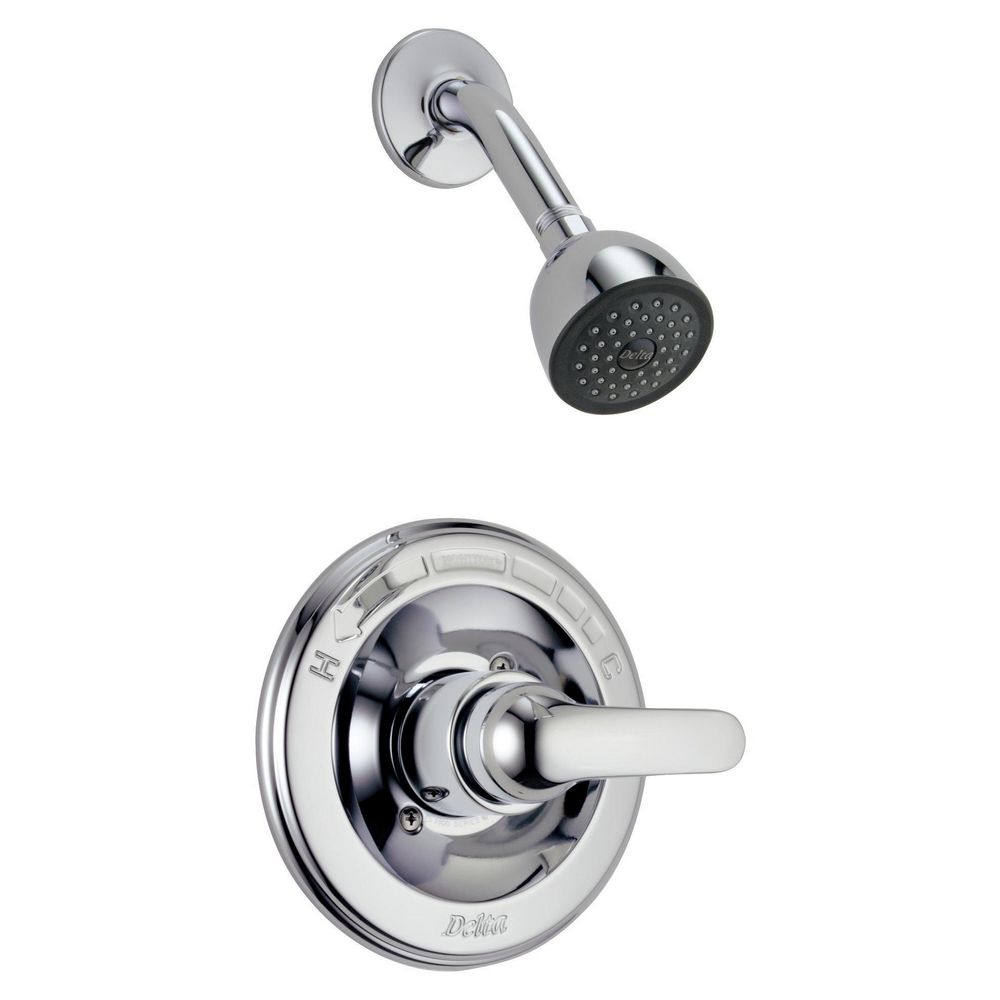

Delta T13220-CDN Classic Monitor 13 Series Shower Trim Chrome
CLASSIC
Monitor® 13 Series Shower Trim
model#: T13220-CDN
Finish: Chrome
Chrome has rapidly become one of the most popular finishes across décor styles in the bath thanks to its stunning gloss and innate versatility. Paired with crisp lines and bright whites, it creates a bold, modern contrast, but it works equally well with vintage styles and traditional spaces to convey a hint of nostalgia. Delta WaterSense labeled faucets, showers and toilets use at least 20% less water than the industry standard'saving you money without compromising performance.
Spray settings include: Full Body spray
Full body spray provides a steady, full-coverage spray perfect for every shower need, from rinsing shampoo from hair to relaxing tired muscles
Trim kit only, must order MultiChoice Universal Valve separately to complete the unit
ADA Compliant
WaterSense labeled shower heads use at least 20% less water than the industry standard without compromising performance
Installation Information
Number of Handles: Single handle
Flow Rate: 1.75 gpm, 6.6 L/min
Over All Height: 9-1/2
Valve Type: NA
Spray Settings: Full Body Spray
STANDARD SPECIFICATIONS:
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system.
For use with MultiChoice® Universal rough valve body. (R10000 Series)
Back-to-back installation capability
Solid brass forged body
Temperature only controlled with metal lever handle
Field adjustable to limit handle rotation into hot water zone
120° maximum handle rotation
All parts replaceable from the front of the valve
T13220-H2OT uses 52658-PK

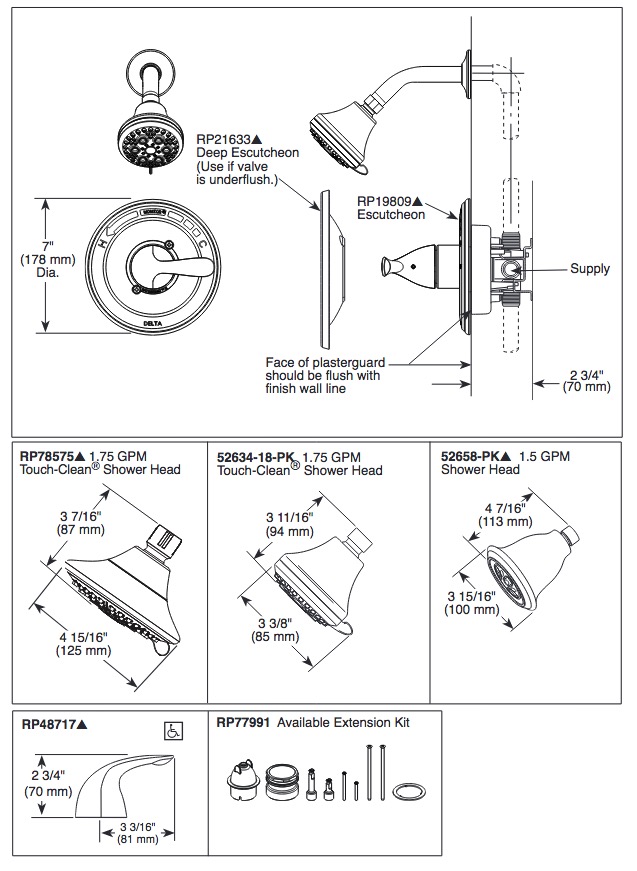

DPE = 1" deeper escutcheon (RP21633)
Stem extension kit RP77991 can be ordered to allow for an additional 1 3/4" wall thickness. RP77991 ships with chrome escutcheon screws. For special finishes also order
RP12630 escutcheon screws in desired finish.
Shower head max flow rate 1.5 gpm @ 80 psi, 5.7 L/min @ 550 kPa (T13220-H2OT)
Shower head max flow rate 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa (T13020, T13020-DPE, T13220, T13220-SHC)
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
ASSE 1016
Indicates compliance to ICC/ANSI A117.1 - Valve control only
EPA WaterSense
