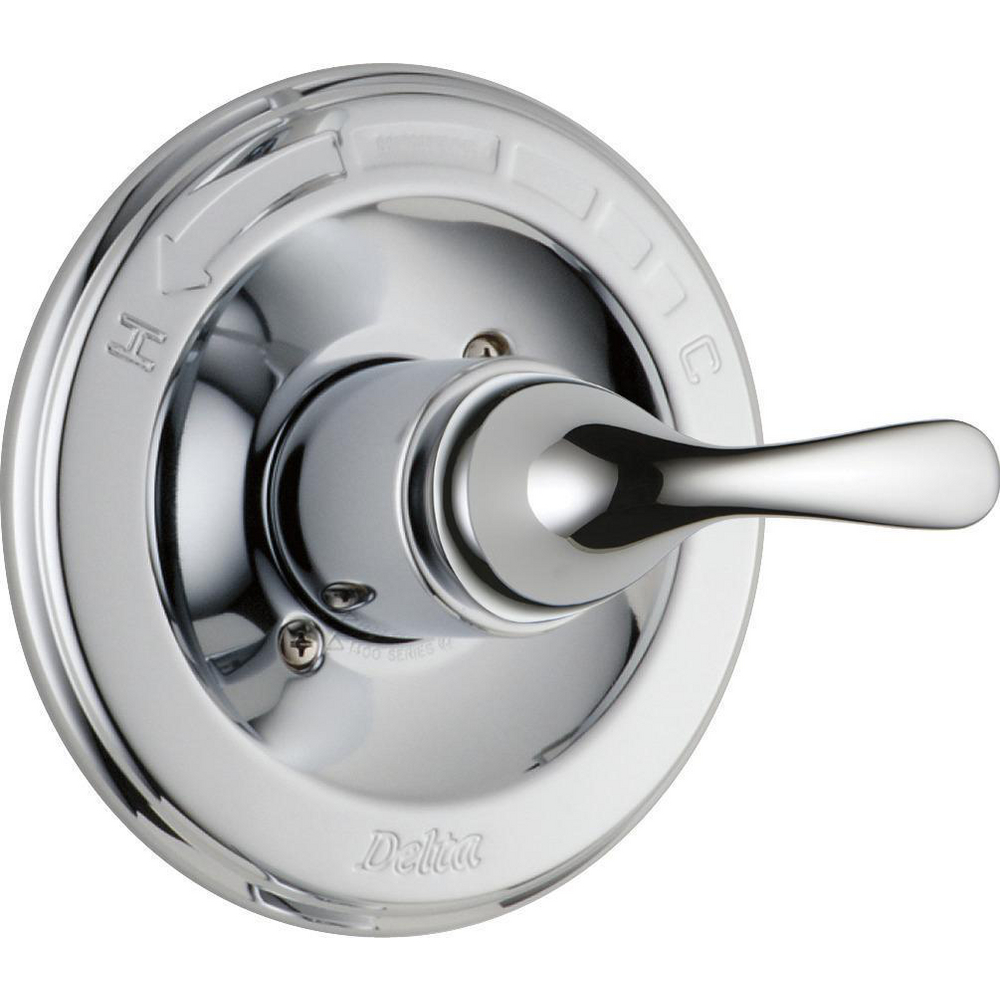

Delta T13020 Classic 13 Series Universal Trim Chrome
CLASSIC
Monitor® 13 Series Valve Trim Only
model#: T13020
Finish: Chrome
Trim kit only, must order MultiChoice Universal rough-in separately to complete the unit
Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
Single function operation
Single lever handle for ease of temperature control
Meets standards set by Americans with Disabilities Act (ADA)

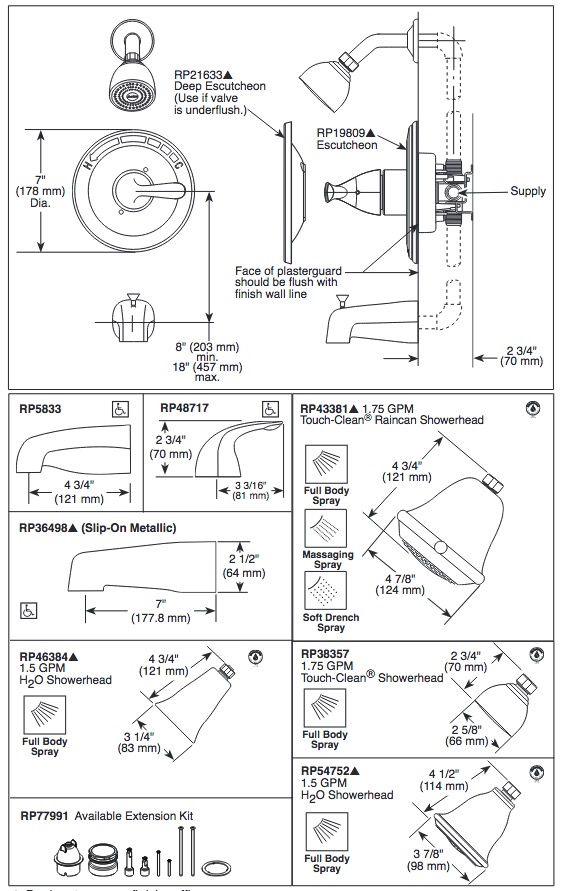

Installation Information
Number of Handles: Single handle
Over All Height: 9-1/2
Valve Type: NA
STANDARD SPECIFICATIONS:
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system.
For use with MultiChoice® Universal rough valve body. (R10000 Series)
Back-to-back installation capability.
Solid brass forged body.
Temperature only controlled with metal lever handle.
Field adjustable to limit handle rotation into hot water zone.
120° maximum handle rotation.
All parts replaceable from the front of the valve.
Models with "LTS" suffix supplied with 7" long non-diverter slip-on spout (RP36498).
T13220-H2O uses RP46384.
T13220-H2OT uses RP54752.
DPE = 1" deeper escutcheon (RP21633).
Models with "CER" use ceramic cartridge RP74236.
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
ASSE 1016
Indicates compliance to ICC/ANSI A117.1 - Valve control only
EPA WaterSense
