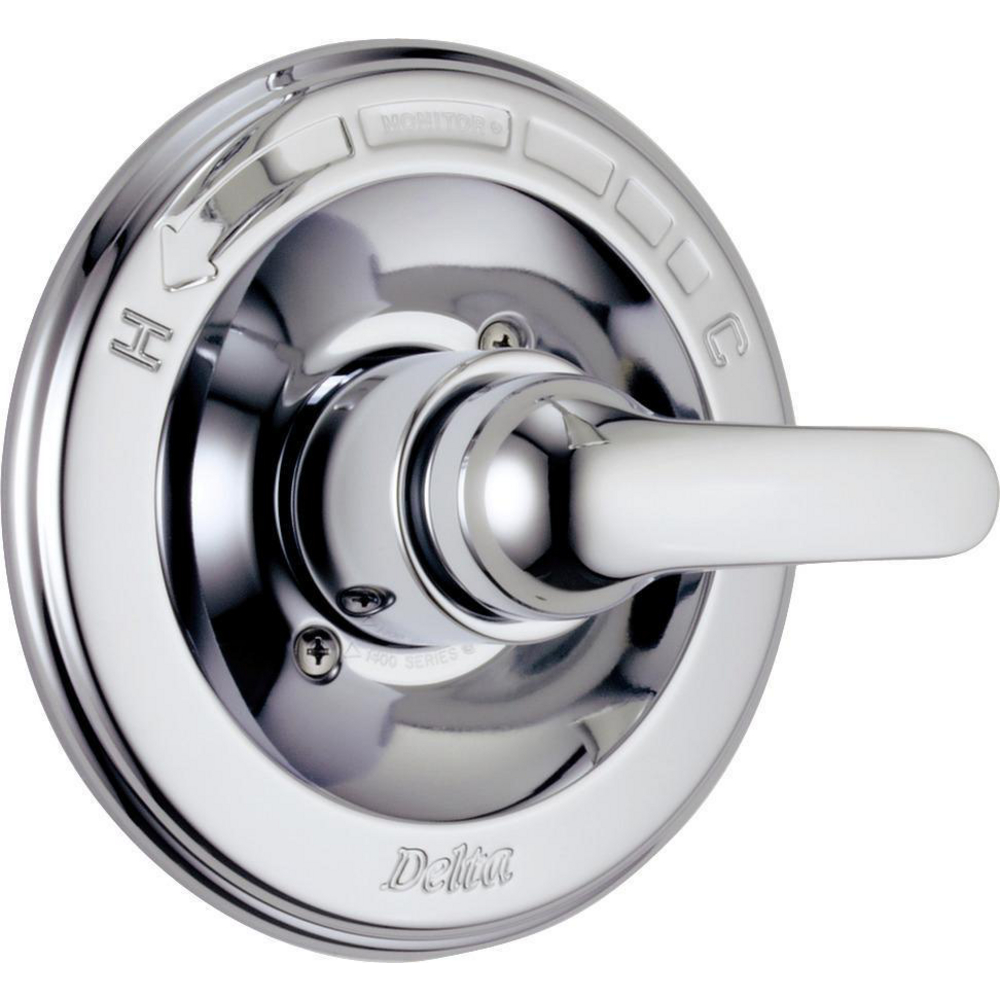

Delta T13020-CDN Classic 13 Series Universal Trim Chrome
CLASSIC
Monitor® 13 Series Valve Trim Only
model#: T13020-CDN
Finish: Chrome
Delta's separate rough and trim program allows you to switch your trim without the hassle of changing your rough-in as well. Another great benefit is the ability to have your plumber install the rough-in before you've decided on the trim you want. By installing the rough-in first, you can later decide what type of trim will go perfectly in your bath.
Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
Single function operation
Single lever handle for ease of temperature control
Installation Information
Number of Handles: Single handle
Over All Height: 7
Valve Type: NA
STANDARD SPECIFICATIONS:
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system.
For use with MultiChoice® Universal rough valve body. (R10000 Series)
Back-to-back installation capability
Solid brass forged body
Temperature only controlled with metal lever handle
Field adjustable to limit handle rotation into hot water zone
120° maximum handle rotation
All parts replaceable from the front of the valve
T13220-H2OT uses 52658-PK

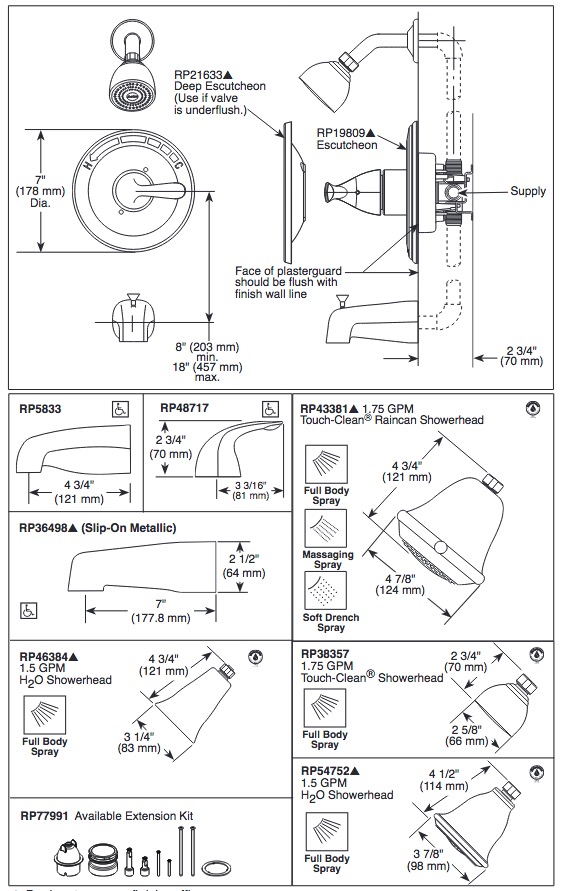

DPE = 1" deeper escutcheon (RP21633)
Stem extension kit RP77991 can be ordered to allow for an additional 1 3/4" wall thickness. RP77991 ships with chrome escutcheon screws. For special finishes also order
RP12630 escutcheon screws in desired finish.
Shower head max flow rate 1.5 gpm @ 80 psi, 5.7 L/min @ 550 kPa (T13220-H2OT)
Shower head max flow rate 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa (T13020, T13020-DPE, T13220, T13220-SHC)
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
ASSE 1016
Indicates compliance to ICC/ANSI A117.1 - Valve control only
EPA WaterSense
