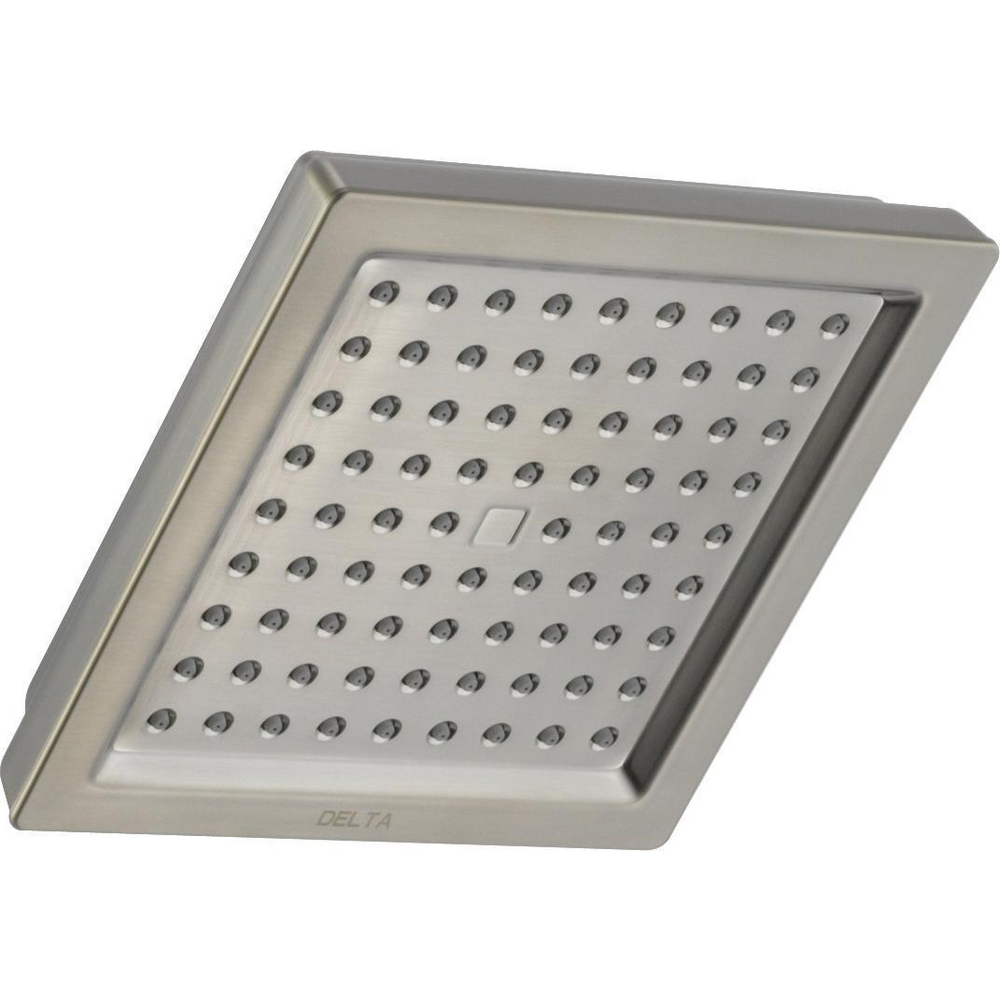

Delta RP62283SS Dryden Single Setting Shower Head Stainless
UNIVERSAL SHOWERING
Single-Setting Shower Head
model#: RP62283SS
Finish: Stainless
Replacing your shower head is one of the quickest, simplest upgrades you can make to your shower. Our shower heads feature a wide range of styles and innovations, and install in less than 20 minutes - no special tools required.
Touch Clean® Raincan Shower Head
6 1/2" square finished spray face
SpotShield Technology helps your shower head and hand shower stay cleaner, longer by resisting water spots and fingerprints
Installs in minutes
Spray settings include: Full Body spray
Full body spray provides a steady, full-coverage spray perfect for every shower need, from rinsing shampoo from hair to relaxing tired muscles

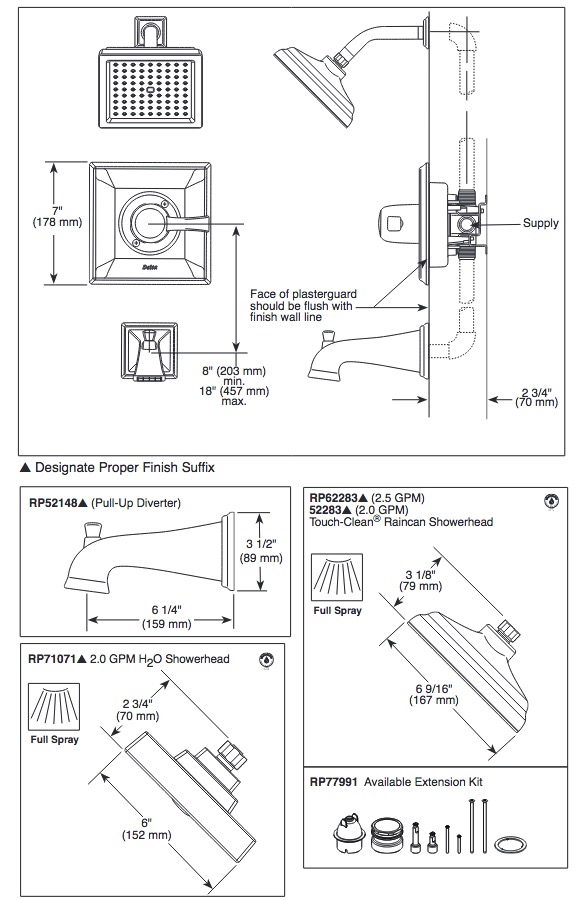

Installation Information
Flow Rate: 2.50 gpm, 9.5 L/min
Over All Height: 6-1/2
Valve Type: NA
Spray Settings: Full Body Spray
STANDARD SPECIFICATIONS:
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system.
For use with MultiChoice® Universal rough valve body. (R10000 Series)
Back-to-back installation capability.
Solid brass forged body.
Temperature only controlled with handle.
Field adjustable to limit handle rotation into hot water zone.
120° maximum handle rotation.
All parts replaceable from the front of the valve.
2.5 gpm @ 80 PSI for standard models and 2.0 gpm @ 80 PSI for models with -H2O & -WE suffix.
"-LHD" models have pad printed red/blue temperature indication less showerhead.
Stem extension kit RP77991 can be ordered to allow for an additional 1 3/4" wall thickness. RP77991 ships with chrome escutcheon screws. For special finishes also order RP12630 escutcheon screws in desired finish.
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
ASSE 1016
Indicates compliance to ICC/ANSI A117.1 - Valve control only
