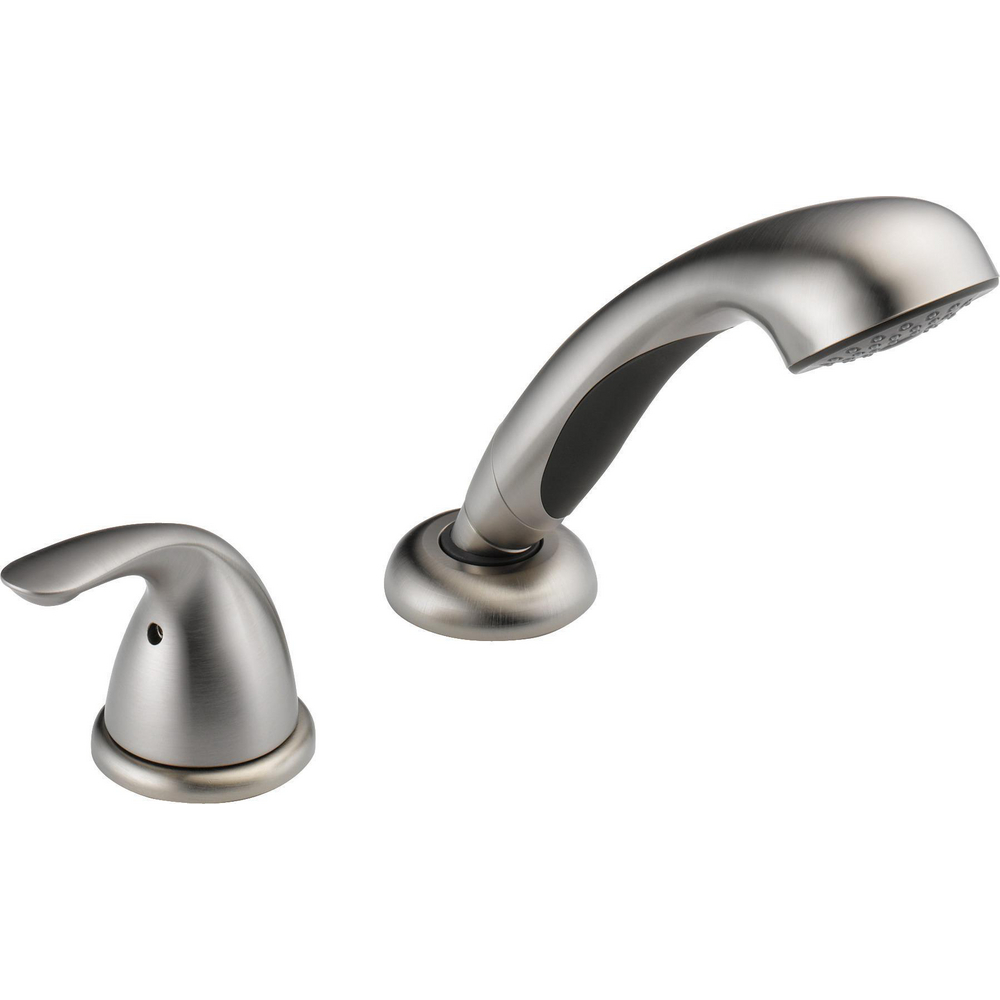

Delta RP14979SS Classic Roman Tub Handshower With Transfer Valve Stainless
CLASSIC
Roman Tub Hand Shower with Transfer Valve
MODEL#: RP14979SS
Finish: Stainless
Hand shower must mount on deck; Handle can mount on deck or wall
69" long hose provides extended reach
Flexible mounting arrangement allows design flexibility

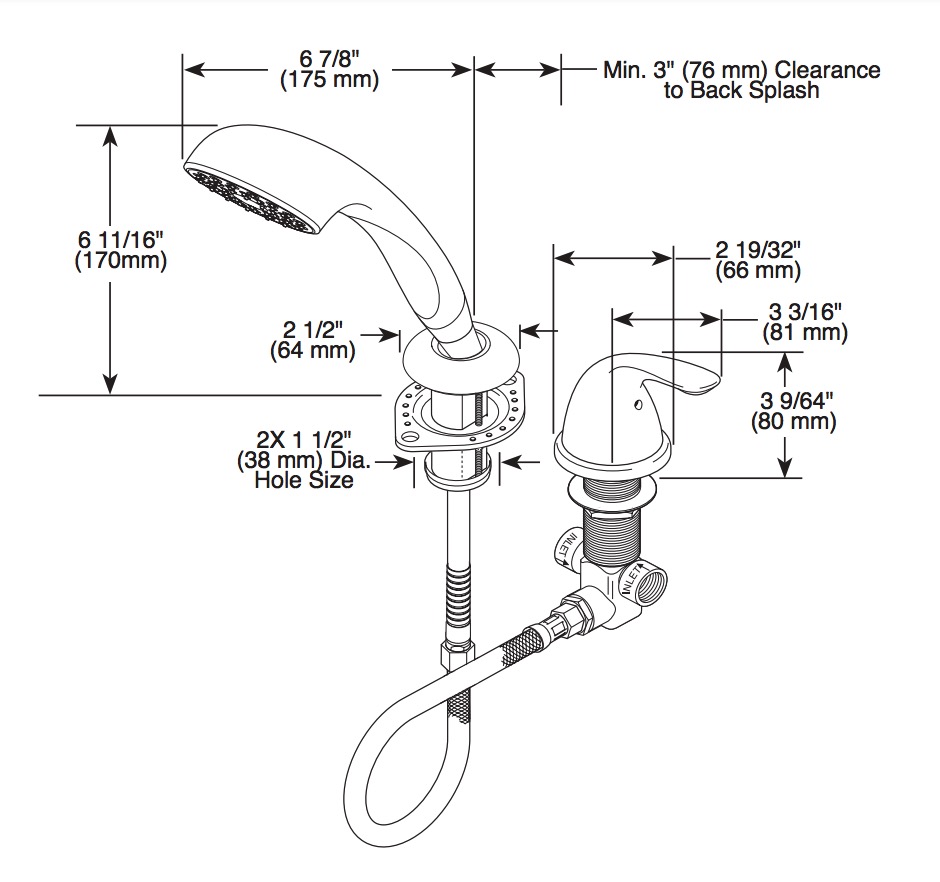

Installation Information
Number of Handles: Single handle
Flow Rate: 1.75 gpm, 6.6 L/min
Valve Type: NA
Spray Settings: Full Body Spray
STANDARD SPECIFICATIONS:
Solid fabricated brass body
Ledge or wall mount transfer valve for maximum 1 3/4” (44 mm) deck thickness
69” (1753 mm) flexible hose
Control mechanism is a rotating cylinder type with stainless steel plate and 180˚ rotation, with replaceable non-metallic seats operating in stainless steel lined sockets.
All operating parts shall be replaceable from the top
1/2”-14 NPT threaded female inlets and outlets
Do not install hot and cold inlet water supplies directly to transfer valve. Must be installed to another valve in order to control volume and temperature.
Handshower includes double check valves for backflow prevention
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
EPA WaterSense
