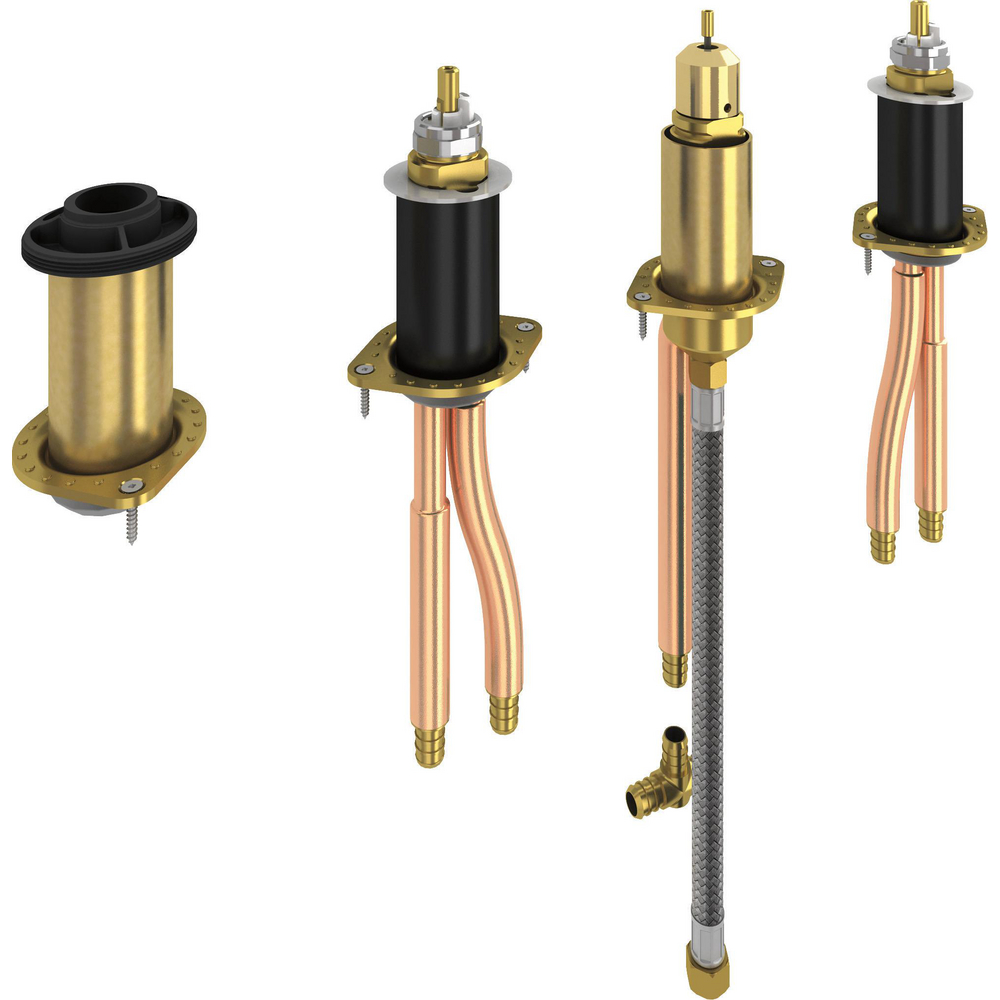

Delta R4707-PX Flexible Roman Tub withHand Shower Rough
DELTA
Flexible Roman Tub withHand Shower Rough
MODEL#: R4707-PX
Rough-in only for 4 piece roman tub. PEX tubing installation allows flexible handle spacing and temperature and volume is controlled with the handles.
Includes hand-shower rough-in for easier installation
Easy installation also allows for above-deck adjustability
Installation also allows for above-deck adjustability
Flexible mounting arrangement allows design flexibility
5/8 in. O.D. copper supply inlet and outlet tubes with integrated PEX fittings
Four hole installation
Hot and cold stems are interchangeable
Temperature and volume controlled with handles

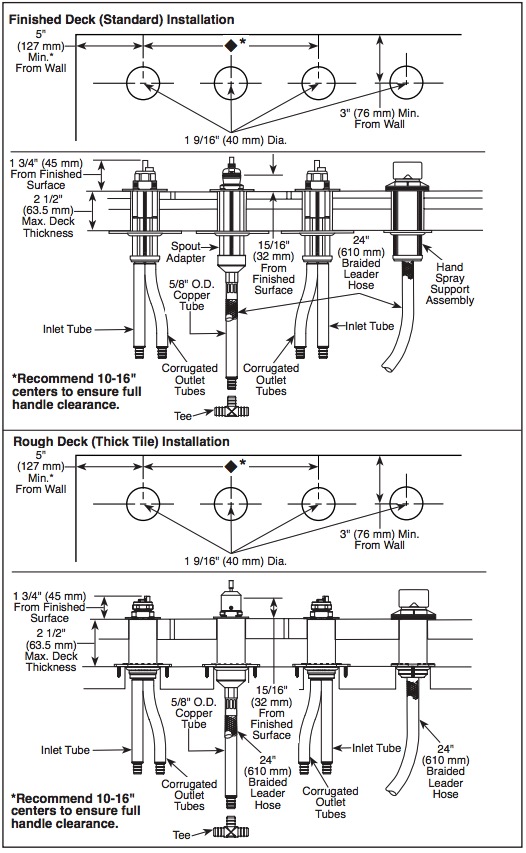

Installation Information
Deck Thickness: 2.25"
Valve Type: Washerless stem cartridge
Over All Height: 4-9/16
STANDARD SPECIFICATIONS
Washerless
Four hole installation
R4707-MF uses PEX cold expansion type connections
R4707-PX uses PEX crimp ring type connections
Recommended minimum handle spacing is 10" (254 mm)
Recommended maximum handle spacing is 16" (406 mm)
5/8" O.D. copper supply inlet and outlet tubes with integrated PEX fittings
Flexible deck or ledge mount installation
Solid fabricated brass end valves and spout body
Control mechanism shall be of the rotating cylinder type with stainless steel plate and 180º rotation, with replaceable seats operating in stainless steel lined sockets
Hot and cold stems are interchangeable
Temperature and volume controlled with handles
All operating parts shall be replaceable from the top
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
