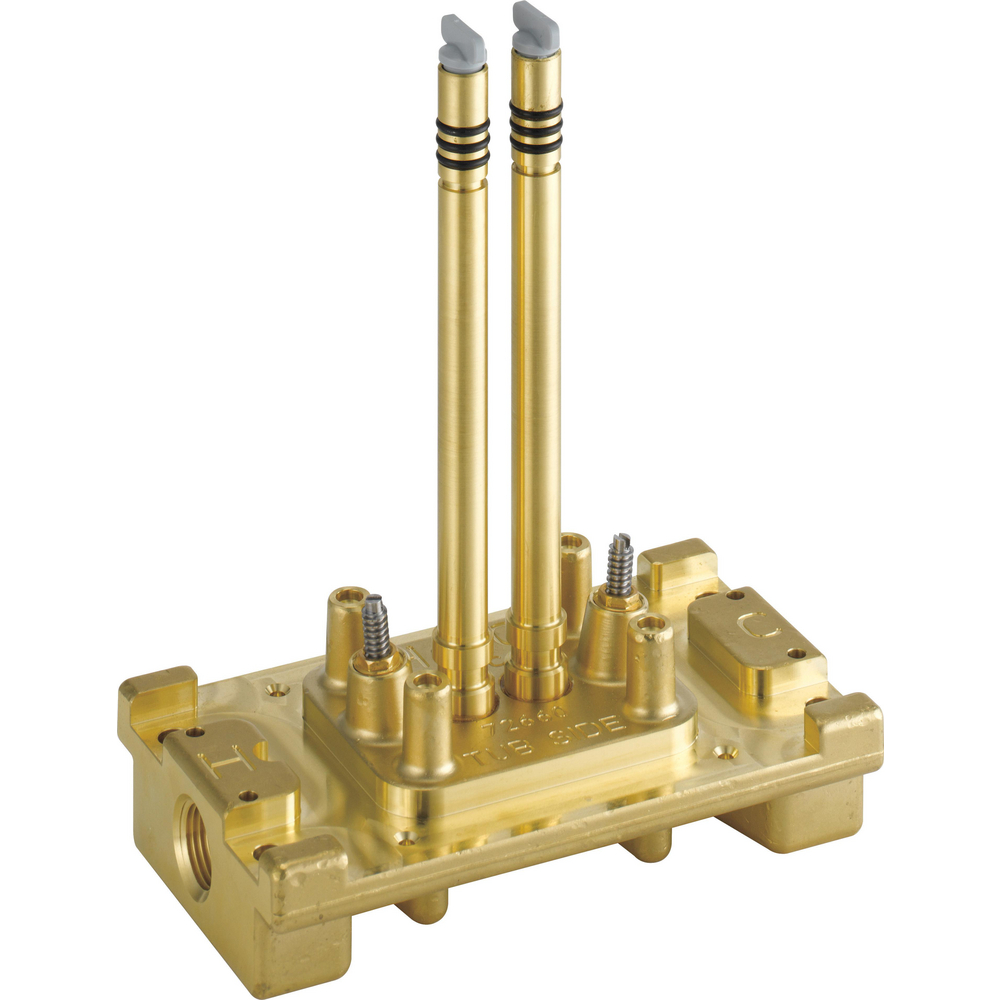

Delta R4700-FLWS Floor Mount Tub Filler Rough With Stops
TRINSIC
Floor Mount Tub Filler - Rough with Stops
MODEL#: R4700-FLWS
This single hole freestanding floor mounted tub filler rough-in with integrated stops and innovative mounting system provides for simple stable installation and accommodates finished floor thickness up to 3".
1/2" NPT female inlets
Forged brass body
Available with integrated stops (R4700-FLWS)
Innovative mounting system provides for simple stable installation
Accommodates finished floor thickness up to 3"
Pre-assembled test caps allow air or water pressure testing without trim
Pre-assembled protective plasterguard with information label indicating finished floor location
Pre-assembled gasket to isolate living space
Trim sold separately

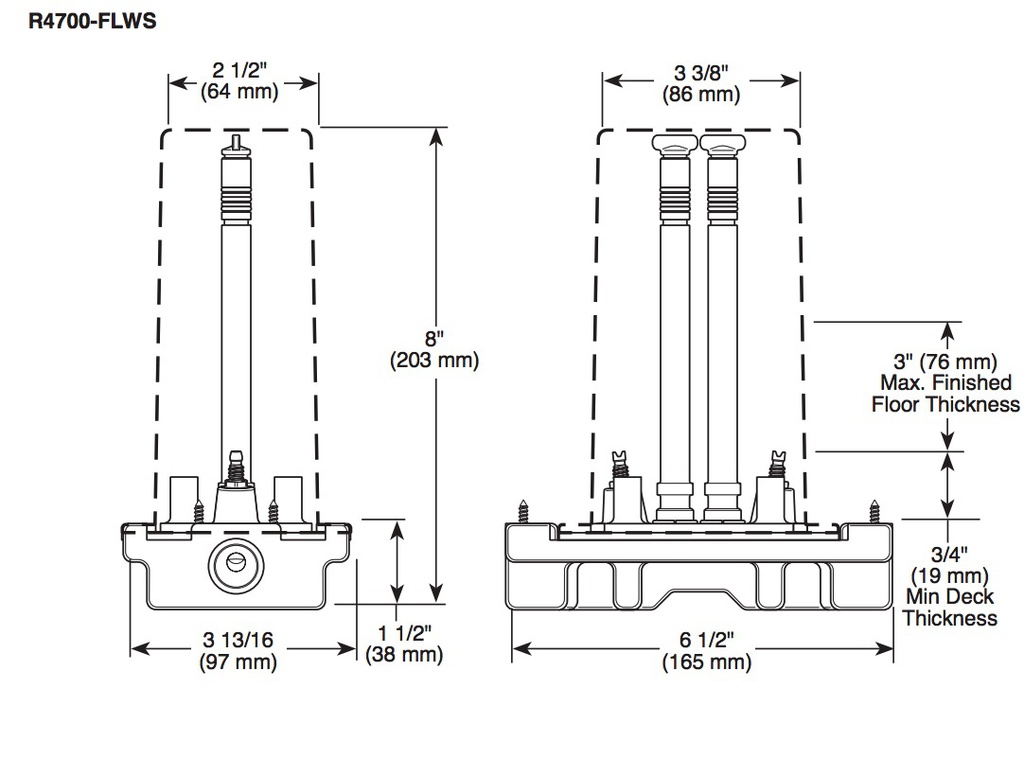

Installation Information
Over All Height: 8
Valve Type: NA
STANDARD SPECIFICATIONS:
1/2" NPT female inlets.
Forged brass body.
Available with integrated stops (R4700-FLWS).
Innovative mounting system provides for simple stable installation.
Accommodates finished floor thickness up to 3".
Pre-assembled test caps allow air or water pressure testing without trim.
Pre-assembled protective plasterguard with information label indicating finished floor location.
Pre-assembled gasket to isolate living space.
Trim sold separately
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
