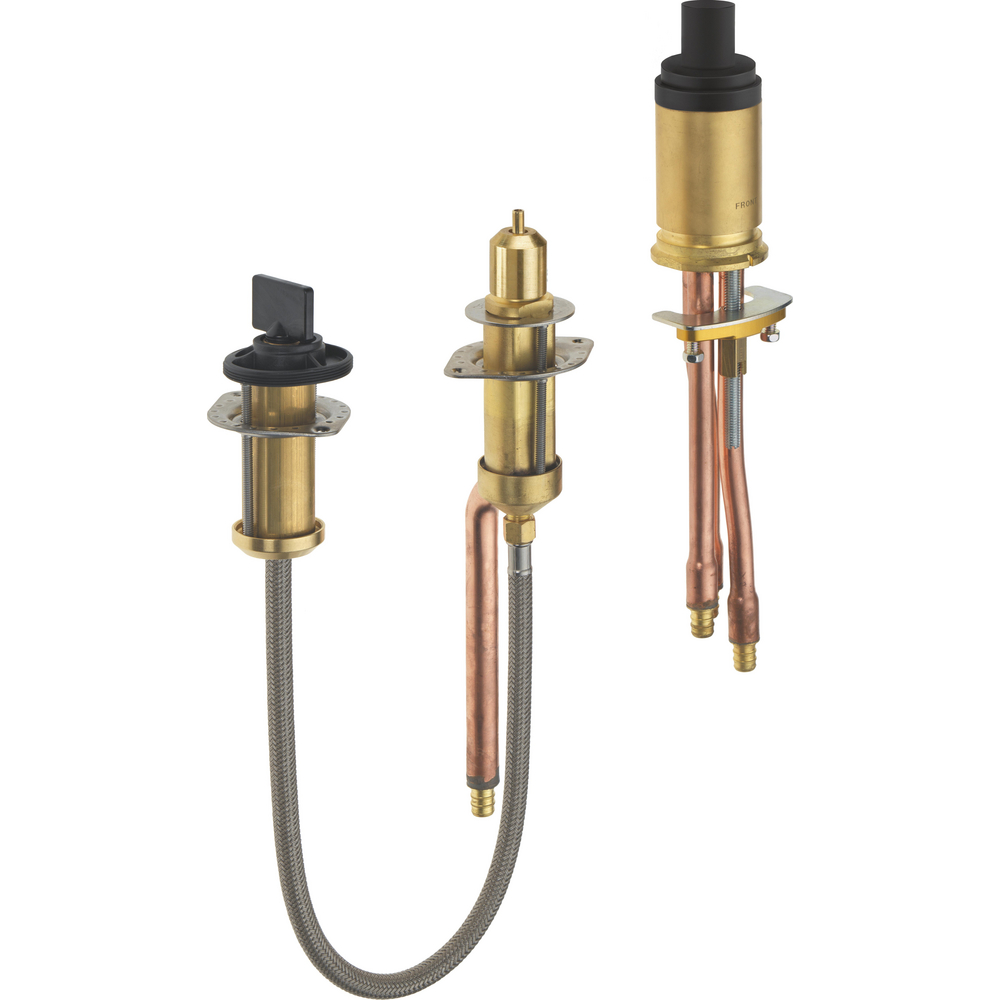

Delta R3708-PX Broderick Rough-In Roman Tub Fixed Mount
BRODERICK
Rough-In Roman Tub Fixed Mount - Pex Crimp
MODEL#: R3708-PX
This rough-in kit is for use with 3-hole, single handle deck mount Roman tub faucets with a hand shower. Trim kit is sold separately and is required to complete the unit.
Rough-in kit only
Must purchase trim kit to complete the unit
3-hole flexible deck or ledge mount installation
Refer to trim kit specifications for best rough-in kit and handle spacing
Crimping 1/2-inch PEX connections
2-1/2 inch maximum deck thickness
1/2-inch PEX tubing connection allows flexible spacing between handle, spout and hand shower
Solid fabricated brass end valves and spout body
Auto resetting diverter
Backed by Delta Faucet's Lifetime Limited Warranty

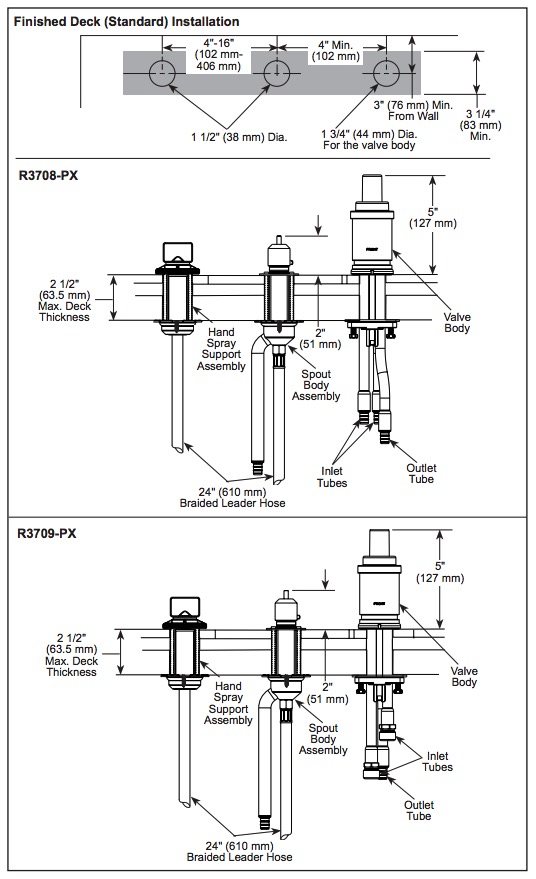

Installation Information
Over All Height: 33-3/4
Valve Type: NA
STANDARD SPECIFICATIONS
Deck mount on either free standing tub or garden tub
Three hole installation
Installed on the finished deck, 2 1/2" maximum deck thickness
3 1/4" minimum width required for both deck surface and the internal space under it
Single handle controls the volume and temperature
High flow ceramic mixing cartridge
1/2" PEX tubing connection allows flexible spacing among handle, spout and hand shower
Auto resetting diverter
Solid fabricated brass end valves and spout body
R3709-PX uses two flexible supply hoses to stop valves, use crimping 1/2" PEX connection between valve body and spout body
R3708-PX uses crimping 1/2" PEX connections
Crimping PEX between valve body and spout body
Flexible deck or ledge mount installation
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
