Delta R3510-WL Tesla Single Handle Wall Mount Lavatory Rough
TESLA
Single Handle Wall Mount Lavatory Rough
MODEL#: R3510-WL
Install this Single Handle Wall-Mount Lavatory Rough-In Kit for use with the wall-mount bathroom faucets. This lead-free brass body ships with the valves and plaster guards for a hassle-free installation. As part of a company that delivers water every day through millions of faucets worldwide, Delta provides a lifetime limited warranty on all parts to the original consumer.
Rough-in only, must purchase trim separately
For use with single handle wall-mount bathroom faucets

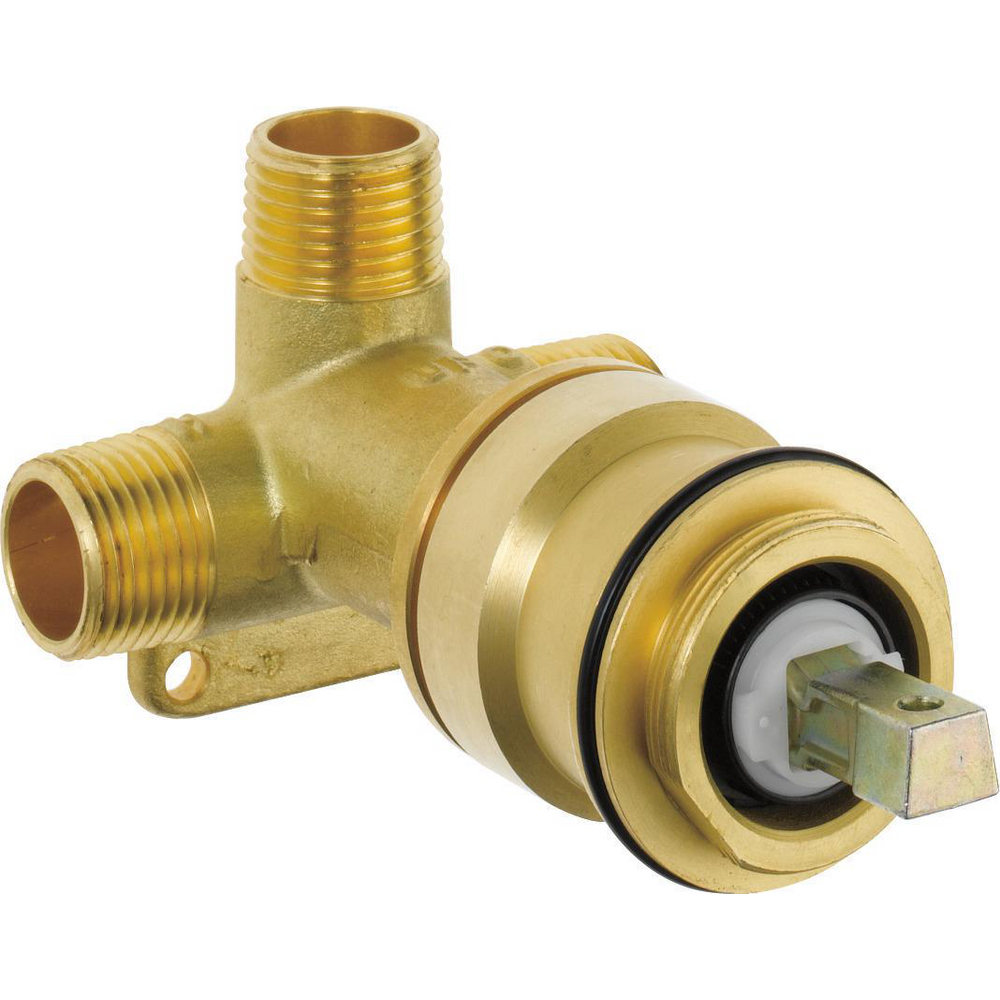

Forged brass body provides years of reliability behind the wall

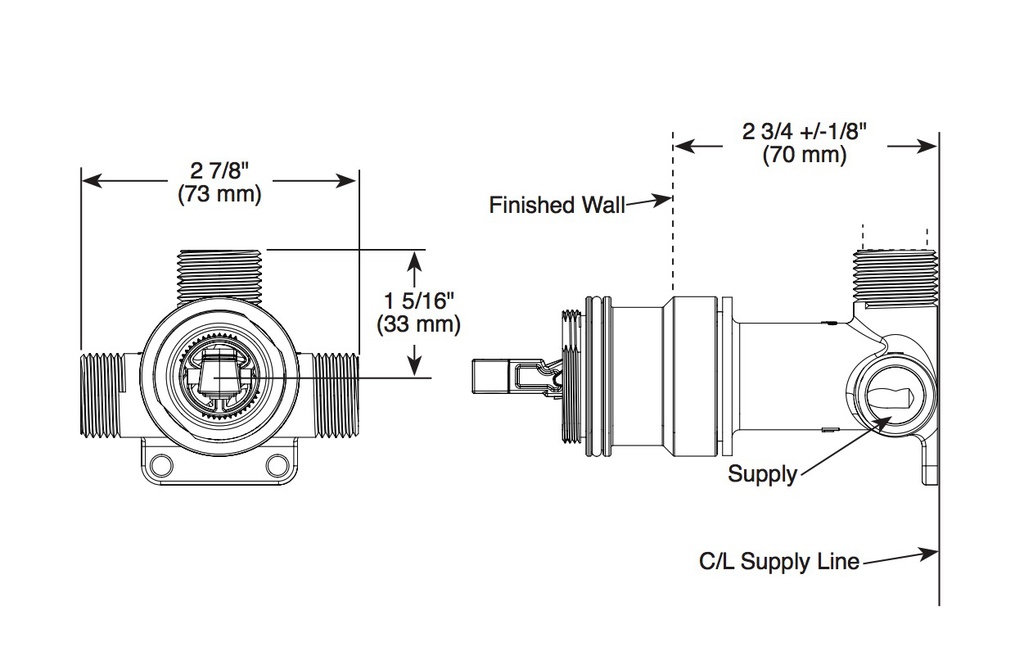

Maximum rough-in depth 2-3/4 in.
Can be tested with air (200 psi) or water (300 psi) using supplied cartridge
Control mechanism is the diamond embedded ceramic disc cartridge
Installation Information
Flow Rate: 1.5 gpm @ 60 psi, 5.7 L/min @ 414 kPa
Over All Height: 3-1/2
Valve Type: NA
STANDARD SPECIFICATIONS
Forged brass body.
Control mechanism is the diamond embedded ceramic disc cartridge.
Can be tested with air (200 psi) or water (300 psi) using supplied cartridge.
Refer to the installation instructions for more details.
Must order trim separately.
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
