Delta R2707-PX Flexible Roman Tub Rough
CLASSIC
Flexible Roman Tub Rough
MODEL#: R2707-PX
This rough-in kit may be installed prior to choosing the specific trim and finish. Allows for construction or a renovation project to proceed without delays when narrowing down a design style. Trim kit is sold separately and is required to complete the unit. Save time, effort, and money on future renovation updates because there's no need to alter plumbing beneath the deck.

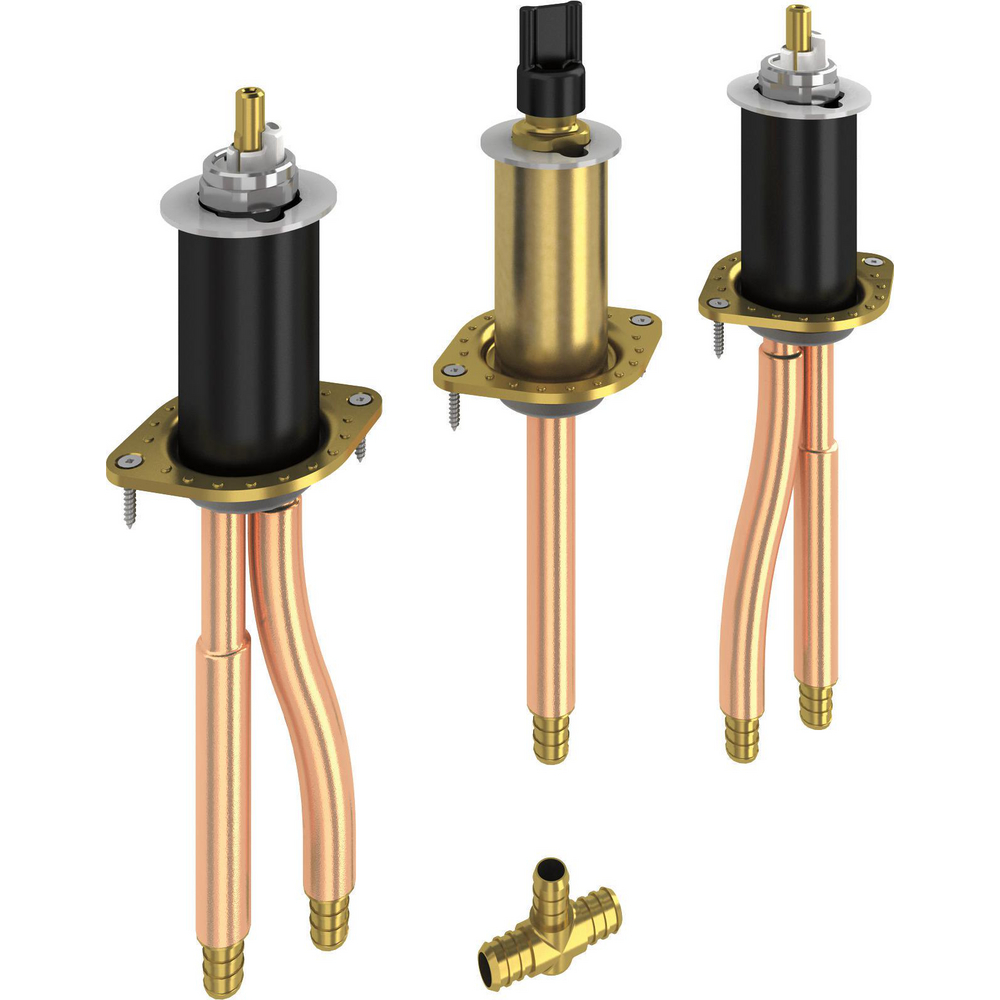

3-Hole Roman Tub Rough-in installation kit
Flexible deck or ledge mounting arrangement
Self-locating basis
Tighten/adjust from above the deck
Flexible deck or ledge mounting arrangement
Self-locating basis
Tighten/adjust from above the deck
Uses PEX crimp ring type connections
Recommended minimum handle spacing is 10 in.
Recommended maximum handle spacing is 16 in.
5/8 in. O.D. corrugated copper supply outlet tubes
Hot and cold stems are interchangeable
Temperature and volume controlled with handles

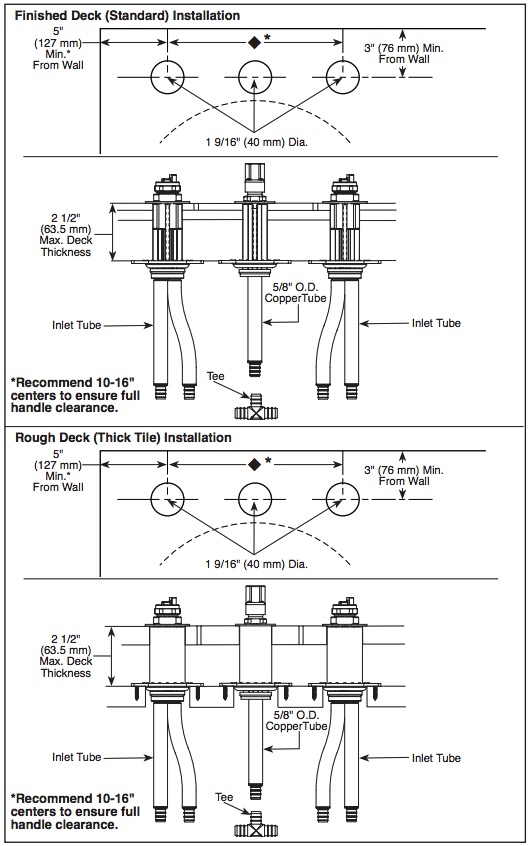

Installation Information
Flow Rate: 18 gpm @ 80 psi, 68.1 L/min @ 552 kPa
Deck Thickness: 2.25"
Over All Height: 10-1/2
Valve Type: NA
STANDARD SPECIFICATIONS
Washerless
Three hole installation
R2707-MF uses PEX cold expansion type connections
R2707-PX uses PEX crimp ring type connections
Recommended minimum handle spacing is 10" (254 mm)
Recommended maximum handle spacing is 16" (406 mm)
5/8" O.D. copper supply inlet and outlet tubes with integrated PEX fittings
Flexible deck or ledge mount installation
Solid fabricated brass end valves and spout body
Control mechanism shall be of the rotating cylinder type with stainless steel plate and 180º rotation, with replaceable seats operating in stainless steel lined sockets
Hot and cold stems are interchangeable
Temperature and volume controlled with handles
All operating parts shall be replaceable from the top
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
