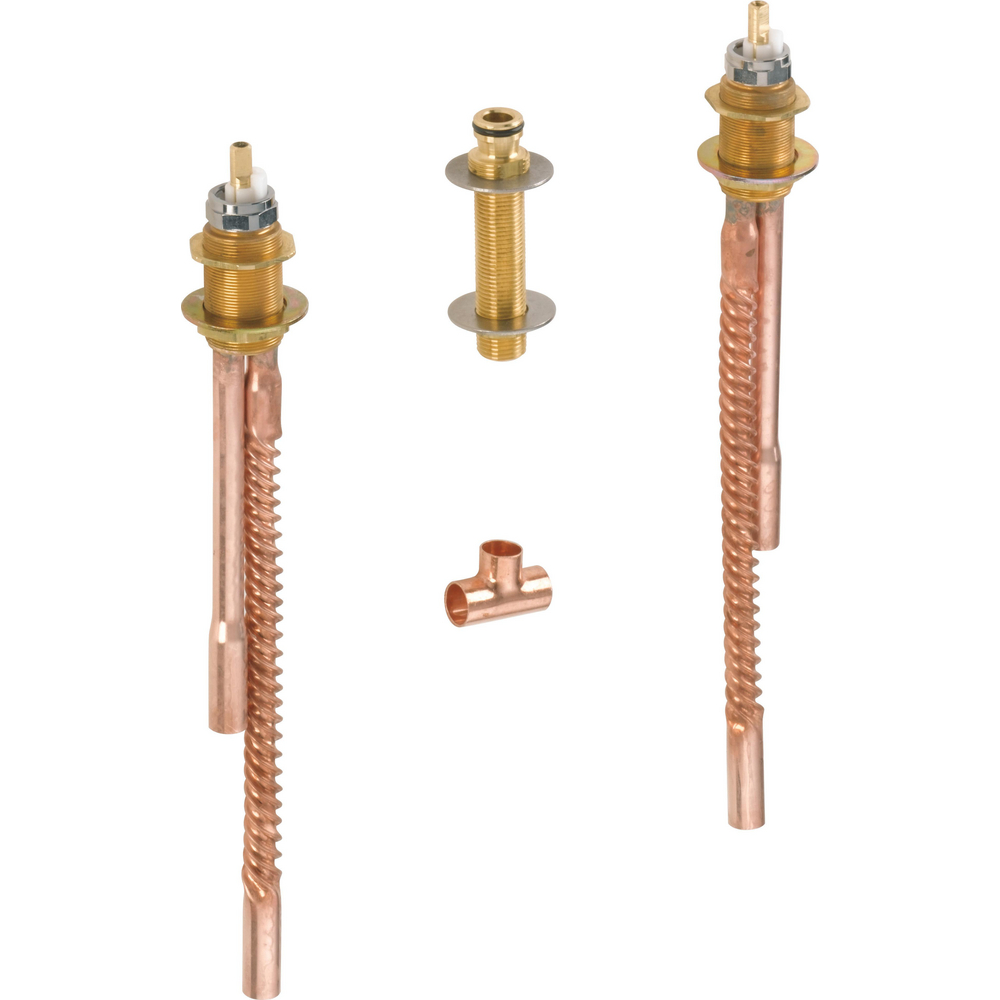

Delta R2700 Traditional Flexible Roman Tub Rough
DELTA
Flexible Roman Tub Rough
MODEL#: R2700
Solid fabricated brass end valves
3-hole flexible deck or ledge mount installation
Backed by Delta Faucet?s Lifetime Limited Warranty
This rough-in kit may be installed prior to choosing the specific trim and finish. Allows for construction or a renovation project to proceed without delays when narrowing down a design style. Trim kit is sold separately and is required to complete the unit. Save time, effort, and money on future renovation updates because there's no need to alter plumbing beneath the deck.
Rough-in kit only
Must purchase trim kit to complete the unit
Solid fabricated brass end valves
Three hole installation
5/8 in. O.D. corrugated copper supply outlet tubes

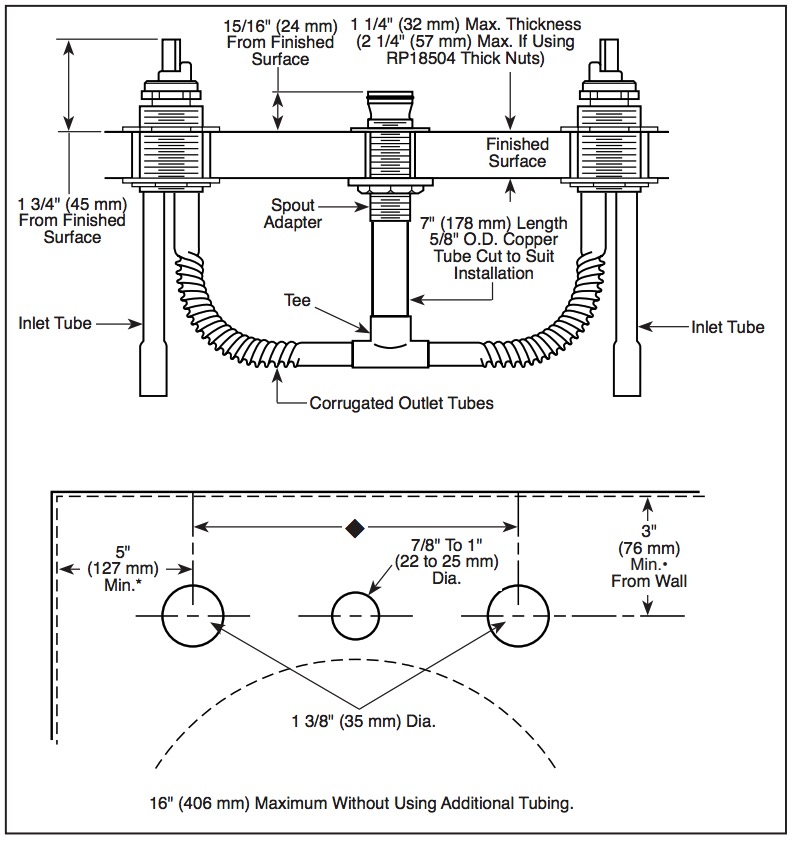

Widespread 16 in. (406 mm) maximum centers without using additional tubing
Flexible deck or ledge mount installation
Hot and cold stems are interchangeable
Temperature and volume controlled with handles
Installation Information
Flow Rate: 18.00 gpm, 68.1 L/min
Fittings Type: Copper
Drain Type: NA
Deck Thickness: 1.25"
Valve Type: Washerless stem cartridge
Over All Height: 13-15/16
Valve Type: Washerless stem cartridge
STANDARD SPECIFICATIONS
Solid fabricated brass end valves.
Three hole installation.
5/8" O.D. corrugated copper supply outlet tubes.
Widespread 16" (406 mm) maximum centers without using additional tubing.
Flexible deck or ledge mount installation.
Control mechanism is a rotating cylinder type with stainless steel plate and 180º rotation.
Hot and cold stems are interchangeable.
Temperature and volume controlled with handles.
Washerless.
All operating parts shall be replaceable from the top.
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
