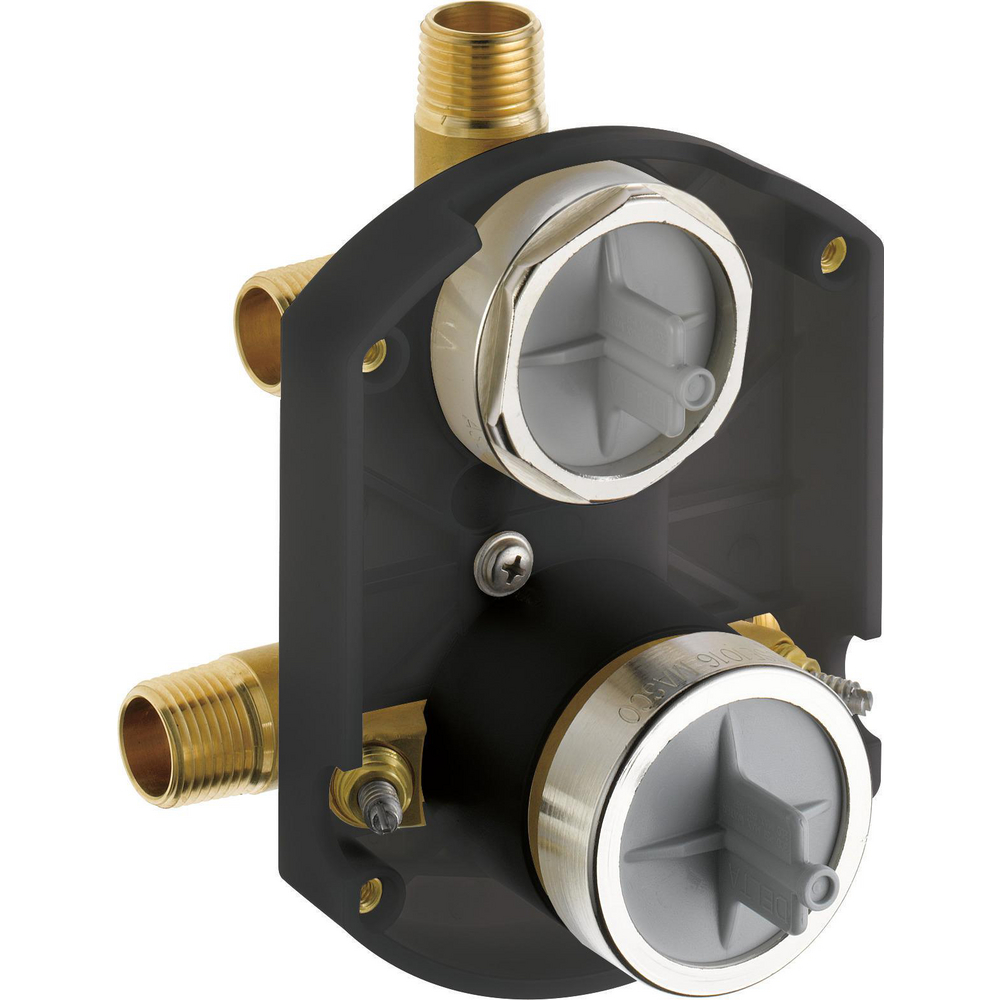

Delta R22000-WS Multichoice Universal With Integrated Diverter Rough
DELTA
MODEL#: R22000-WS
The Delta MultiChoice Integrated Shower Diverter consolidates custom shower design with its consumer-preferred streamlined style eliminating the need for an additional diverter valve. With three popular trim style choices to coordinate with any bathroom décor, it provides you the flexibility to select the type of custom shower functionality you prefer. With the MultiChoice Universal system, you have the freedom to upgrade style and functionality later. And, because there's no need to alter plumbing behind the wall, you save time, effort and money on future renovation updates.
Monitor pressure balance valve keeps water temperature within a safe ±3° F (±1.6° C), helping to protect you from sudden changes in hot or cold water pressure
Rough-in only
One-Piece forged valve body with stops
Back-to-back installation capability
Not recommended for tub installation
WS = With Stops
Plug provided for 3 setting diverter installation
1/2 in. outlets and connections
?UN? indicates Universal type fitting and is 1/2 in. NPT male thread with 1/2 in. C.W.T. female sweat

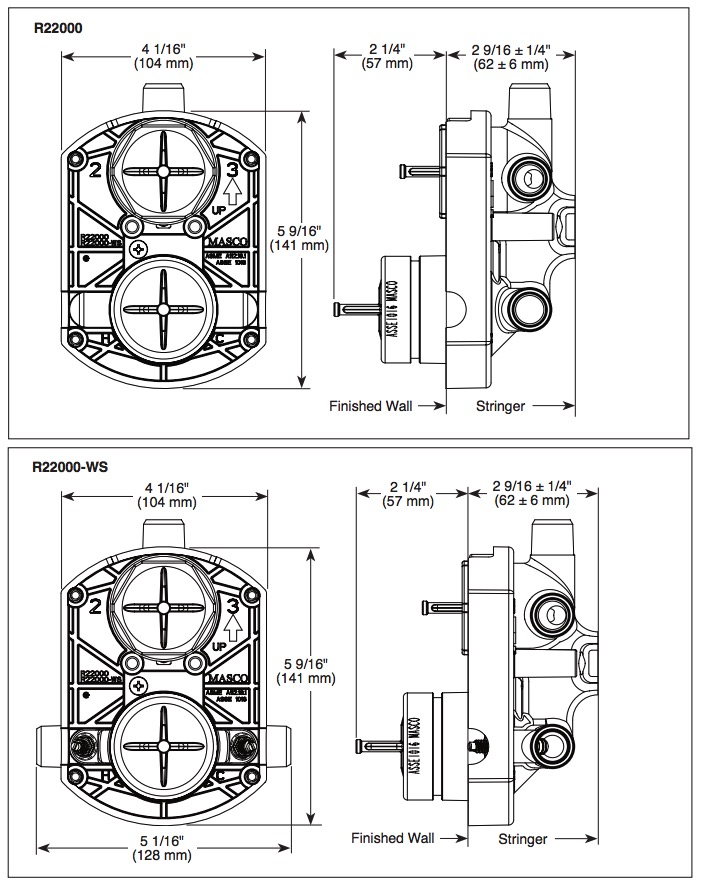

Standard installation accommodates finished wall thickness up to 1-1/8 in.
STANDARD SPECIFICATIONS:
Forged brass body
Back-to-Back installation capabilities
Three port diverter.
Can be tested with air (200 PSI) or water (300 PSI) without valve using supplied test cap
Accepts Delta (3) three or (6) six function diverter cartridges plus all MultiChoice® cartridges.
Plug provided for 3 setting diverter installation.
Cartridges ship with trim
Non-shared diverter cartridges also available (RP71717 and RP71718)
1/2" outlets and connections
Universal type fitting and is 1/2" NPT male thread with 1/2" C.W.T. female sweat
Sweat onto 1/2" C.W.T. or accepts 1/2" iron pipe, PEX or CPVC adapters
Standard installation accommodates finished wall thickness up to 1 1/8"
Thick wall installation kits can be ordered to allow for up to 2 1/8" finish wall thickness (order by valve type).
14 Series Monitor® with Diverter Trim Extension Kit available (RP90542▲)
17 Series Monitor® with Diverter Trim Extension Kit available (RP90543▲)
TempAssure® Thermostatic with Diverter Extension Kit available (RP90544▲)
Note: No tub outlet
Note: Should use proper fitting with each type (copper tubing, iron pipe, and pex fitting)
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
