Delta R10000-UNWSHF MultiChoice Universal Rough Shower Only
DELTA

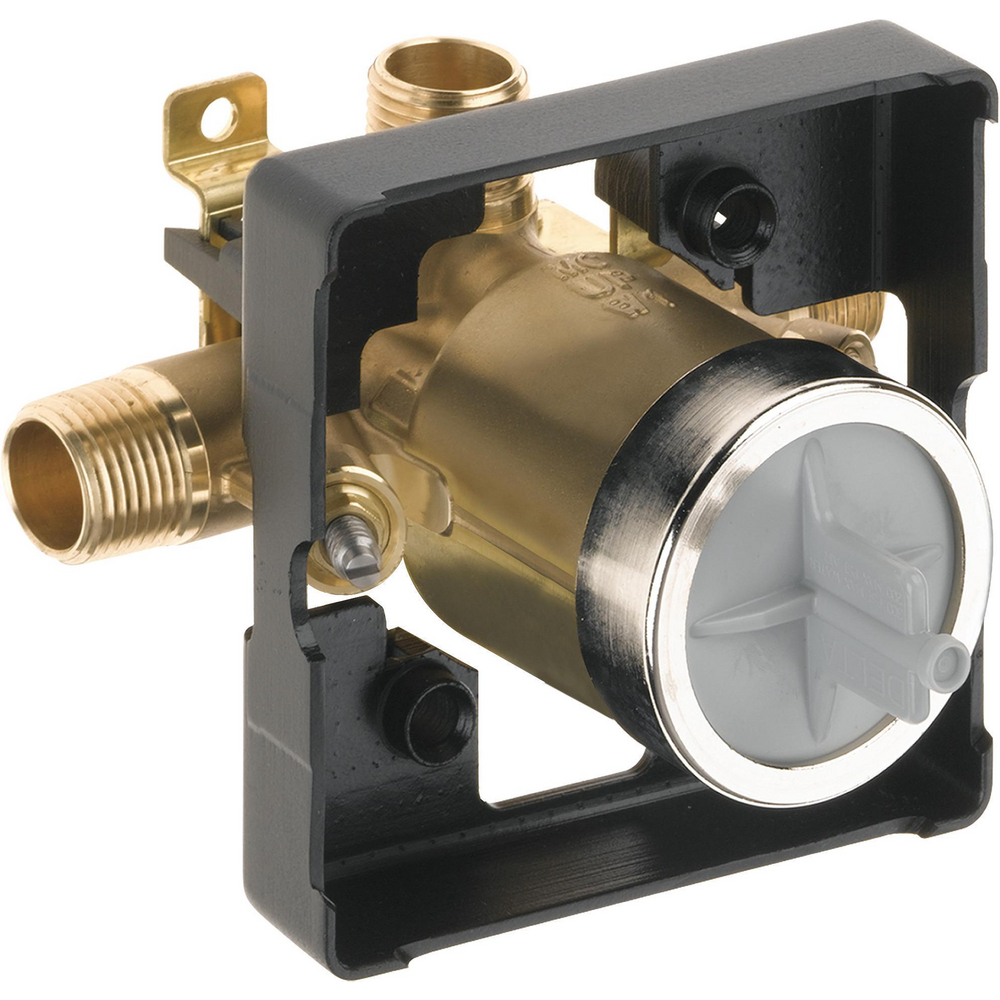

MultiChoice® Universal Rough - Shower Only
MODEL#: R10000-UNWSHF
Included mounting bracket helps prevent rocking
Includes a heat resistant pressure test cap
Easily snaps into place
MultiChoice Universal valve body only - Accepts single, dual, or dual thermostatic cartridge
High flow for use with shower only models
HF rough valves feature blocked tub port - no additional plug needed when used in shower only application
Back-to-back capability, WS= With Stops

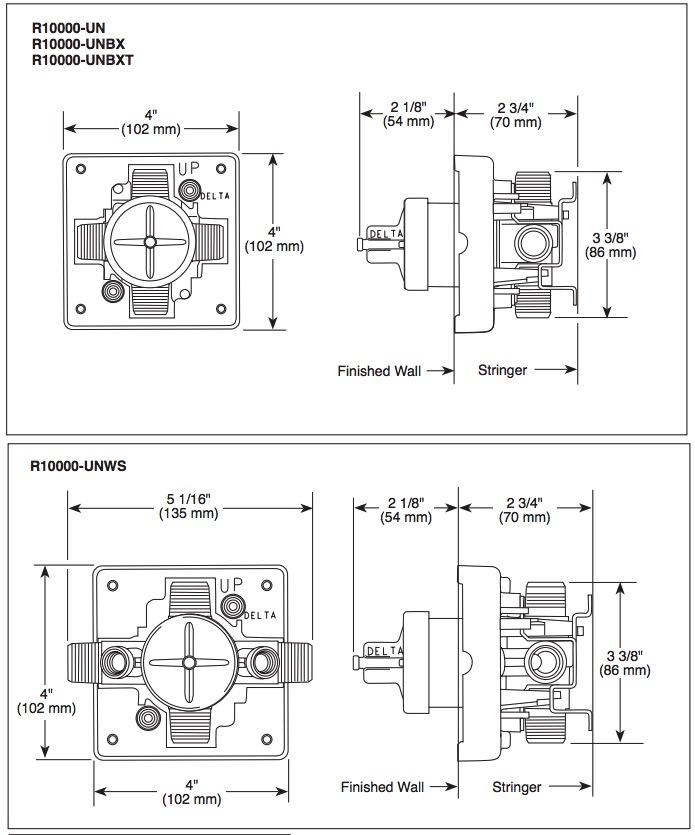

Installation Information
Fittings Type: Universal fittings
Drain Type: NA
Over All Height: 4
STANDARD SPECIFICATIONS:
Forged brass body.
Back-to-Back installation capabilities.
Can be tested with air (200 PSI) or water (300 PSI) without valve using supplied test cap.
Square plasterguard allows for right angle cuts.
Thin wall mounting.
For use with MultiChoice® Universal single or dual function trim. Cartridge ships with trim.
1/2" outlets and connections.
Note: No tub outlet in HF model.
Note: Should use proper fitting with each type (copper tubing, iron pipe, and pex fitting).
Note: Should use proper tooling with crimping pex fitting and cold expansion pex models.
Note: IP indicates female 1/2" threaded connections.
Note: UN indicates Universal type fitting and is 1/2" NPT male thread with 1/2" C.W.T. female sweat.
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
