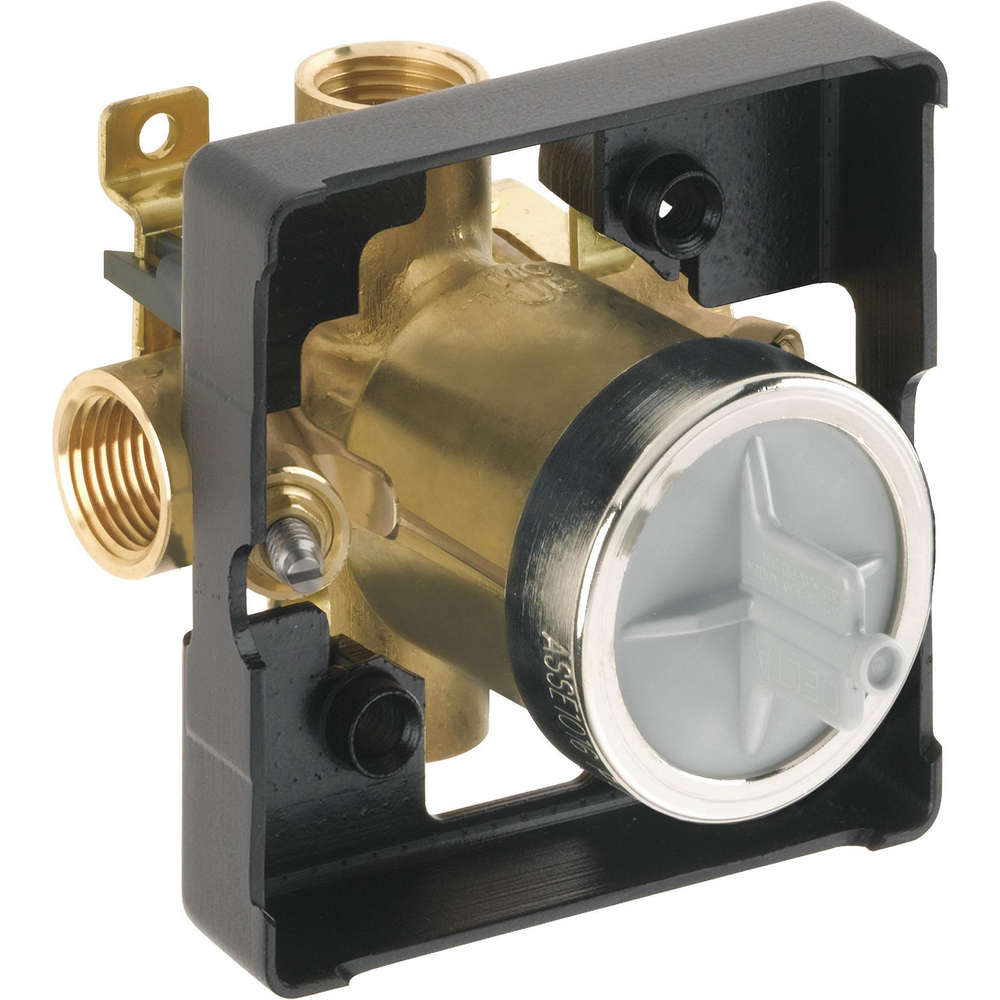

Delta R10000-IPWS Traditional Universal Tub and Shower Valve Body
DELTA
MultiChoice® Universal Tub and Shower Valve Body
MODEL#: R10000-IPWS
MultiChoice Universal valve body only
Accepts single, dual, or dual thermostatic cartridge
Cartridge ships with trim
Back-to-back capability, WS= With Stops

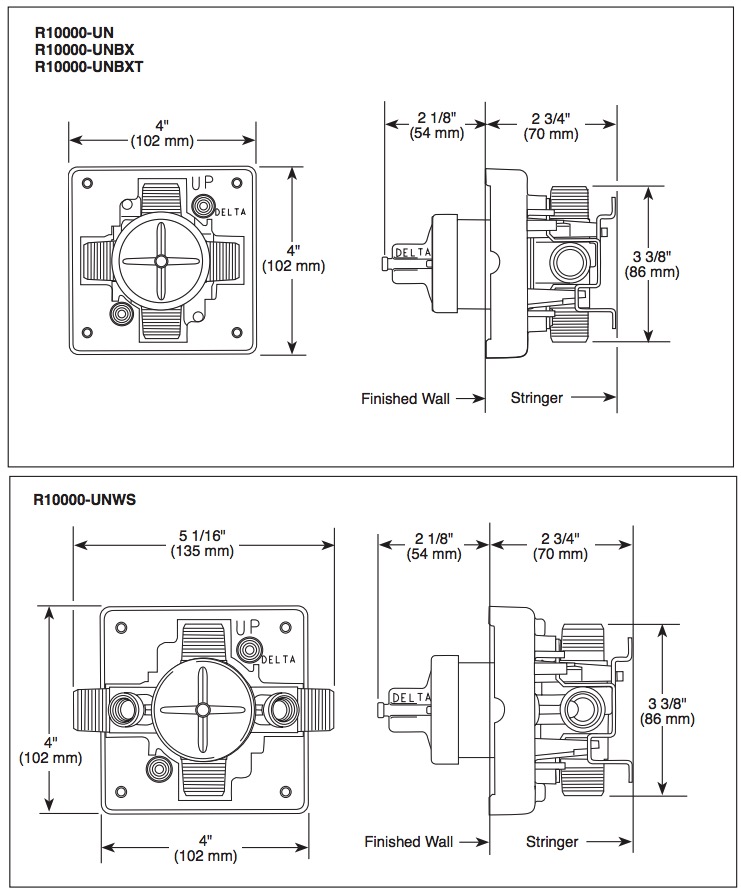

Installation Information
Valve Type: Valve body only
Over All Height: 4
STANDARD SPECIFICATIONS:
Forged brass body.
Back-to-Back installation capabilities.
Can be tested with air (200 PSI) or water (300 PSI) without valve using supplied test cap.
Square plasterguard allows for right angle cuts.
Thin wall mounting.
For use with MultiChoice® Universal single or dual function trim. Cartridge ships with trim.
1/2" outlets and connections.
Note: No tub outlet in HF model.
Note: Should use proper fitting with each type (copper tubing, iron pipe, and pex fitting).
Note: Should use proper tooling with crimping pex fitting and cold expansion pex models.
Note: IP indicates female 1/2" threaded connections.
Note: UN indicates Universal type fitting and is 1/2" NPT male thread with 1/2" C.W.T. female sweat.
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
