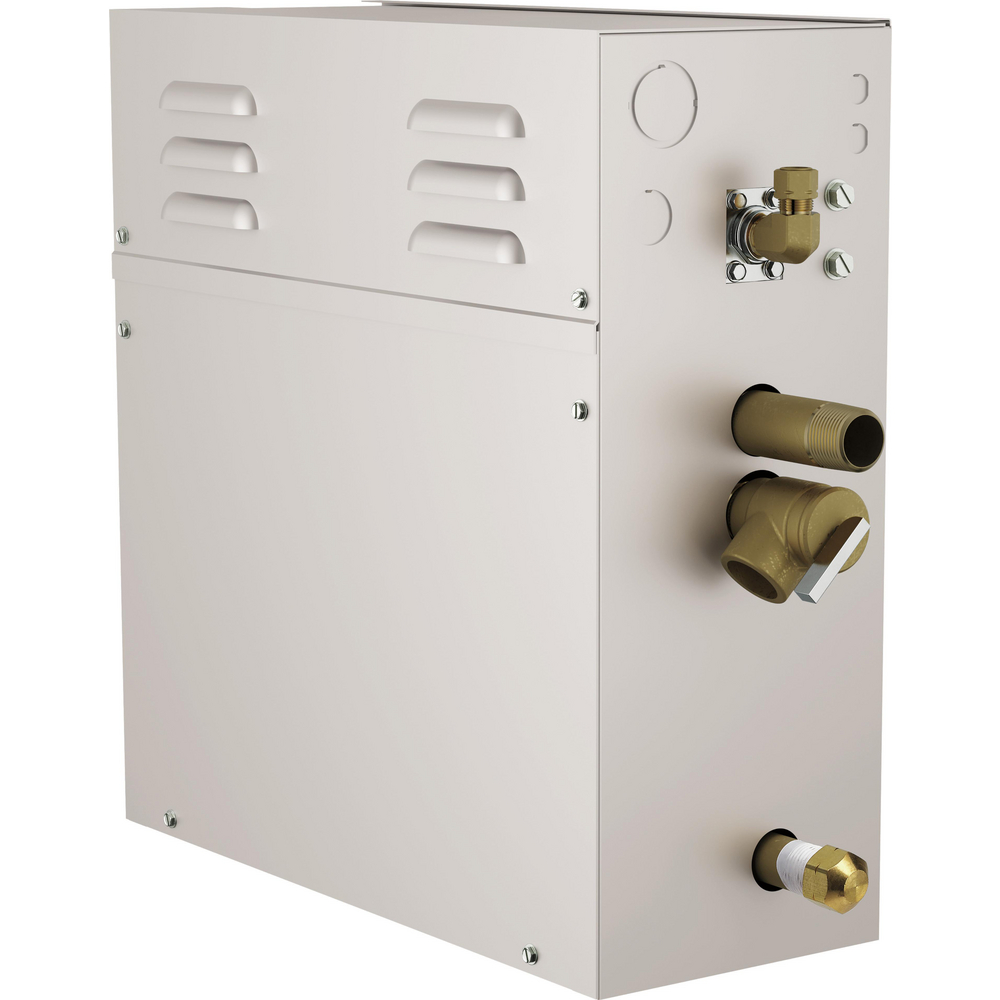

Delta EP103323 Steam Generator 4kW 240V
SIMPLESTEAM
Steam Generator 4kW 240v
MODEL#: EP103323
Installation Information
Over All Height: 15-1/2
MaxShowerVolume: 75
Wireless Communication: NA
Generator Included: Yes
Electrical Phases: 1
Breaker Capacity: 25
Frequency: 60
Voltage: 240
Wattage: 4000
Killowatts: 4kw
Steam Product: Yes
Valve Type: NA

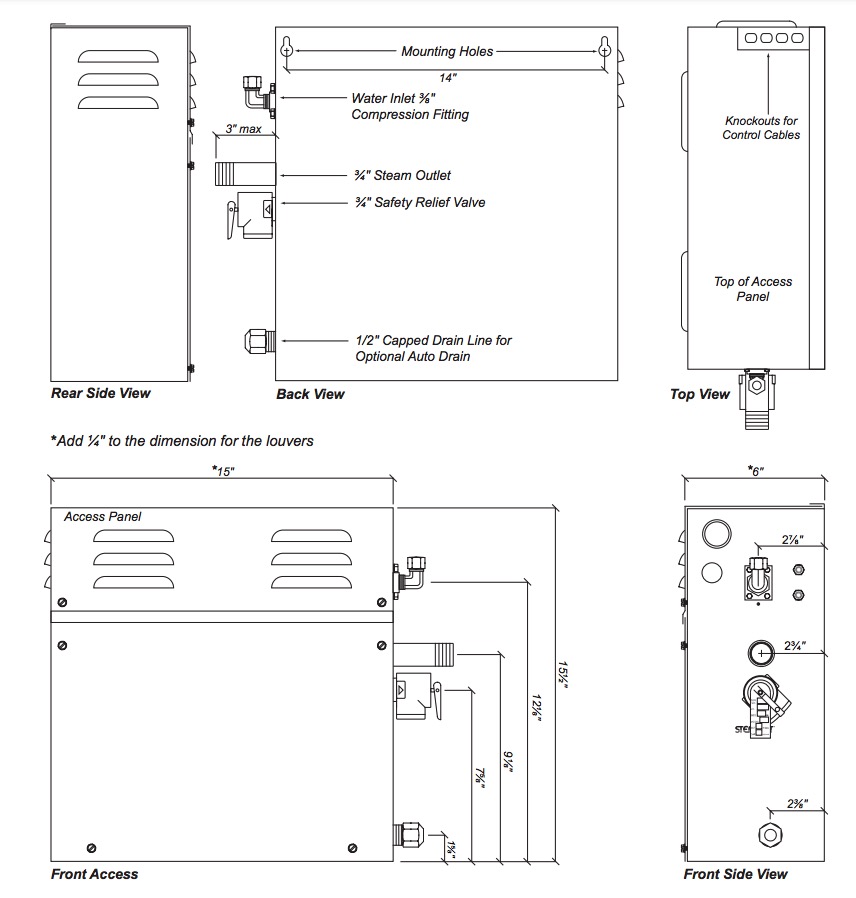

STANDARD SPECIFICATIONS:
Water Supply - 3/8" Compression Fitting, 120 PSI max
Steam Outlet - 3/4" Brass NPT male thread
Pressure Relief Valve - 3/4" NPT female thread
Drain Outlet - Capped 1/2" Brass NPT male thread
Supplied with a 35' control cord
Generator shipped weight - 30 lbs
For optimum performance, the steam generator should be mounted as close as possible to the stream room. If needed, the steam pipe may be up to 50' long.
Steam Generators should be accessible for service.
Steam generators must NOT be installed outdoors, in moist, humid areas, in areas prone to freezing, or in areas where temperatures can exceed 104°F.
Steamhead to be mounted 12" to 18" above floor or 6" above rim of tub and as far from the seating area as possible. Do not locate below the user control.
Service Access - Minimum 21" L x 18" W x 22" H (28" L with Auto Drain).
Required Equipment - EP103350 control and steam head
Required Electrical Service - Dedicated circuit required:
See Specification Chart for proper electrical requirements.
