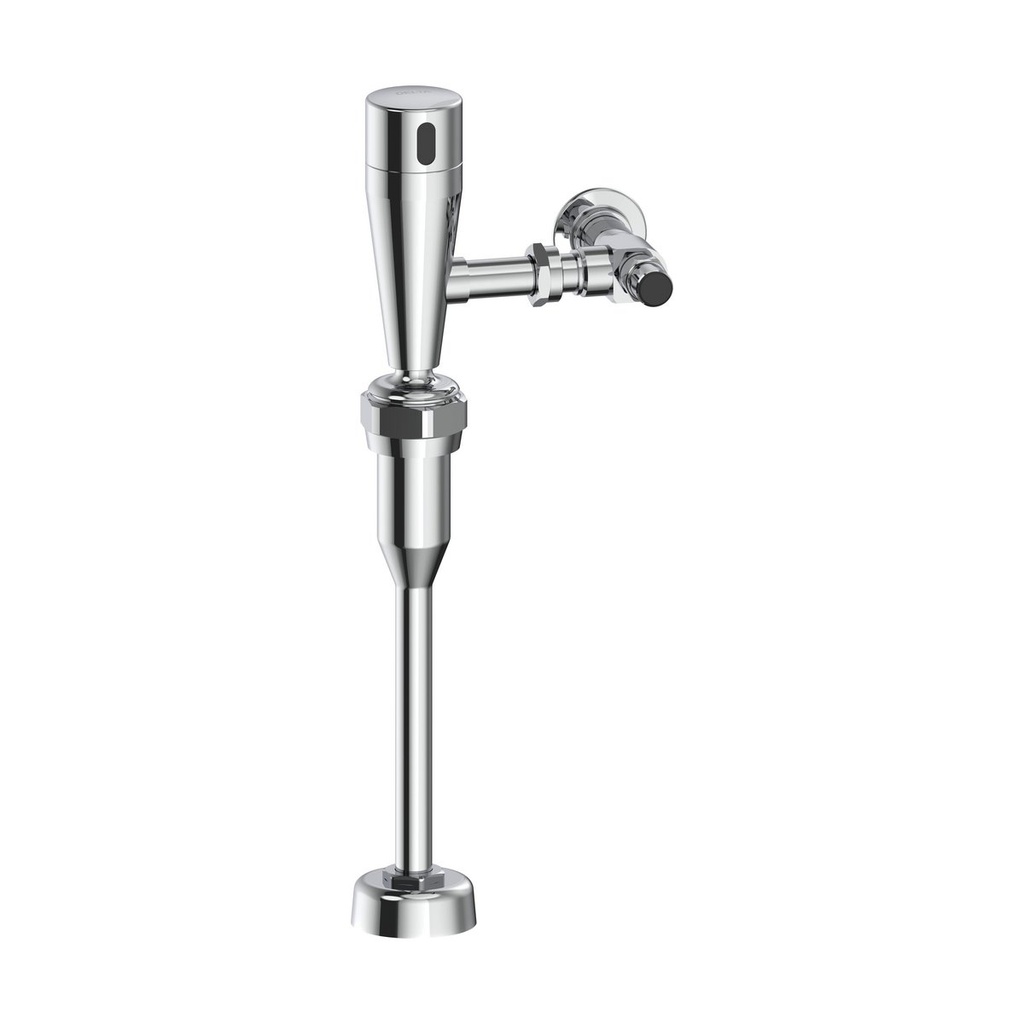

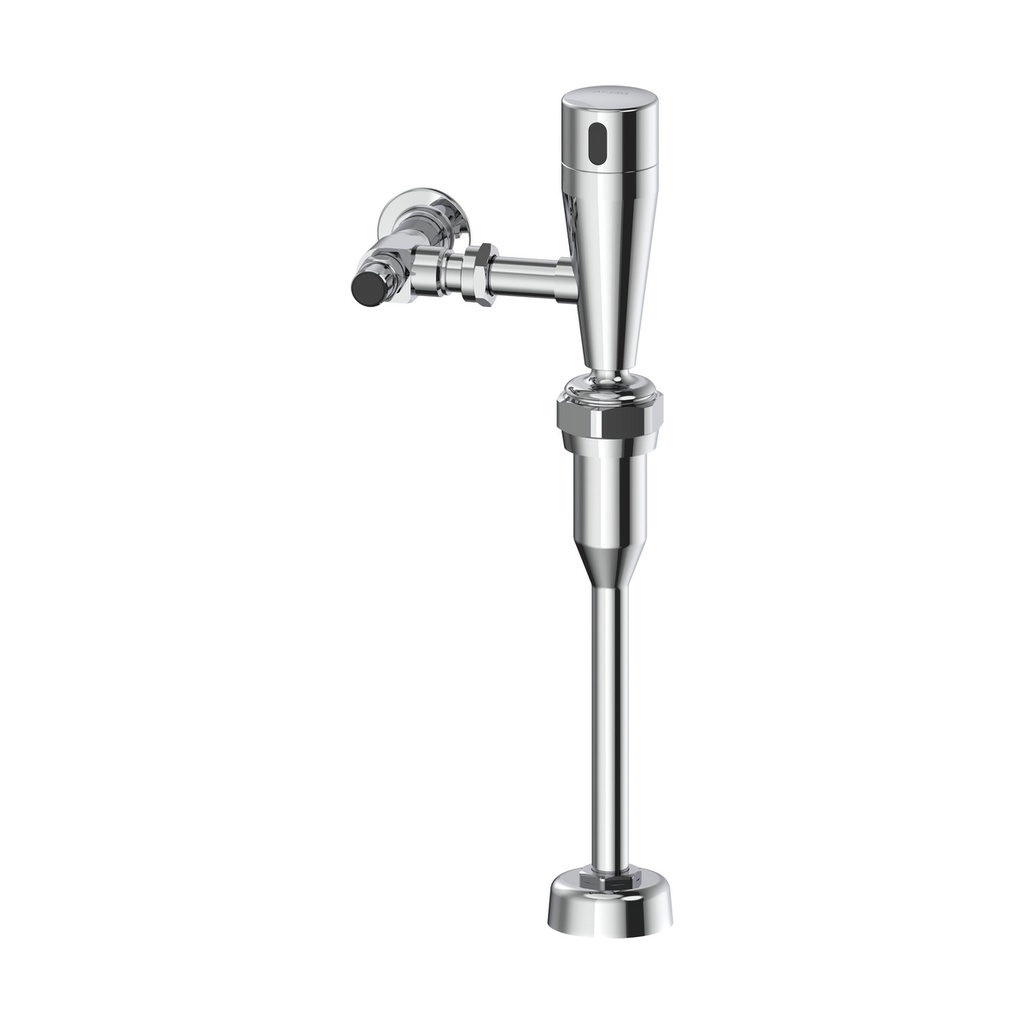

Delta DEMD-86515 Commercial Electronic Washdown Urinal Valve
COMMERCIAL
Electronic Washdown Urinal Valve with Vacuum Breaker
model#: DEMD-86515
Electronic flush valve for 3/4" IP spud washdown urinals
Polished chrome-plated finish
Solid brass construction
Vacuum breaker
Range field adjustable from 12" to 23"
Low battery level indicator
Factory set flow rate, field adjustable ONLY with remote control
Optional remote control sold separately (060967A)
Installation Information
Valve Type: Electronic
Operation: Electronic
Installation: Exposed
Fixture Type: 3/4" top spud
Flush Volume: 0.5 gpf (1.9 Lpf)
Valve Type: Electronic
SPECIFICATION:

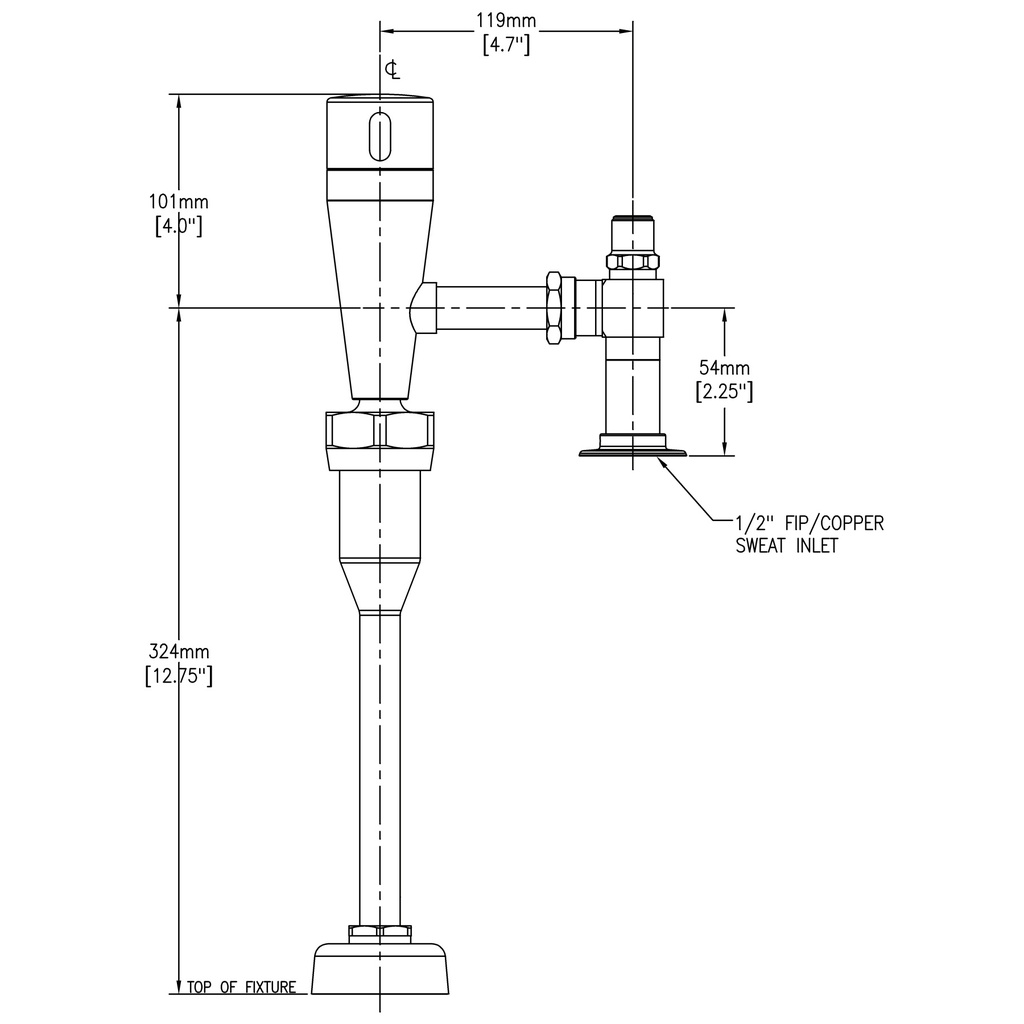

INLETS - 1/2" FIP/Copper
Exposed infrared electronic valve for 3/4" IP spud washdown urinals with vacuum breaker assembly in the outlet tube, eliminates requirement for fixture to provide sufficient air gap protection
Exposed infrared
Solid brass construction
1/2" universal FIP/copper sweat inlet adaptor supplied
Union inlet stop, inlet cover tube, brass wall flange with set screw
Outlet tube with spud flange and coupling nut
Chrome Finish
Internally mounted 9V battery (supplied)
Low battery level indicator (constant blinking of red light when user in range)
24-hour flush, factory set off
Sensing range factory set at 20" (508 mm)
Range field adjustable from 12" to 23" (305-584 mm) (manually or with
Optional Remote Control # 060967A)
Washdown volumes factory set at 0.5 GPF (1.9 litres per flush)
Volume field adjustable from 0.125 to 1.0 gpf (0.5 to 3.8 litres per flush)
ONLY WITH THE OPTIONAL REMOTE CONTROL # 060967A
COMPLIES WITH:
IAPMO listed to ASSE 1037/ASME A112.1037/CSA B125.37
ADA Compliant to meet Handicapped Accessibility Standard ICC/ ANSI
A117.1 of less than 5 lbs. operating force.
(Contact Delta Representative for State and/or Local Approvals)
