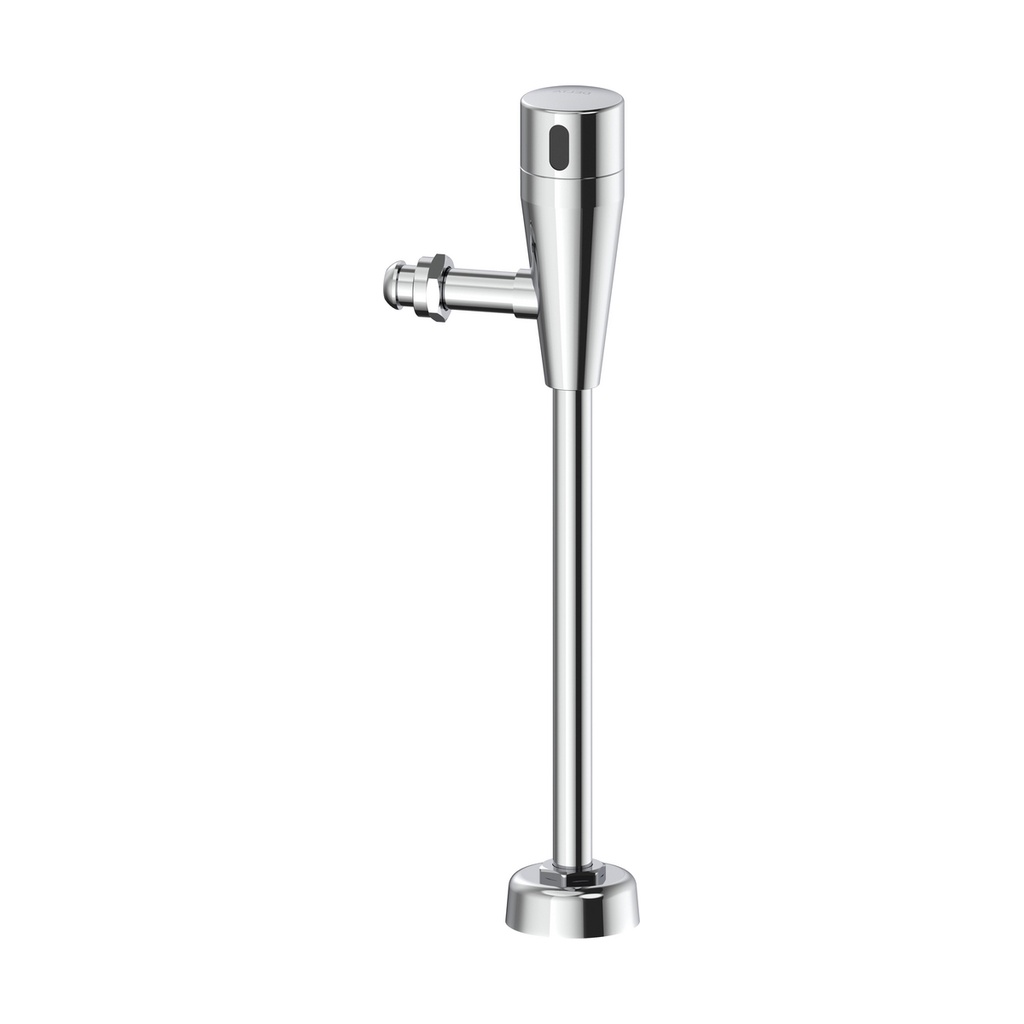

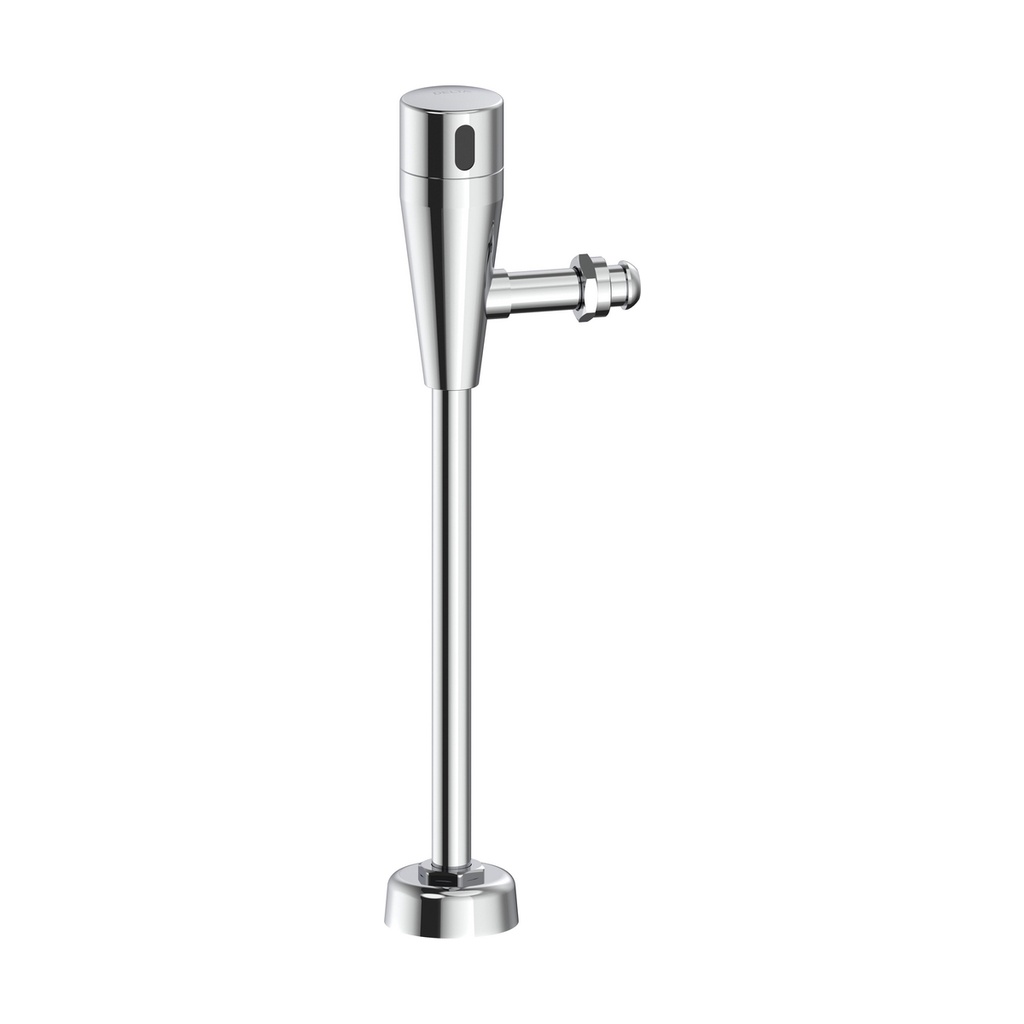

Delta DEMD-86405 Commercial Retrofit Electronic Washdown Urinal Valve
COMMERCIAL
Retrofit Electronic Washdown Urinal Valve without Vacuum Breaker
model#: DEMD-86405
Kit to convert Delta 86T505 manual washdown urinal valve to electronic
Polished chrome-plated finish
Solid brass construction
Less vacuum breaker
Range field adjustable from 12" to 23", factory set at 20"
Low battery level indicator
Optional remote control sold separately (060967A)
Installation Warning: Model shown must be installed on a fixture providing sufficient air gap protection against backflow
Installation Information
Valve Type: Electronic
Operation: Electronic
Installation: Exposed
Fixture Type: 3/4" top spud
Flush Volume: 0.5 gpf (1.9 Lpf)
Valve Type: Electronic
SPECIFICATION:
Kit to convert Delta 86T505 manual washdown urinal valve to electronic
Exposed infrared electronic valve
Solid brass construction

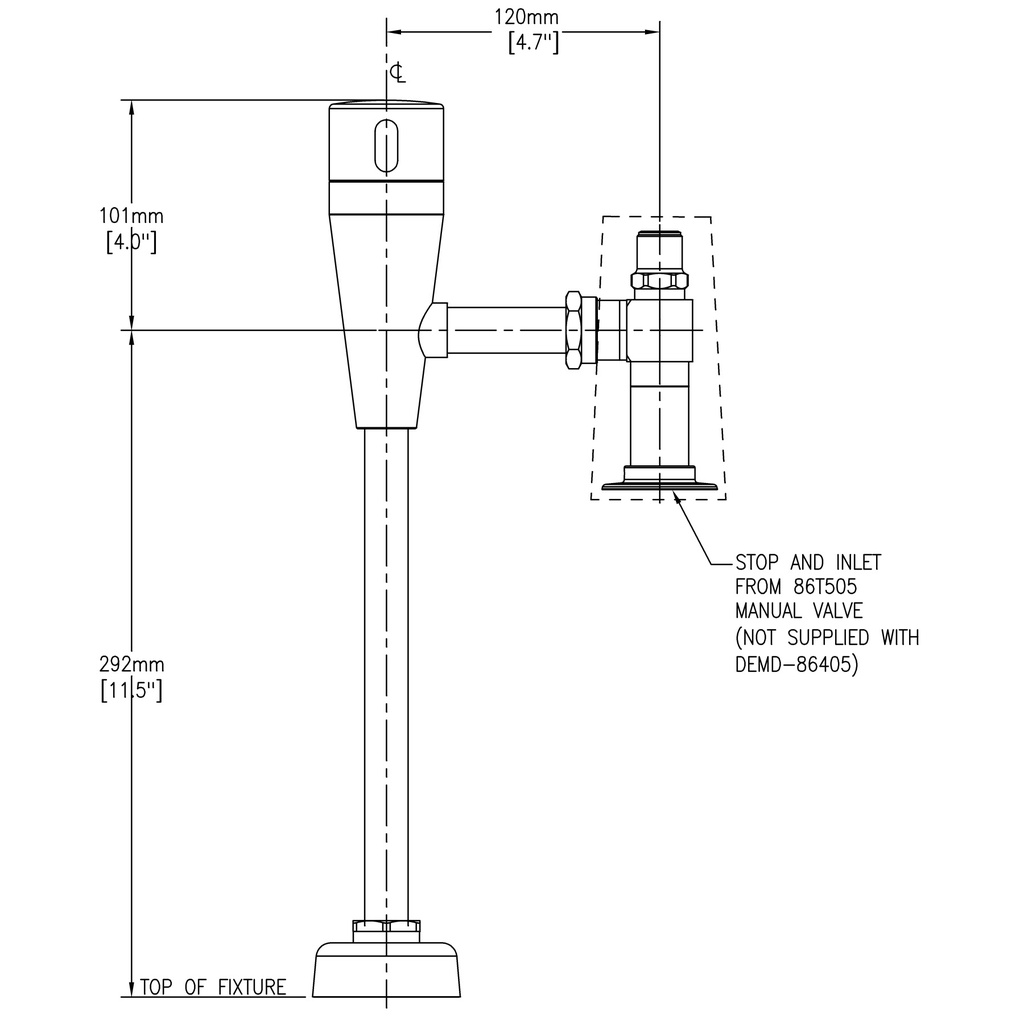

Attaches to union inlet stop from the manual 86T505 valve
Outlet tube with spud flange and coupling nut
Chrome Finish
Internally mounted 9V battery (supplied)
Low battery level indicator (constant blinking of red light when user in range)
24-hour flush, factory set off
Sensing range factory set at 20" (508 mm)
Range field adjustable from 12" to 23" (305-584 mm) (manually or with Optional Remote Control # 060967A)
Washdown volumes factory set at 0.5 GPF (1.9 litres per flush)
Volume field adjustable from 0.125 to 1.0 gpf (0.5 to 3.8 litres per flush)
ONLY WITH THE OPTIONAL REMOTE CONTROL # 060967A
COMPLIES WITH:
IAPMO listed to ASSE 1037/ASME A112.1037/CSA B125.37
ADA Compliant to meet Handicapped Accessibility Standard ICC/ ANSI
A117.1 of less than 5 lbs. operating force.
WARNING: This model must be installed on fixtures providing sufficient air gap protection against backflow.
(Contact Delta Representative for State and/or Local Approvals)
