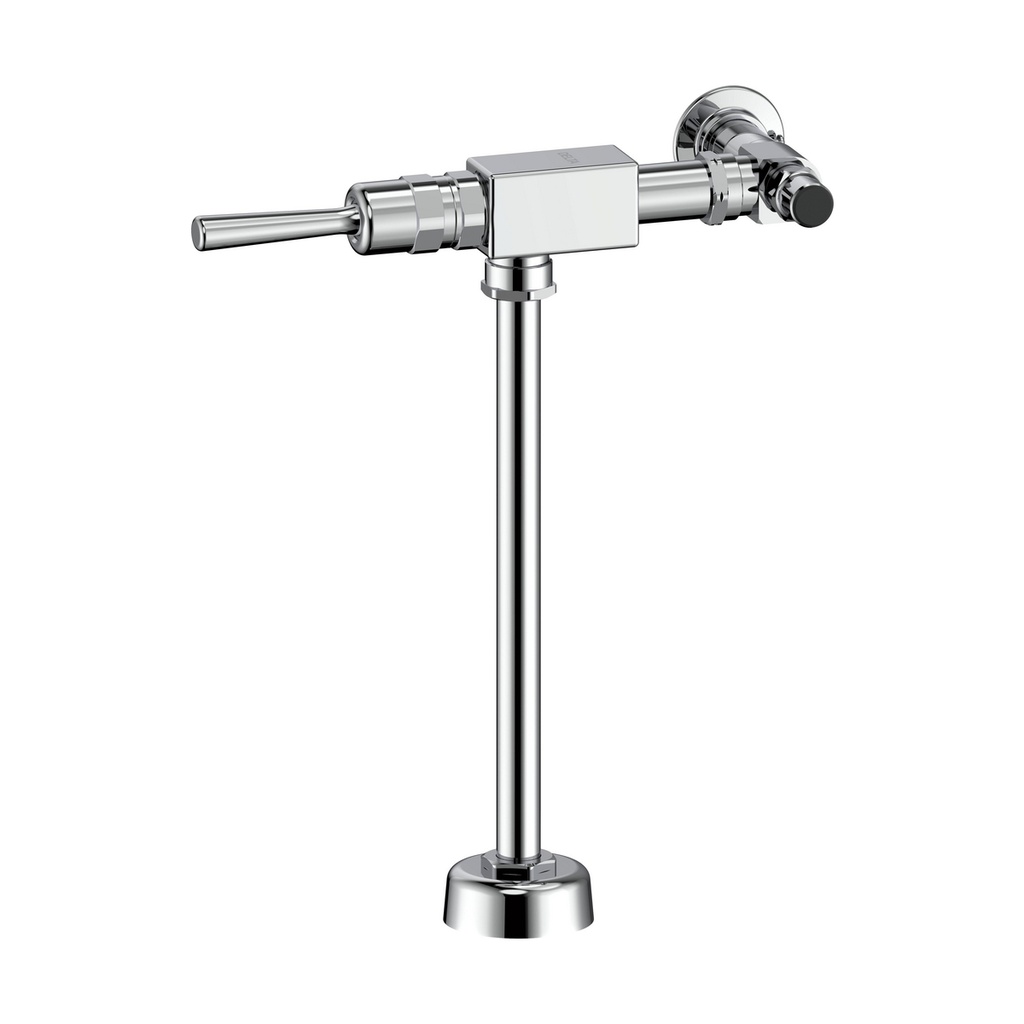

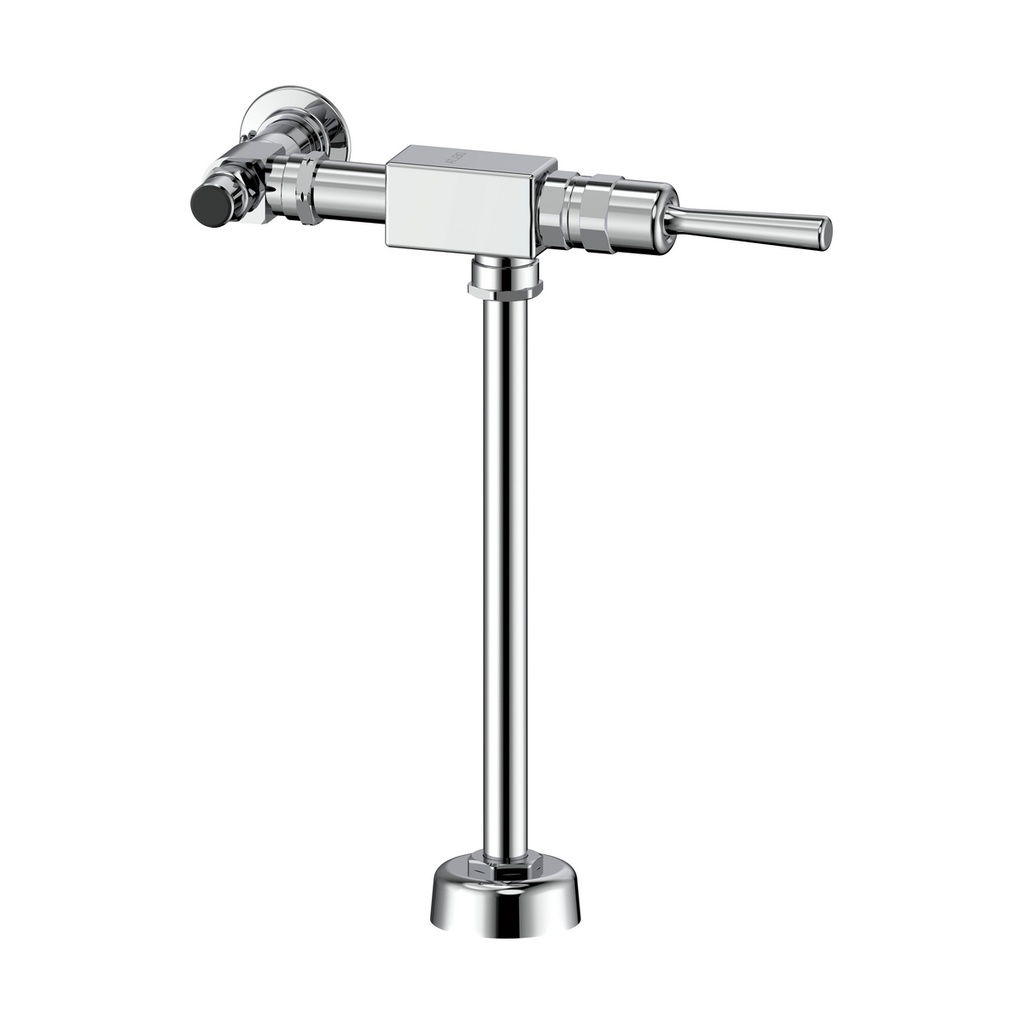

Delta 86T505 Commercial Manual Exposed Metering Urinal Flush Valve

Delta 86T505 Commercial Manual Exposed Metering Urinal Flush Valve

COMMERCIAL
Manual Exposed Metering Urinal Flush Valve
model#: 86T505

Manual metering flush valve for 3/4" top spud washdown urinals
Polished chrome-plated finish
Solid brass construction
Less vacuum breaker
Metering, slow close, ADA compliant brass osciillating lever handle
Delta slow close cartridge, factory set for 0.5 gpf (1.9 lpf) flush
1/2" universal FIP/copper sweat inlet

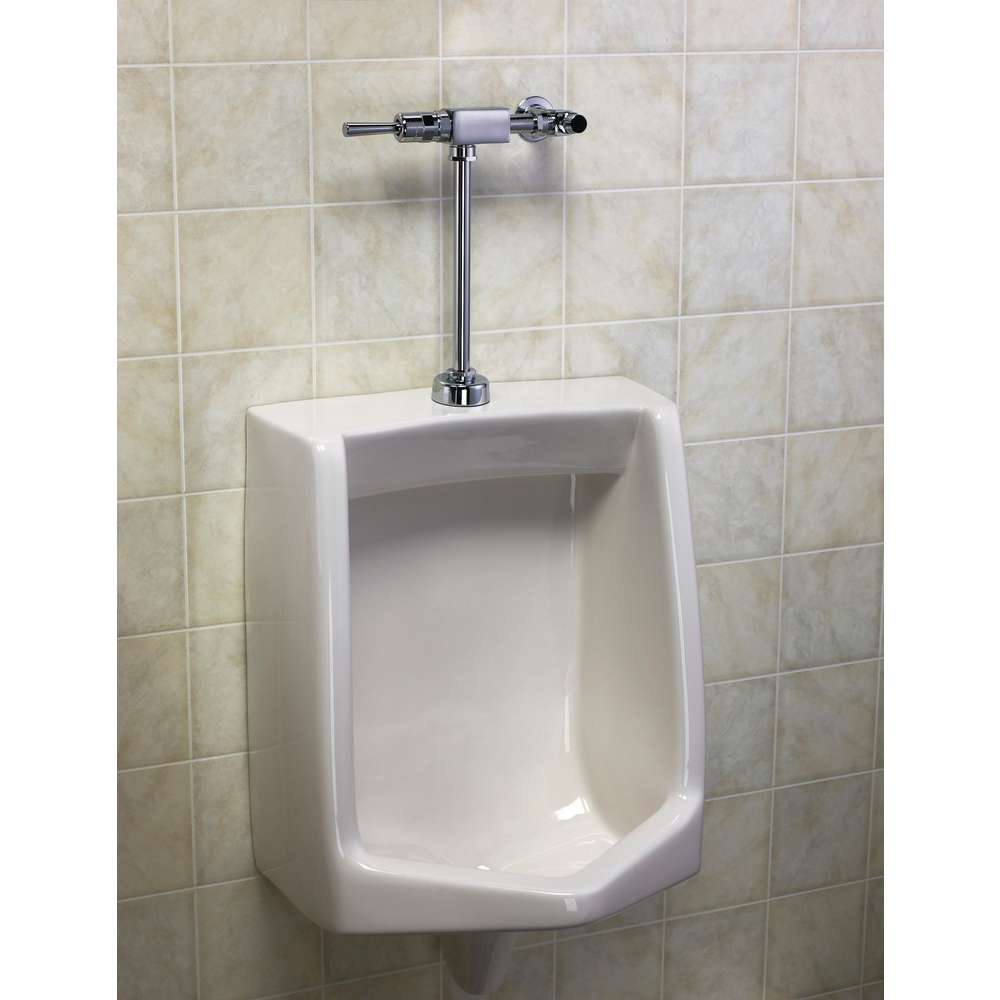

Installation Warning: Model shown must be installed on a fixture providing sufficient air gap protection against backflow
See installation instructions for details

Installation Information
Number of Handles: single handle
Operation: Manual
Installation: Exposed
Fixture Type: 3/4" top spud
Flush Volume: 0.5 gpf (1.9 Lpf)
Valve Type: NA

SPECIFICATION:
Heavy Duty Cast Brass valve for 3/4" IP spud urinal
Polished chrome plated finish
Delta® slow close cartridge, factory set for 0.5 gallon (1.9 litres) flush
1/2" universal FIP/copper sweat inlet
For Washdown Urinals
Chrome plated union inlet stop
Back inlet supply
Brass oscillating lever handle,coupling nuts, inlet cover tube
Set screw wall flange
Spud flange and spud nut
Outlet tube

COMPLIES WITH:
IAPMO listed to ASSE 1037/ASME A112.1037/CSA B125.37
Lever Handle Indicates compliance to ICC/ANSI A117.1
(Contact Delta Representative for State and/or Local Approvals)
