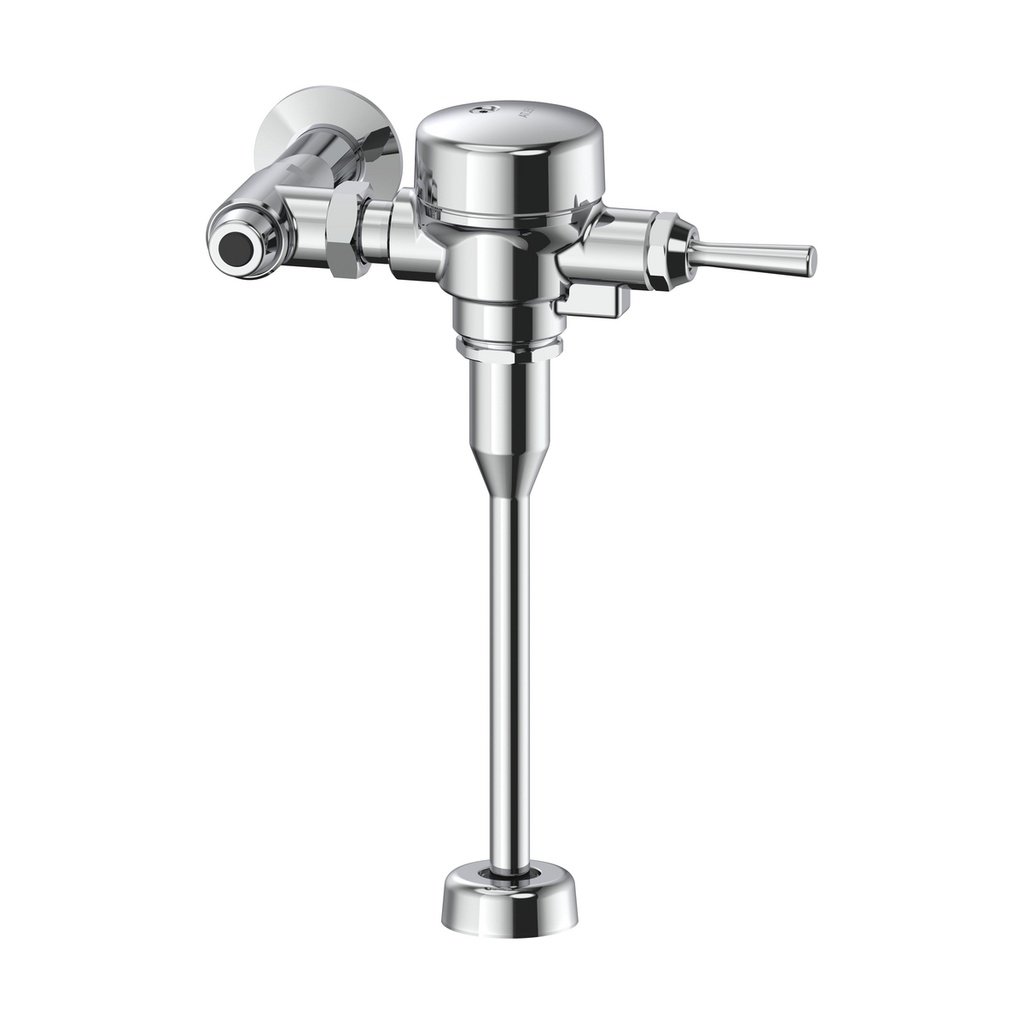

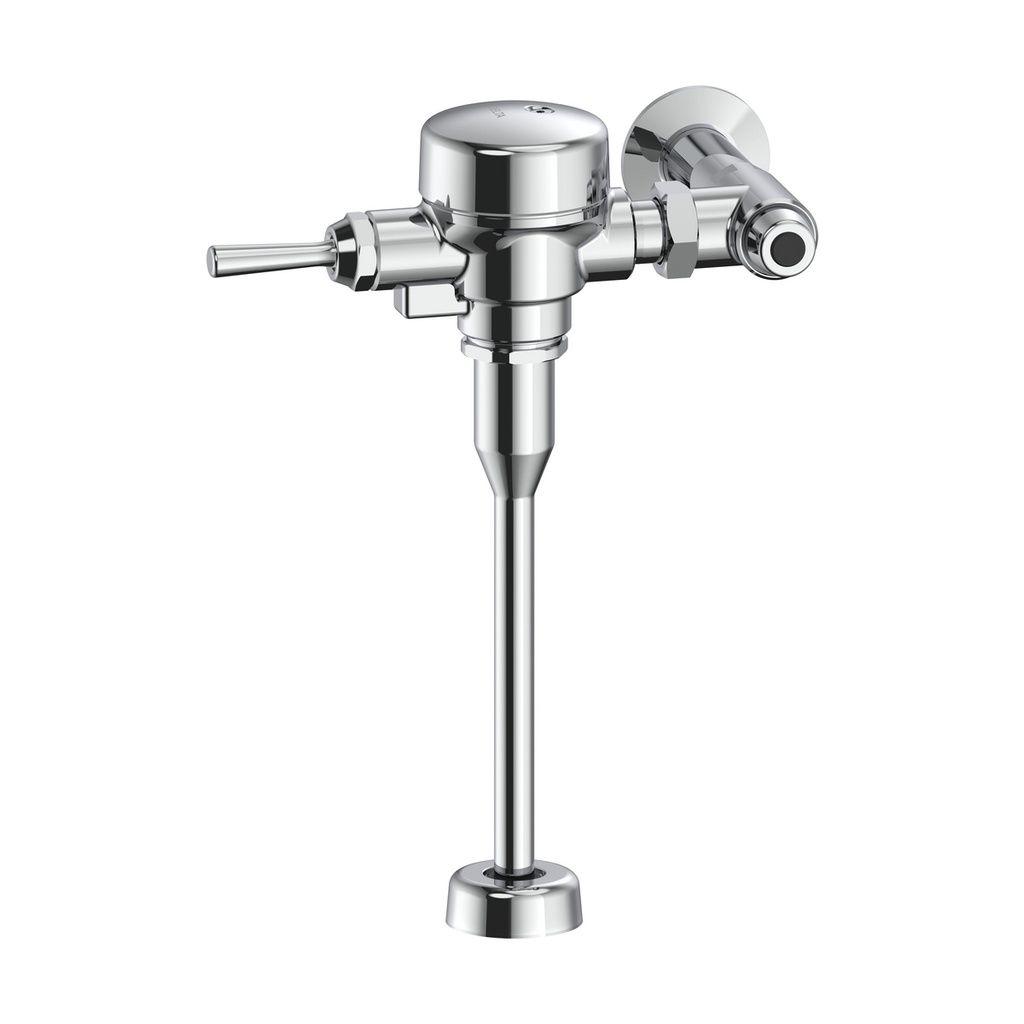

Delta 81T231-19 3/4" Manual Exposed Urinal Flush Valve
Manual Exposed Urinal Flush Valve
model#: 81T231-19
Manual flush valve for 3/4" top spud flushing urinal with sensor on valve - maximum 13" height
Polished chrome-plated
Right or left-hand supply installation
ADA compliant lever handle
Teck chloramine resistant diaphragm for smooth operation
Vacuum breaker
1" FIP/ 3/4" Copper sweat inlet
Fixed flush volume 0.5 gpf (1.9 lpf) - not field adjustable
EPA WaterSense listed
Installation Information
Operation: Manual
Installation: Exposed
Fixture Type: 3/4" top spud
Flush Volume: 0.5 gpf (1.9 Lpf)
Valve Type: NA
Features
Quiet action, chloramine resistant diaphragm
Right or left-hand supply installation
Renewable seat
Vacuum breaker
Polished chrome-plated finish

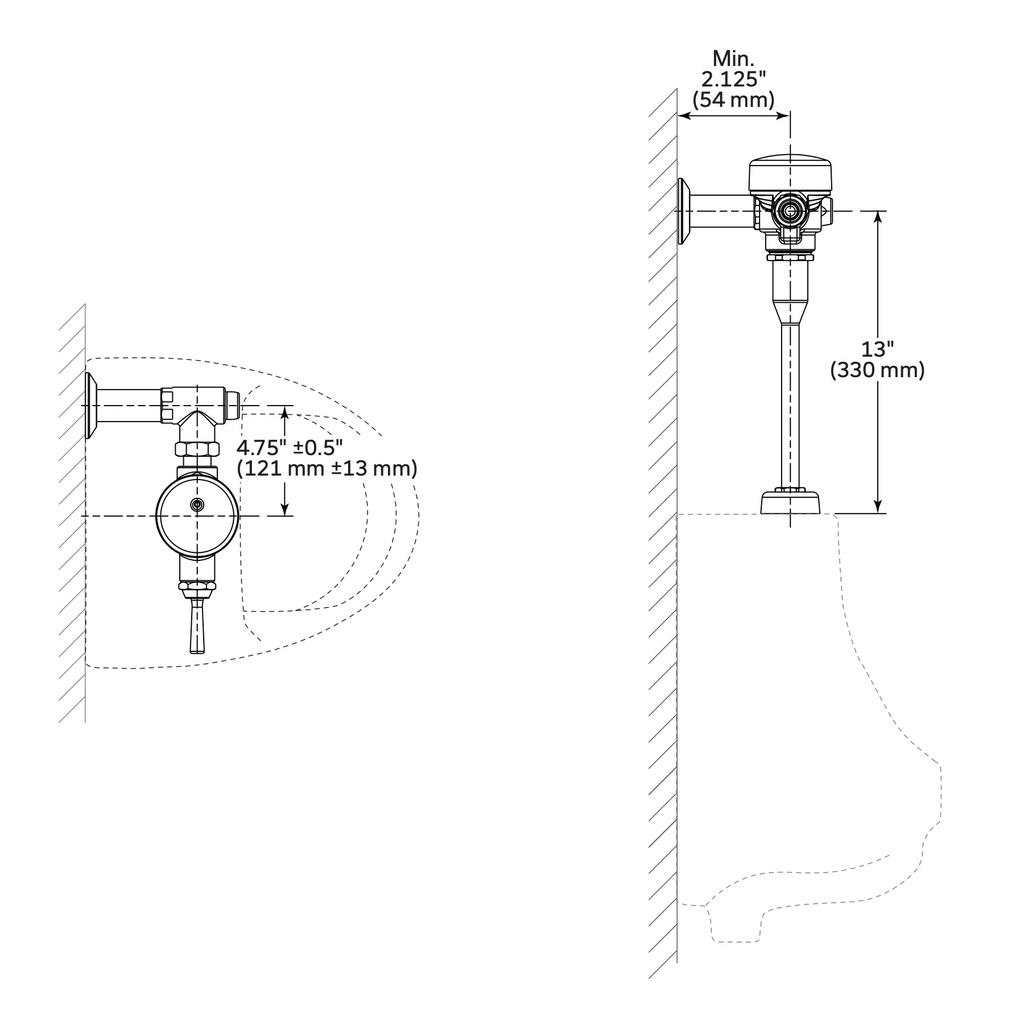

Maximum 13.0" (330 mm) from centerline of valve inlet to top of urinal
1.0" (25 mm) FIP / 0.75" (19 mm) Copper Sweat inlet adaptor, angle check stop with protecting cap
Adjustable flush valve tail
Vandal resistant cover screw
ADA compliant metal oscillating handle actuator with “non hold open” feature for enhanced accessibility and precise control
Cover tube, stainless steel wall flange, spud flange, spud nut, and 13.0" (330 mm) outlet tube
Water conserving fixed, non-adjustable flush volume, factory set to 0.5 gpf (1.9 Lpf) for efficient water usage
Adjustable 4.75" ±0.5" (121 mm ±13 mm) inlet/valve outlet centers
Optional Accessories
060115A - 0.75" (19 mm) Diameter Split Ring Hanger
061428A - Standard left-hand thread tail 1.0" (25 mm) extension
061429A - Standard left-hand thread tail 2.0" (51 mm) extension
Operation
Recommended water supply:
Minimum flowing pressure – 25 psi (172 kPa)
Minimum flow rate – 8 gpm (30 L/min)
Complies With
ASSE 1037/ASME A112.1037/ CSA B125.37
ICC / ANSI A117.1
EPA WaterSense listed
