Delta 5P-EST04-BL SimpleSteam Kit 4kW Matte Black
SIMPLESTEAM KIT
SimpleSteam Kit - 4kW
MODEL#: 5P-EST04-BL
Finish: Matte Black
Simple to order and simple to use, the SimpleSteam Kit is simple for a reason: so you can enjoy the benefits of at-home steam whenever you want it. Steam can be more than a relaxing escape. Discover how the Delta Steam Systems can improve your overall wellbeing.
Plus, conserve water and energy without compromising your experience'an average 20-minute steam shower uses less than one gallon of water. Enjoy your steam with peace of mind; the SimpleSteam generator is covered by our Lifetime Limited Warranty, and our electronic parts are covered for up to two years.

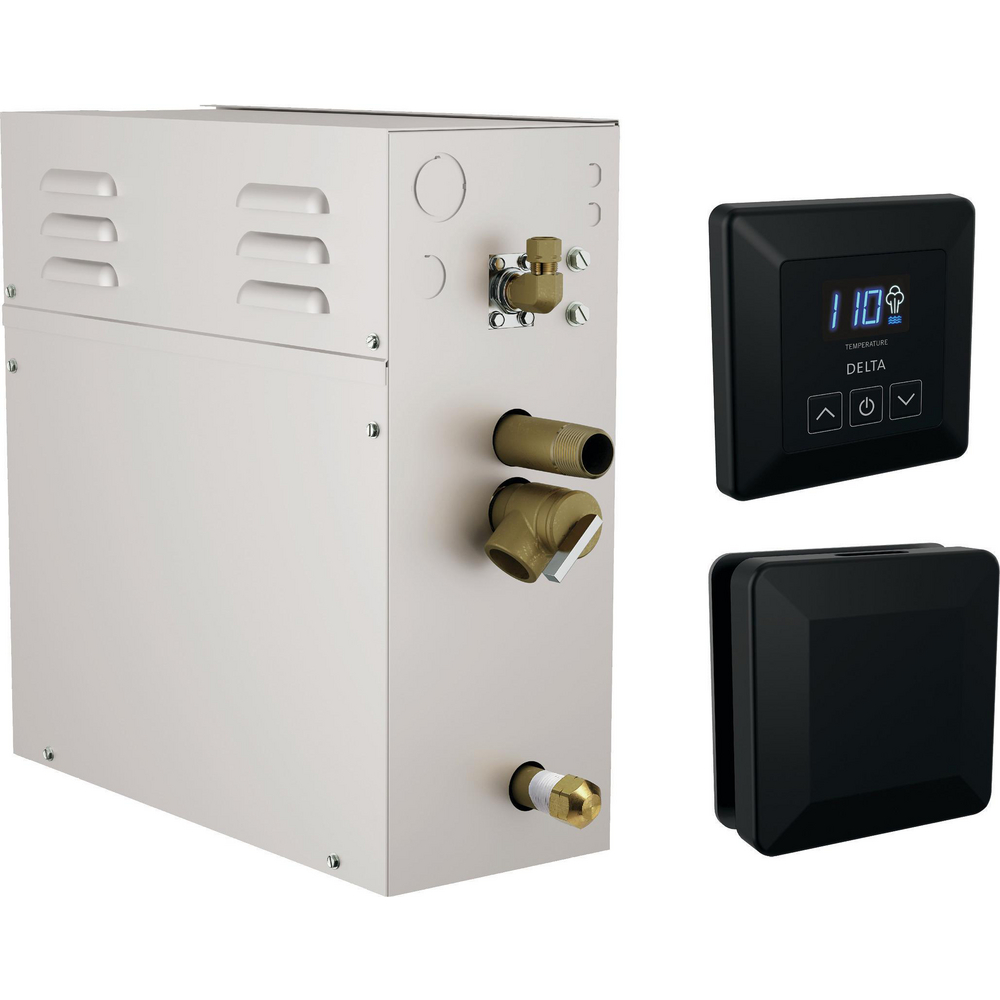

Kit includes the SimpleSteam Generator, SimpleSteam Square Control and Square Steam Head
Generator available in sizes: 4, 6, 7.5, 10, 12 & 15 kW
Compact design permits generator installation in a vanity, closet, or insulated attic or basement
Includes 35' cable (alternative length extension cords sold separately)
To add on generator pan and auto drain, purchase 5GA-PAD-240
Stainless steel tank
Generator is UL Listed with Limited Lifetime Warranty
Control turns system off and on and adjusts temperature and duration
Control must be installed inside the shower area
Steam Head 3/4" NPT, includes silicone cover
Essential oil reserve on top of steam head
Installation Information
Over All Height: 21-7/16
MaxShowerVolume: 75
Wireless Communication: NA
Control Unit Included: Yes
Generator Included: Yes
Steam Head Included: Yes
Electrical Phases: 1
Breaker Capacity: 25
Frequency: 60
Voltage: 240
Wattage: 4000
Killowatts: 4kw
Number Of Steam Heads: 1

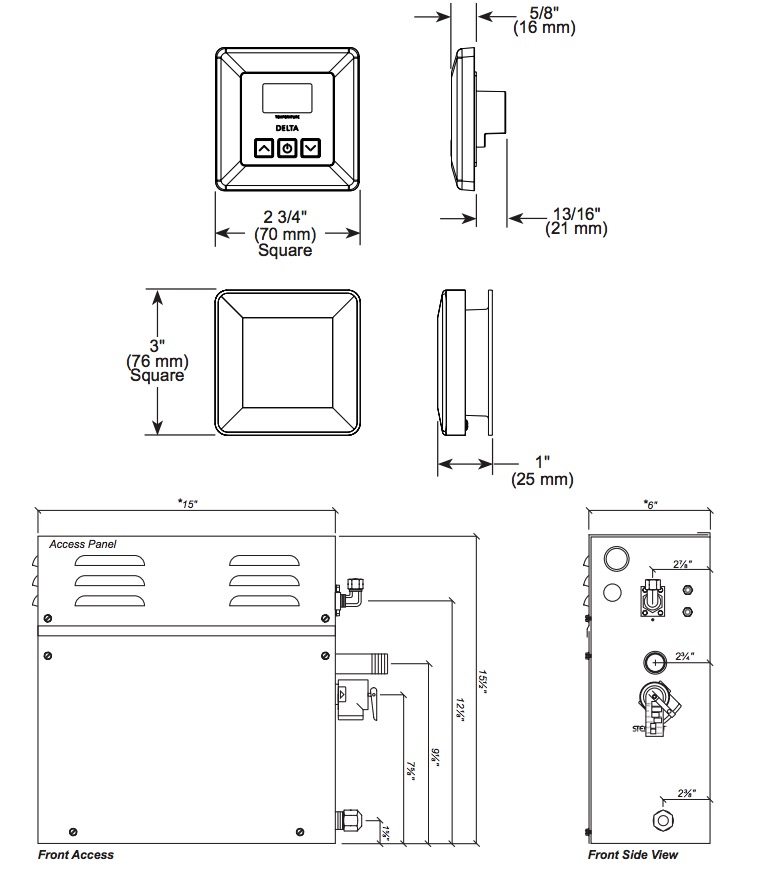

Control Unit Depth: 5/8
Control Unit Height: 2-3/4
Control Unit Width: 2-3/4
Steam Head Depth: 1-1/4
Steam Head Height: 3-3/16
Steam Head Width: 3-3/16
Generator Height: 15-1/2
Generator Depth: 15
Silicone Cover Included: Yes
Steam Product: Yes
Valve Type: NA
GENERATOR STANDARD
SPECIFICATIONS:
Water Supply - 3/8" Compression Fitting, 120 PSI max
Steam Outlet - 3/4" Brass NPT male thread
Pressure Relief Valve - 3/4" NPT female thread
Drain Outlet - Capped 1/2" Brass NPT male thread
Supplied with a 35' control cord
Generator shipped weight - 30 lbs
Steam Generators should be accessible for service.
Steamhead to be mounted 12" to 18" above floor or 6" above rim of tub and as far from the seating area as possible. Do not locate below the user control.
Required Equipment - EP103350 control and steam head
Required Electrical Service - Dedicated circuit required: See Specification Chart for proper electrical requirements.
