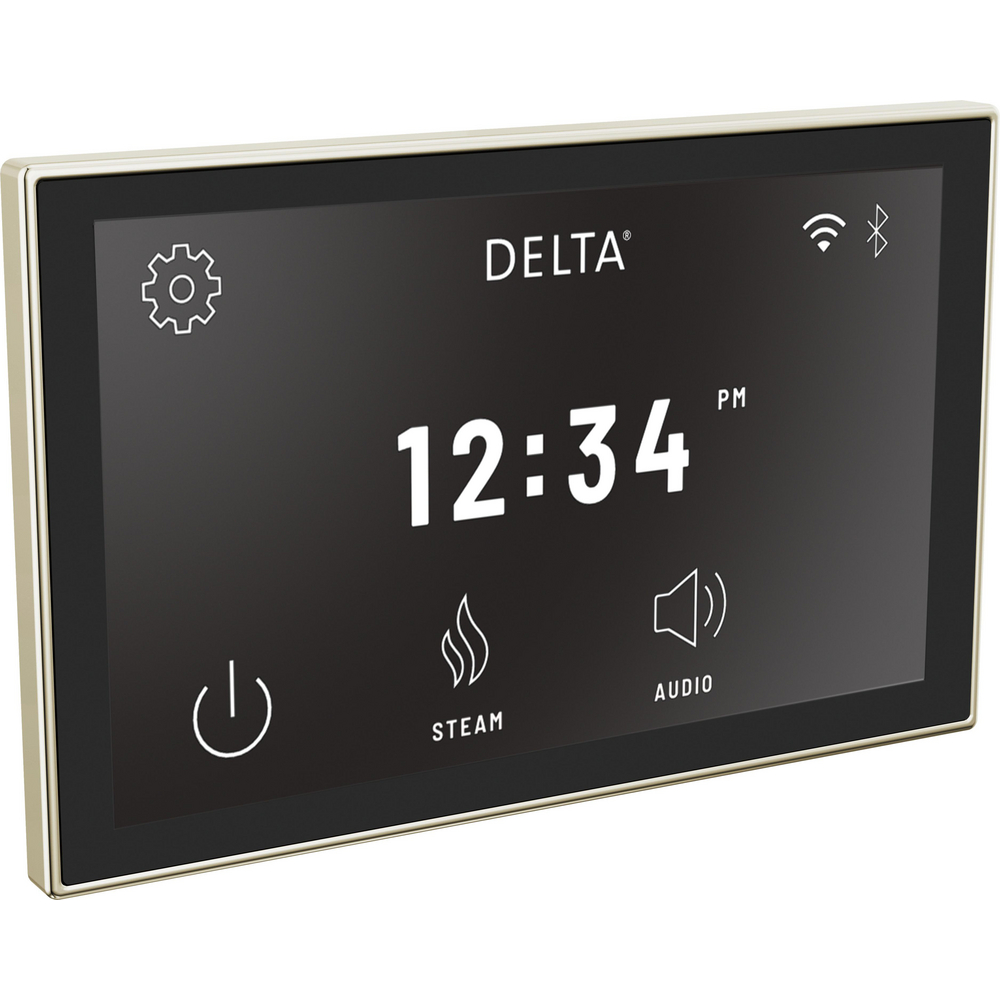

Delta 5CN-550L-PN-PR Showersense Linear Square Digital Interface
STEAMSCAPE DELUXE SYSTEM
ShowerSense Linear Square Digital Interface
MODEL#: 5CN-550L-PN-PR
Perfect for unwinding after a stressful day focusing on your health, or simply escaping into bliss, the Delta SteamScape Deluxe System lets you enjoy a fully customizable steam experience. Discover how the Delta Steam Systems can improve your overall wellbeing. Plus, conserve water and energy without compromising your experience'an average 20-minute steam shower uses less than one gallon of water. Enjoy your steam with peace of mind; our SteamScape electronic parts are covered for up to two years.
Programmable for up to 12 user presets to access duration, temperature, and optional audio
Built-in Wi-Fi with full connectivity to the DFC@Home and other Bluetooth-enabled devices
Interface can be mounted in landscape or portrait orientation
Adjust volume, balance, bass and treble for sound clarity, and pause, play or skip songs via the interface when paired with Audio Speaker Package
Lumicoat Finishes are guaranteed to resist water spots and mineral buildup and easily wipe clean without chemicals or cleaners
Installation Information

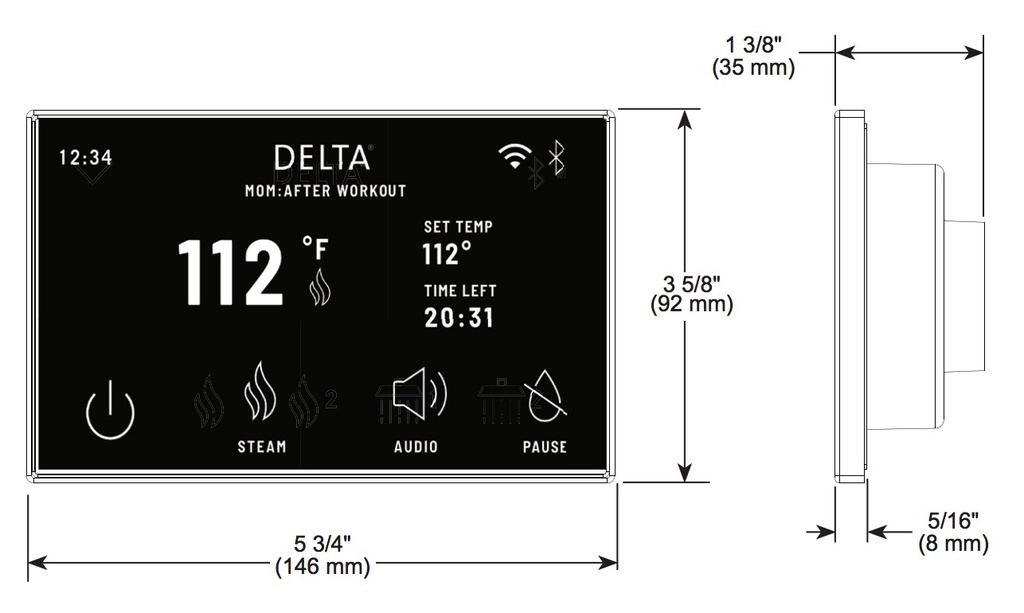

Over All Height: 3-5/8
Wireless Communication: Bluetooth and Wifi
Control Unit Included: Yes
Digital Product: Yes
Valve Type: NA
STANDARD SPECIFICATIONS:
Surface Mount - 2 3/4" hole required
Must mount inside the steam room
It is recommended that the multi-conductor cable be run through 3/4" conduit to protect cable from damage and to facilitate easy replacement
Mount control near seating area and not above Steamhead
Should be mounted between 4' and 4.5' above the floor
Required Electrical Service: Low-voltage connection from the steam generator or shower valve via multi-conductor cable (supplied with generator)
IMPORTANT: Interface may be installed in a Portrait or Landscape orientation. Pleae note the "TOP" of control prior to mounting.
