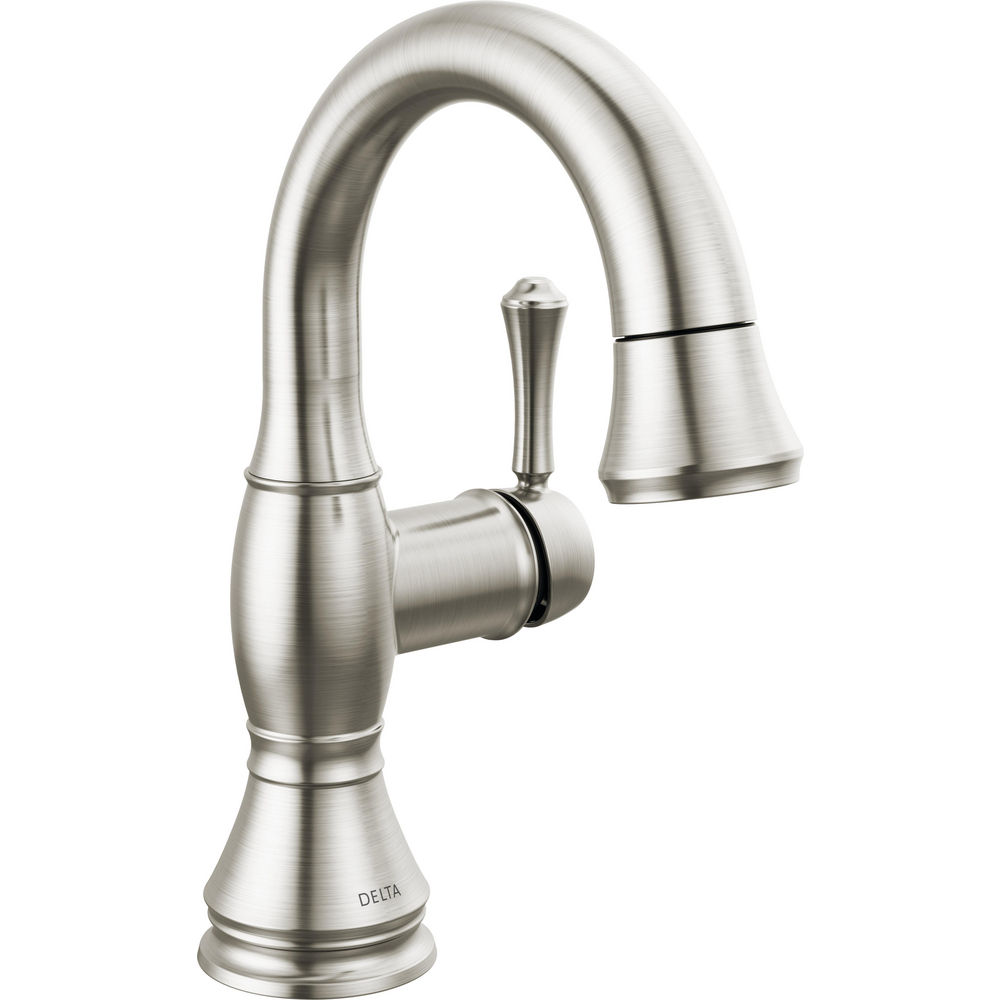

Delta 597-SSPD-DST Cassidy Single Handle Pull Down Bathroom Faucet Stainless
CASSIDY
Single Handle Pull Down Bathroom Faucet
MODEL#: 597-SSPD-DST
Finish: Stainless
Featuring clean lines with elegant design details, the Cassidy Collection is an obvious choice for a timeless, traditionally styled bath. The pull-down spray wand features Delta MagnaTite Docking which uses a powerful integrated magnet to pull your faucet spray wand precisely into place and hold it there so it stays docked when not in use. The Worry-Free Drain Catch is a simple solution to the common problem of pills, jewelry or other valuables washing down the drain.
Delta faucets with Diamond Seal Technology perform like new for life with a patented design that reduces leak points, is less hassle to install and lasts twice as long as the industry standard. Delta WaterSense labeled faucets use at least 20% less water than the industry standard ' helping you save water without compromising performance. You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty.
Makes quick work of cleaning toothpaste, dirt and small debris from your sink with a nimble pull-down spray wand
MagnaTite Docking uses a powerful integrated magnet to snap your faucet spray wand precisely into place keeping it docked when not in use
Diamond Seal Technology is less hassle to install and helps your faucet perform like new for life, reducing leak points and lasting twice as long as the industry standard
Everything you need is together in one convenient box, including integrated InnoFlex PEX supply lines
ADA compliant
Fits single or three hole installations with optional deck plate (RP102236) not included
Metal push pop-up drain assembly in matching finish (included) is ADA compliant and simple to install, operate and clean
Optional red/blue temperature indicator ring included
Delta WaterSense labeled faucets use at least 20% less water than the industry standard ? helping you save water without compromising performance.
Backed by Delta Faucet's Lifetime Limited Warranty

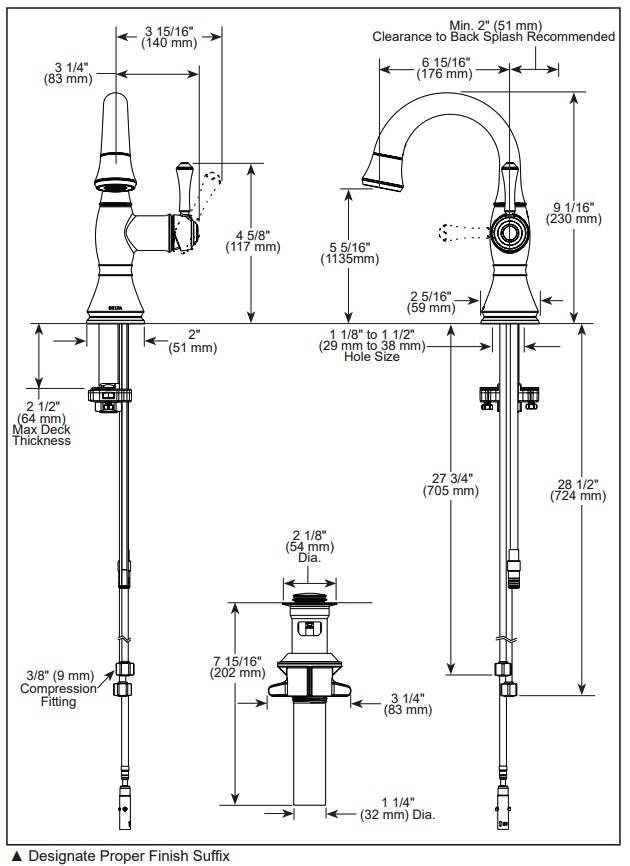

Installation Information
1 or 3-hole 4" installation
Number of Handles: Single handle
Spout Height: 9-1/16"
Spout Length: 6-15/16"
Deck to Outlet: 5-3/8"
Deck Thickness: 2.5"
Supply Line: Included InnoFlex Pex-C Supply Lines
Over All Height: 9-1/16
Valve Type: NA
STANDARD SPECIFICATIONS:
Max. flow rate 1.2 gpm @ 60 psi, 4.5 L/min @ 414 kPa
One or three hole mount (escutcheon RP102236 optional, not included)
Diamond coated ceramic cartridge
1/4" O.D. straight, staggered PEX supply tubes
Models have metal drain with pop-up type fitting with plated flange and stopper
Optional red/blue indicator ring provided with models
Not applicable for pedestal sink
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
Indicates compliance to ICC/ANSI A117.1 - Valve control only
EPA WaterSense
