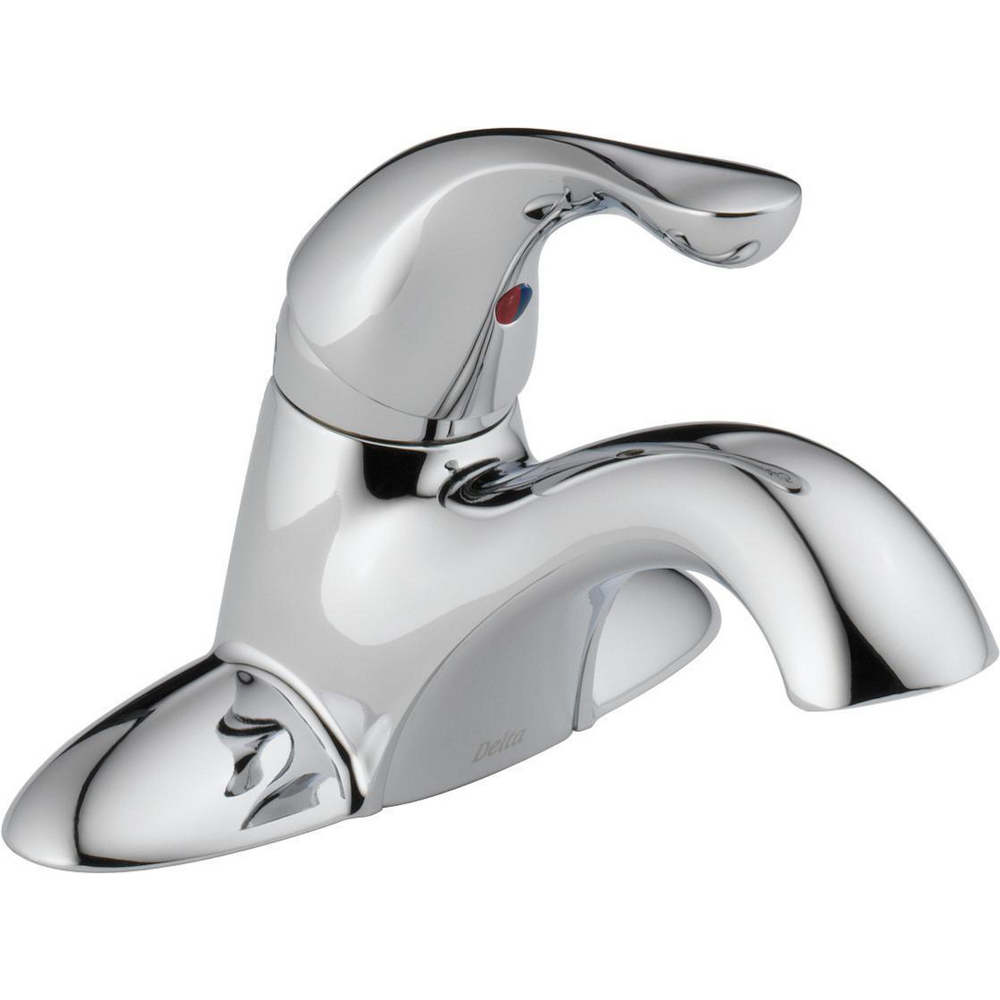

Delta 501-TP-DST Classic Single Handle Centerset Lavatory Faucet Less Pop-Up Chrome
CLASSIC
Single Handle Centerset Lavatory Faucet - Less Pop-Up
MODEL#: 501-TP-DST
Finish: Chrome
Delta's exclusive DIAMOND Seal Technology uses a valve with a tough diamond coating. InnoFlex PEX waterways keep water inside the faucet out of contact with potential metal contaminants. This powerful combination brings you a faucet built to last up to five million uses. Delta is committed to supporting water conservation around the globe and has been recognized as WaterSense Manufacturer Partner of the Year in 2011, 2013, and 2014.
WaterSense certification promotes water conservation
DIAMOND Seal Technology features a valve embedded with diamonds to ensure like-new operation for the life of the faucet
Drain assembly sold separately
Meets standards set by Americans with Disabilities Act (ADA)
3-hole 4 in. installation
Standard spout

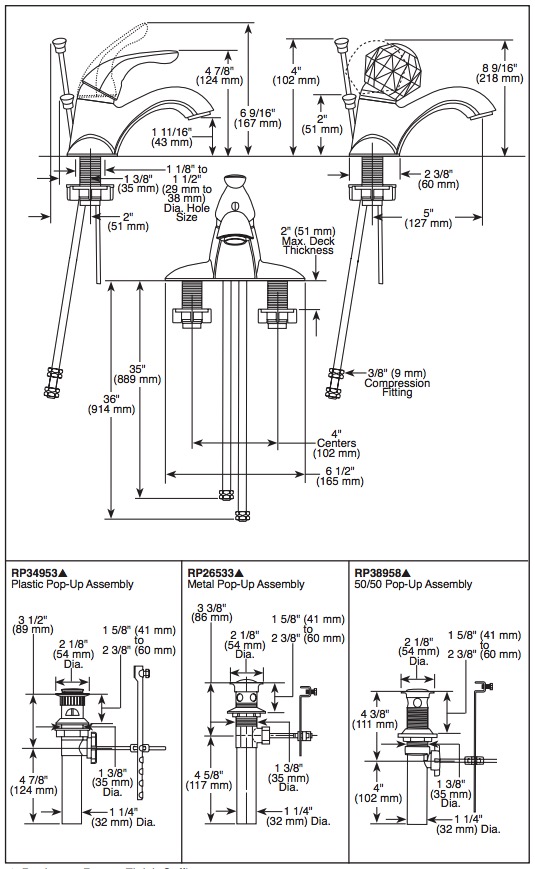

Assembled dimensions: 6-9/16 in. H x 6-11/16 in. D x 6-1/2 in. W
Tract-Pack model must be ordered in full case quantity of 6
Installation Information
Number of Handles: Single handle
Flow Rate: 1.20 gpm, 4.5 L/min
Spout Height: 4-7/8"
Spout Length: 5"
Deck to Outlet: 1-11/16"
Fittings Type: 3/8" compression fittings
Drain Type: Less pop-up
Deck Thickness: 2"
Supply Line: Included InnoFlex Pex-C Supply Lines
Valve Type: DIAMOND(TM) Seal Valve
Over All Height: 6-9/16
Valve Type: DIAMOND(TM) Seal Valve
STANDARD SPECIFICATIONS:
Maximum 1.2 gpm @ 60 psi, 4.5 L/min @ 414 kPa
GPM indicates maximum 1.0 gpm @ 60 psi, 3.8 L/min @ 414 kPa
HGM indicates maximum 0.5 gpm @ 60 psi, 1.9 L/min @ 414 kPa
Three hole mount
Diamond coated ceramic cartridge
3/8" O.D. straight, staggered PEX supply lines
Red/blue indicator markings
Includes cartridge limit switch to allow maximum hot water mix of 50%
Models with "MPU" and "TPM" have metal drain with pop-up type fitting with plated flange and stopper
Models with "TP" have metal flange and plastic tail piece
Models with suffix "PPU" have plastic pop-up type fitting with plated flange and stopper
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
ASME A112.18.2 / CSA B125.2
Indicates compliance to ICC/ANSI A117.1
EPA WaterSense®
Verified compliant with .25% weighted average Pb content regulations.
