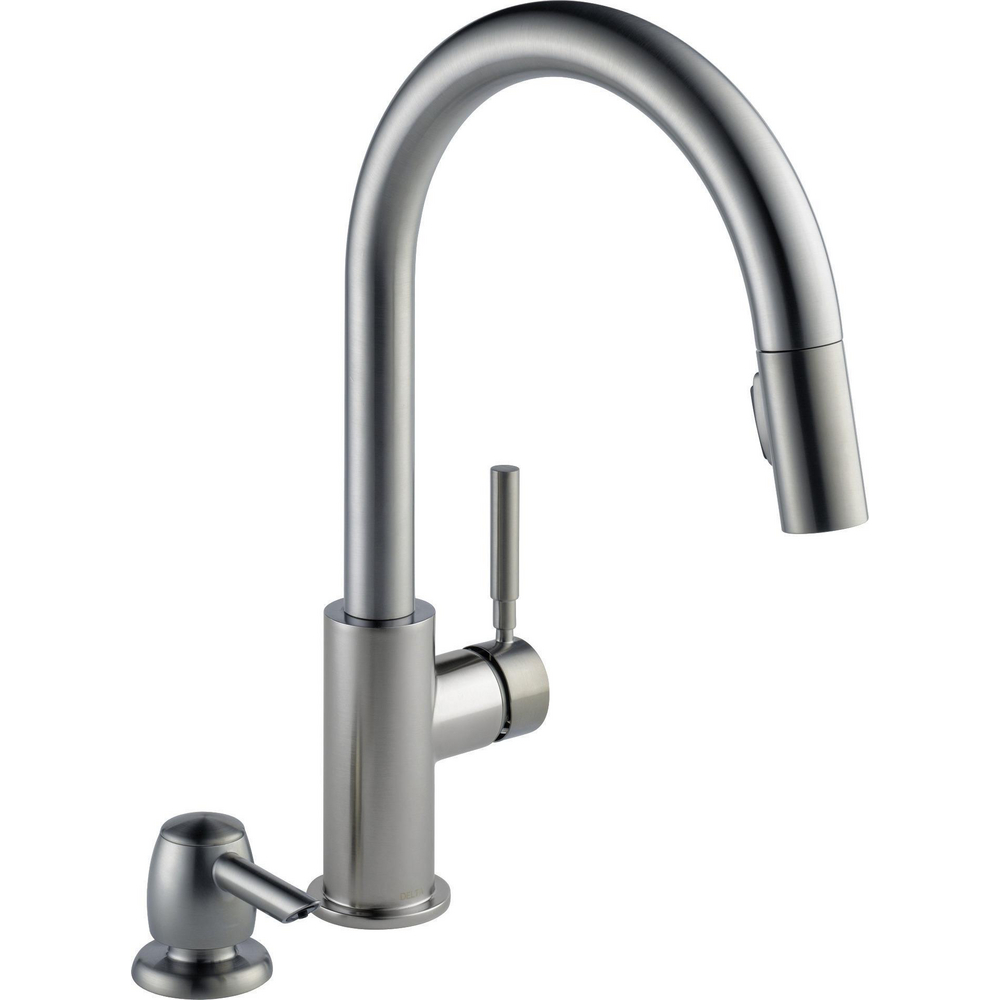

Delta 19933-SPSD-DST Trask Single Handle Pull-Down Kitchen Faucet With Soap Dispenser
TRASK
Single Handle Pull-Down Kitchen Faucet with Soap Dispenser
MODEL#: 19933-SPSD-DST
Finish: SpotShield Stainless
The pull-down spray wand comes free with a gentle tug and gives you total flexibility. The hose extends and retracts without friction points, fed by gravity. As you raise the wand to dock it, the magnet embedded in the spout pulls the wand precisely into place. So, unlike other pull-downs that tend to droop over time, MagnaTite keeps your pull-down faucet looking picture-perfect. SpotShield Technology means less spots, less cleaning, and antimicrobial protection of the finish. Delta's exclusive DIAMOND Seal Technology uses a valve with a tough diamond coating. InnoFlex PEX waterways keep water inside the faucet out of contact with potential metal contaminants. This powerful combination brings you a faucet built to last up to five million uses. Only Delta faucets are equipped with Touch-Clean soft, rubber nubbins that allow you to easily wipe away calcium and lime build-up with the touch of a finger.
MagnaTite docking keeps the kitchen pull-down spray wand firmly in place with a powerful integrated magnet, so it stays docked when not in use
SpotShield Technology defends your faucet against spots and stains
Finish stays cleaner longer with SpotShield technology
DIAMOND Seal Technology features a valve embedded with diamonds to ensure like-new operation for the life of the faucet
Includes matching finish soap dispenser
Meets standards set by Americans with Disabilities Act (ADA)
Touch-Clean spray holes allow for easy removal of hard water build-up
1, 2, 3, or 4-hole 8 in. installation
High-arc pull-down swivels 360degrees

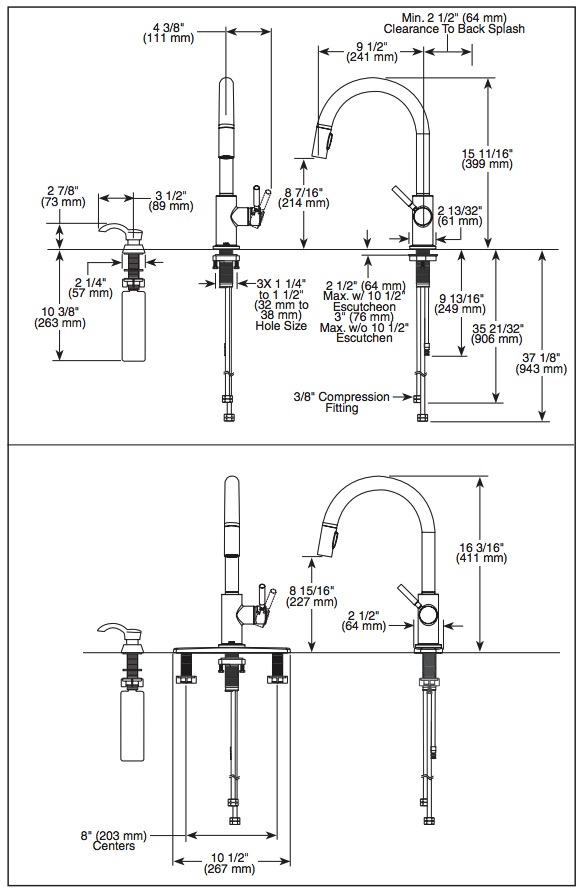

Assembled dimensions: 16 in. H x 10 in. D x 10-3/4 in. W
Installation Information
Number of Handles: Single handle
Escutcheon: Optional Escutcheon Included
Flow Rate: 1.8 gpm @ 60 psi, 6.8 L/min @ 414 kPa
Spout Height: 16"
Spout Length: 9-1/2"
Deck to Outlet: 8-7/16"
Fittings Type: PEX
Drain Type: NA
Deck Thickness: 2.5"
Supply Line: Included InnoFlex Pex-C Supply Lines
Valve Type: DIAMOND(TM) Seal Valve
Over All Height: 16
Valve Type: DIAMOND(TM) Seal Valve
Pull-out/Pull-down: Yes
Tall/High Arc: Yes
STANDARD SPECIFICATIONS:
Maximum 1.8 gpm @ 60 PSI, 6.8 L/Min @ 414 kPa
One, two, three, and four hole mount (escutcheon included)
Full motion valve cartridge
3/8" O.D. straight, staggered PEX supply lines
Spout rotates 360˚
Red/Blue indicator markings
Two-function wand; Aerated stream or spray
Dual integral check valves in sprayer
Quick Snap® connect hoses
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
ASME A112.18.6
Indicates compliance to ICC/ANSI A117.1
Verified compliant with .25% weighted average Pb content regulations.
