Delta 1600T9003TR Electronic Concealed Hardwire Urinal Flush Valve Trim
Electronic Concealed Hardwire Urinal Flush Valve (TRIM ONLY)
model#: 1600T9003TR
Delta's H2Optics hands-free technology is one of the most advanced sensing technologies in the industry today for electronic flush valves. With the ability to accurately sense the users' distance, regardless of external factors such as light reflection, clothing colour and textures or dryness of one's skin, H2Optics technology provides consistent, dependable results.

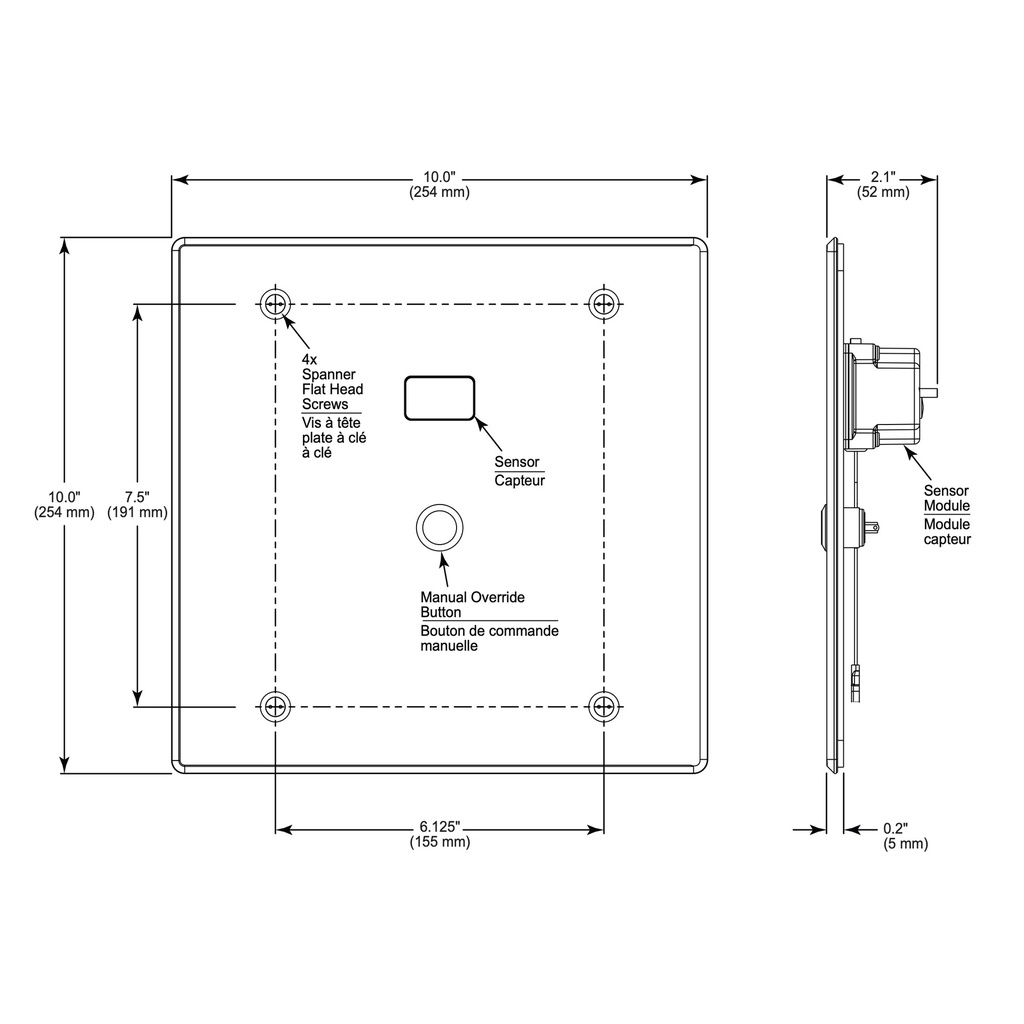

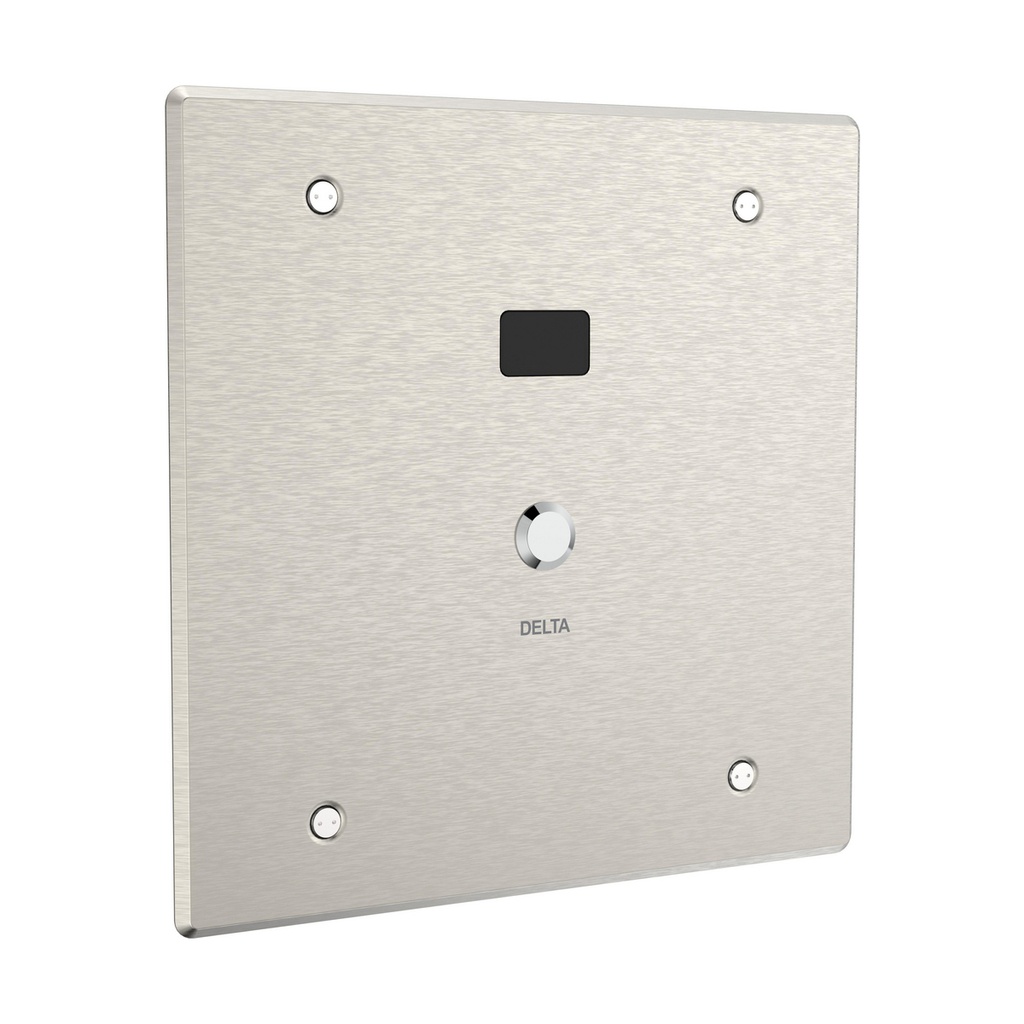

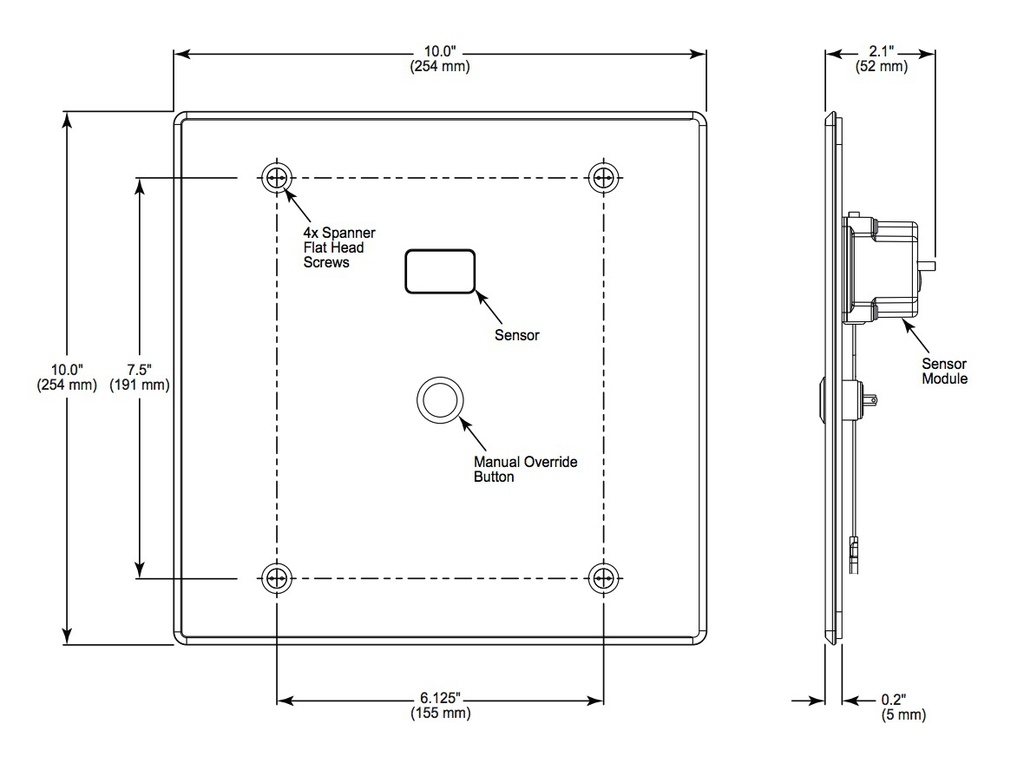

10" x 10" Stainless steel cover with integral sensor
Trim ONLY for recessed box (Rough-in 1600T9003RI sold separately)
Hardwire Operated (24 VAC) requires transformer (Transformer 060771A sold separately)
Closet Mounting: Urinal, top inlet
Electronic manual override
Field adjustable
For top inlet urinal
When used for top inlet urinal, exposed tubing,
Hardwire models, order transformer separately
Field adjustable
Installation Information
Operation: Electronic
Installation: Concealed
Fixture Type: 3/4" top inlet
Flush Volume: 0.5 gpf (1.9 Lpf)
Valve Type: NA
Features
Cover with integral sensor
Vandal resistant mounting screws, metal mounting box
TRIM MODELS - Supplied as sensor and override button attached to cover
Preset blocking time, 0 second activation delay
Electronically Adjustable Flush Volume
Operation
Hands free touch-less operation
Power function light
Adjustable 24 hour courtesy flush factory set to off
Selectable sensing distance - 12.0 to 28.0" (305 to 711 mm) in 4.0"
(102 mm) increments factory set to 20.0" (508 mm)
8 second blocking time
Required Accessories
060704A - Transformer 20VA, 120/24Vac (for use with up to 5 units)
060771A - Transformer 40VA, 120/24Vac (for use with up to 10 units)
1600T9003RI - Rough-In
Optional Accessories
061047A - Hardwire with Battery Backup - (See DSP-BB for detailed specification)
