Delta 1600T9003RI Concealed Urinal Flush Valve Rough-in

Delta 1600T9003RI Concealed Urinal Flush Valve Rough-in

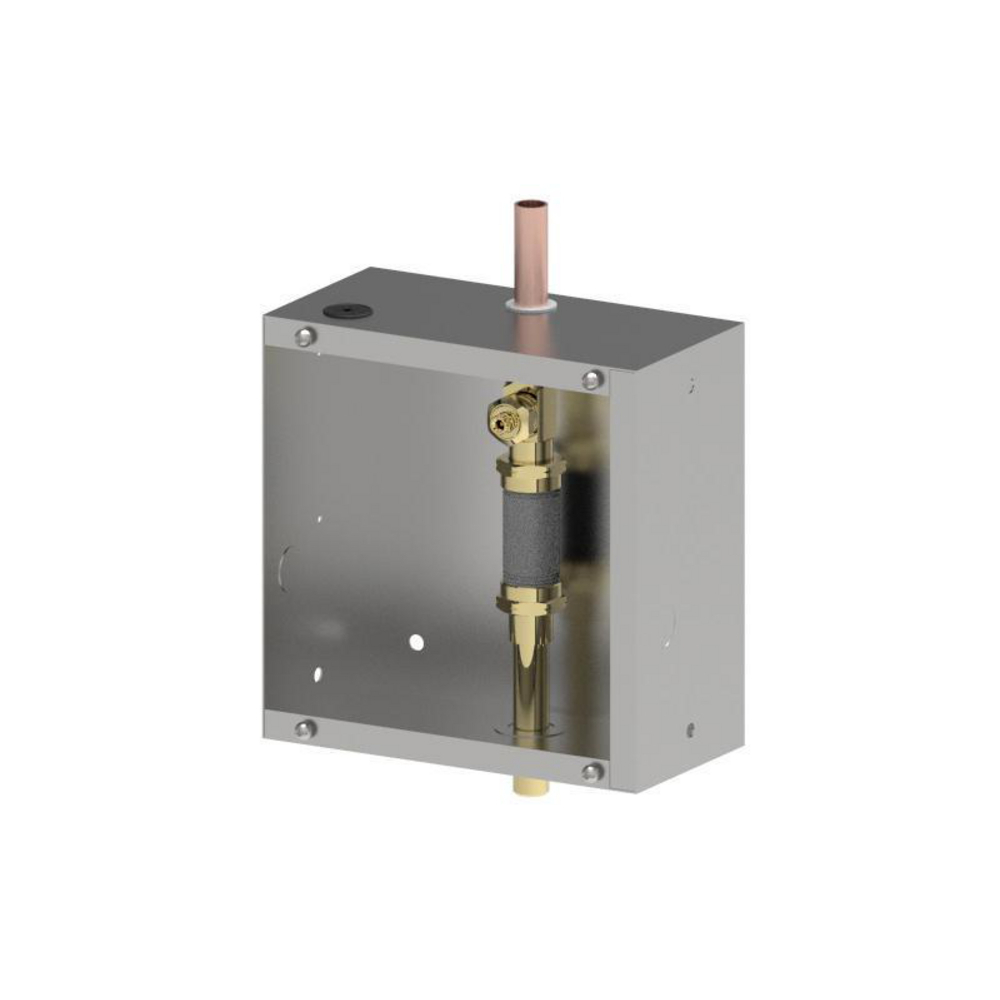

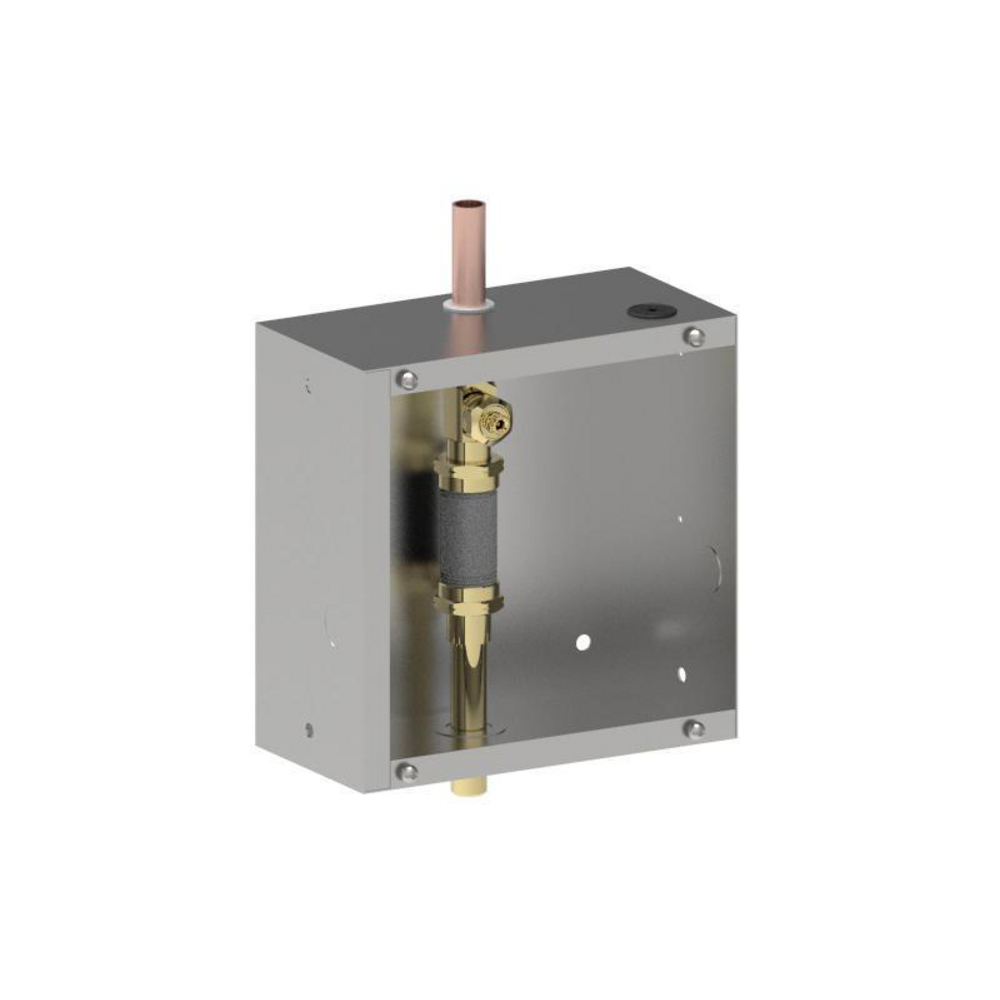

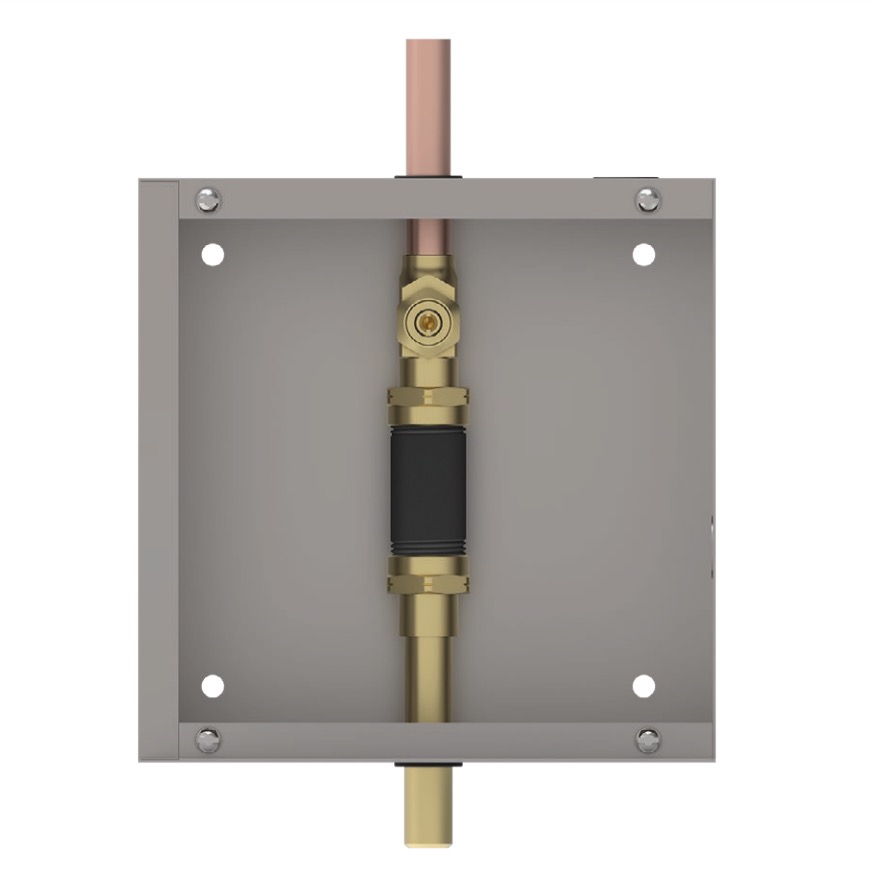

Concealed Urinal Flush Valve Rough-in - Hardwire Operated
model#: 1600T9003RI

Urinal, 3/4" top inlet

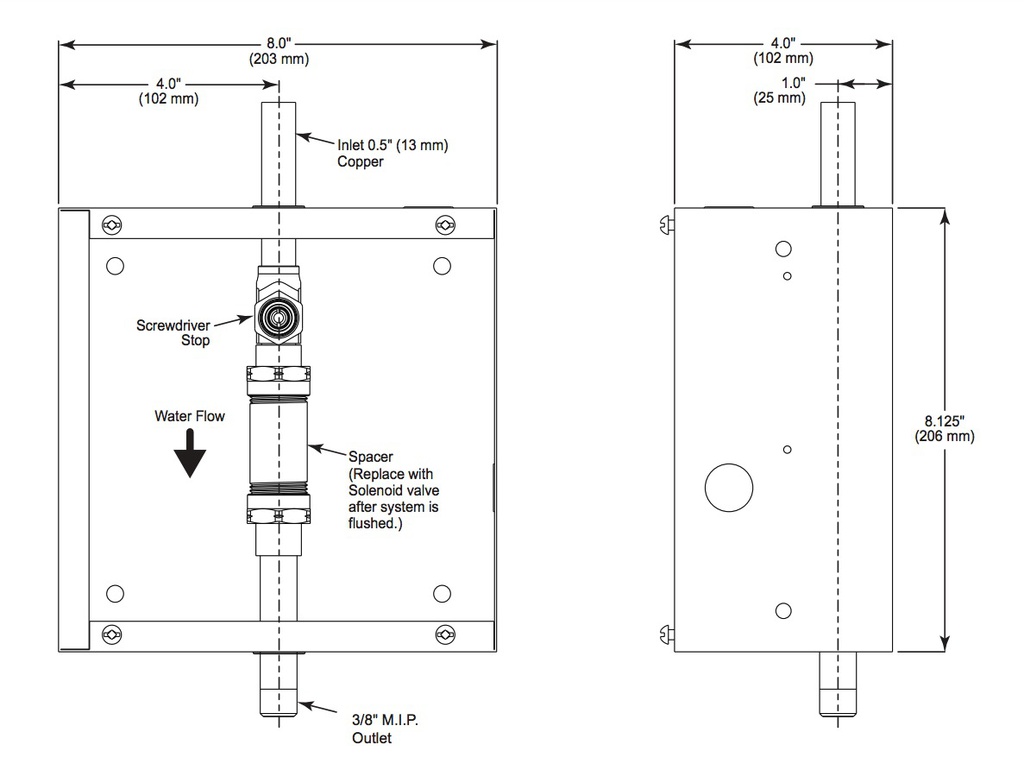

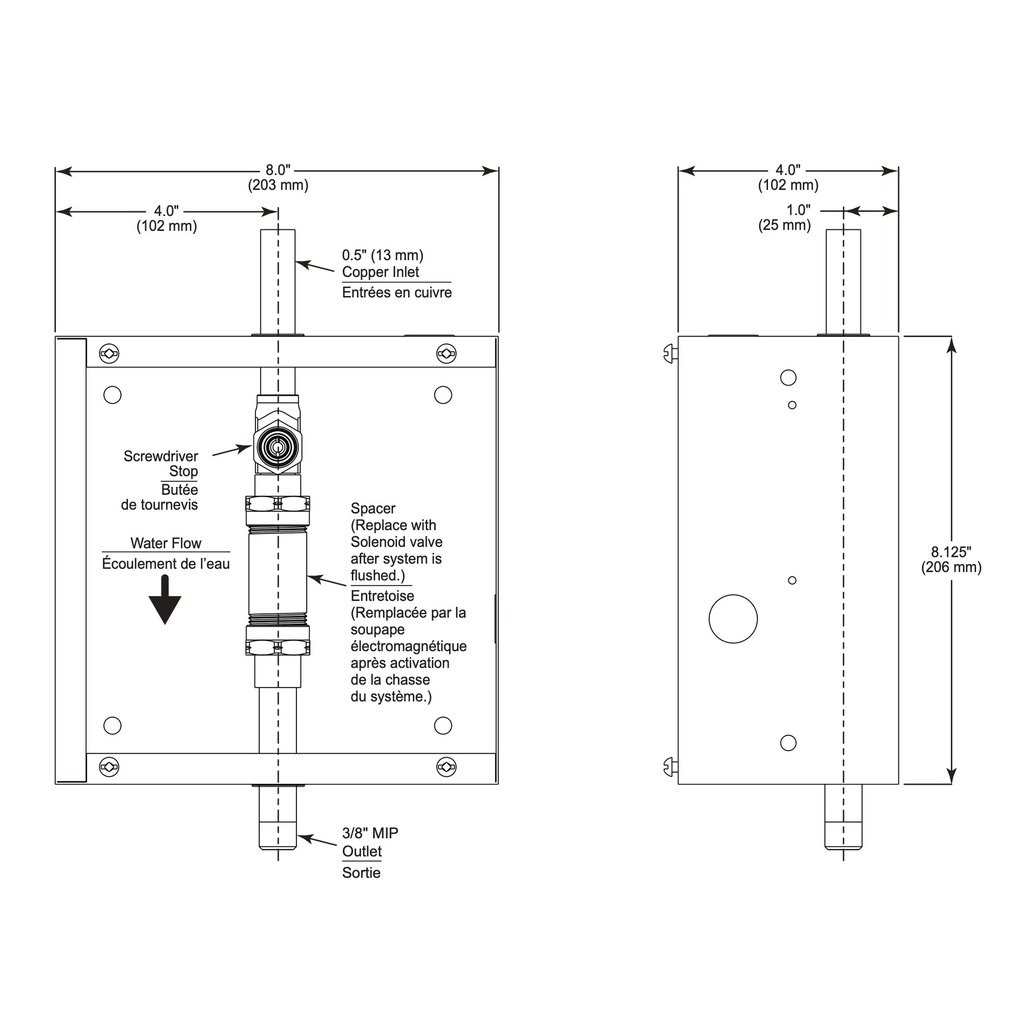

Recessed 8" box, with braided polymer outlet hose
Rough-in ONLY (must order TRIM 1600T9003TR for complete product)
Slow closing solenoid valve
When used for top inlet Urinal, exposed tubing, flanges, elbow, etc., supplied by others

Installation Information
Operation: Electronic
Installation: Concealed
Fixture Type: 3/4" top inlet
Flush Volume: 0.5 gpf (1.9 Lpf)
Valve Type: NA

Specification
Operation: H2Optics® sensing technology
Valve: Solenoid
Bypass: Stop - Filtered
Fixture Type: Urinal
Fixture Connection: Top Spud
Outlet: 3/8" MIP
Rough-In Box: Front Accessible
Control Stop: Integrated

Operation
Recommended water supply:
Minimum flowing pressure – 25 psi (172 kPa)
Minimum flow rate – 8 gpm (30 L/min)

Required Accessories
060704A - Transformer 20VA, 120/24Vac (for use with up to 5 units)
060771A - Transformer 40VA, 120/24Vac (for use with up to 10 units)
1600T9003TR - Trim

Optional Accessories
060680A - 4.0' (121.9 cm) Solenoid extension wire
