Brizo T66622-SL Frank Lloyd Wright Sensori Volume Control Leve Handle Brilliance Luxe Steel
Frank Lloyd Wright Bath Collection by Brizo®
Sensori® Volume Control Trim with Lever Handle
An homage to a true luminary, the Frank Lloyd Wright® Bath Collection by Brizo® pays tribute to Wright’s enduring influence. From the cantilevered spout to the avant-garde water flow, each element draws from his philosophy of organic architecture.

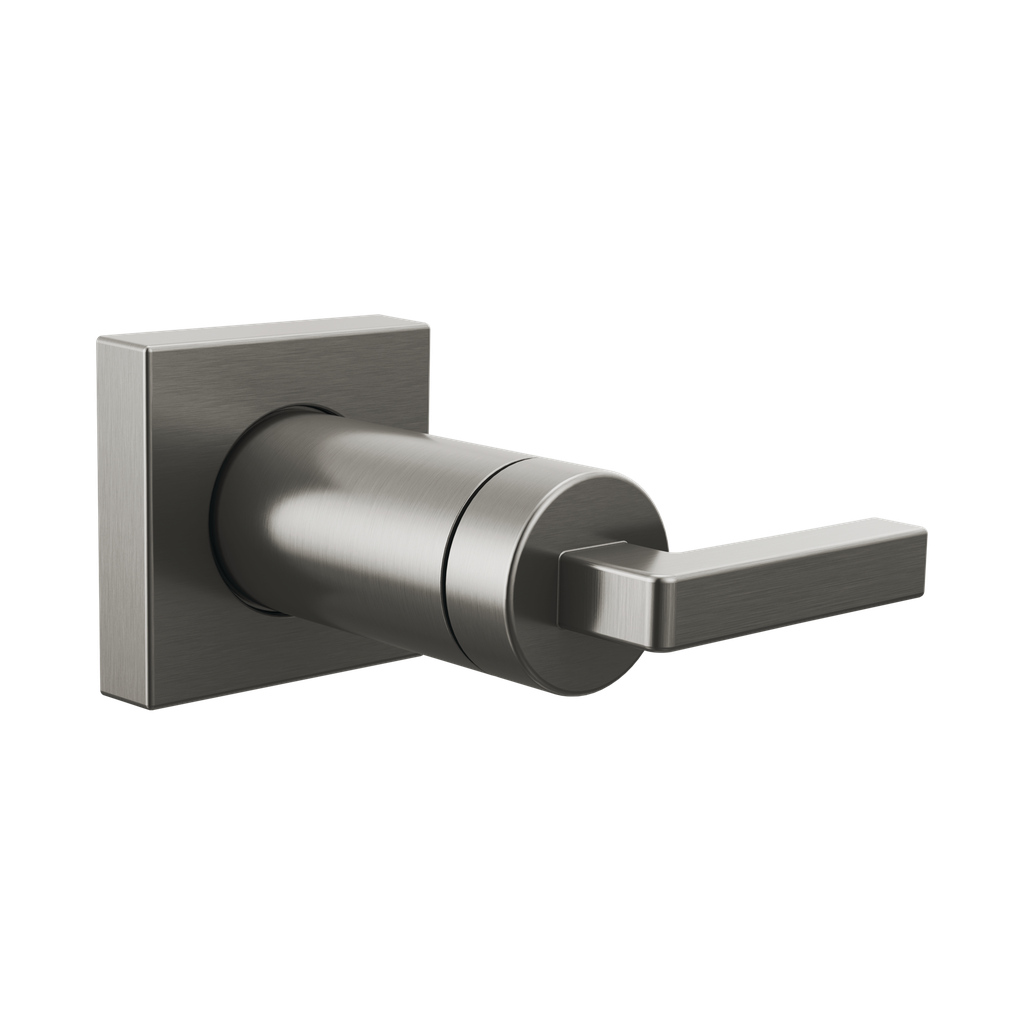

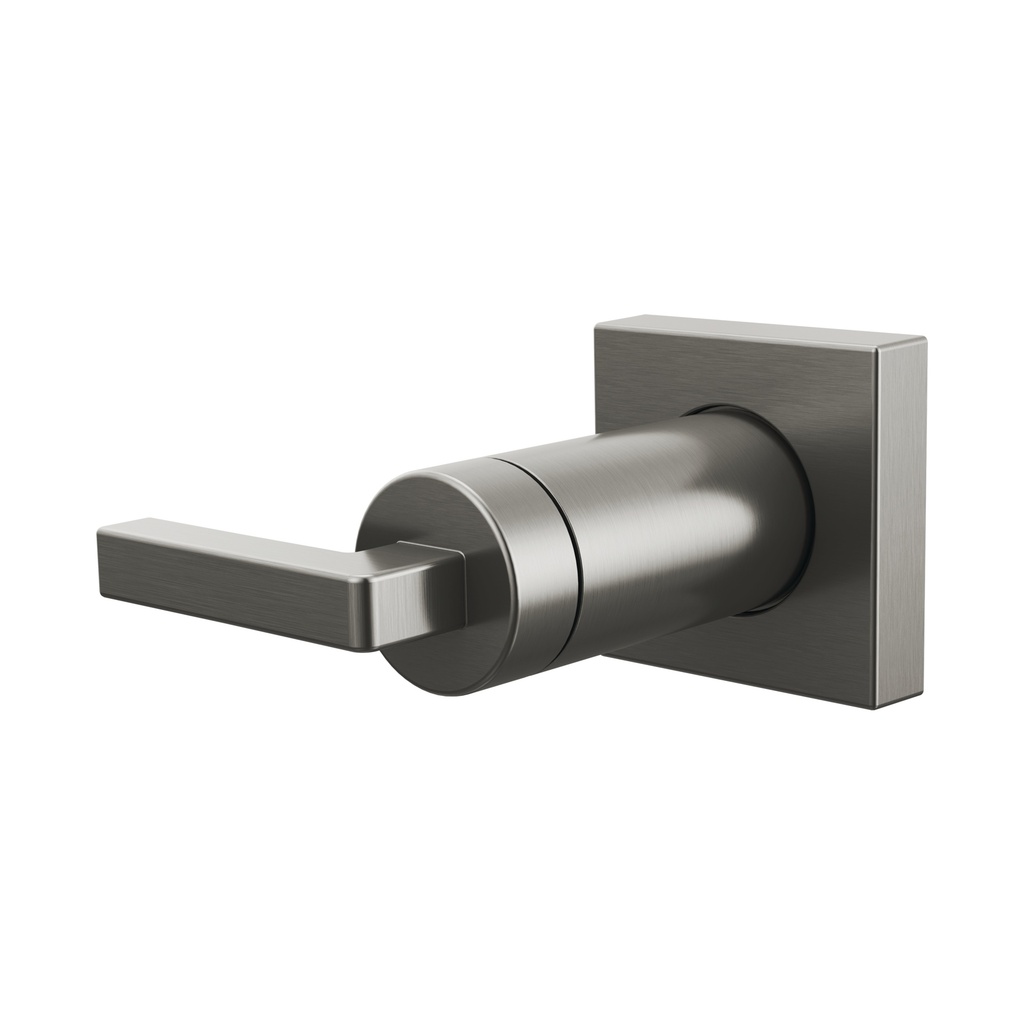

Sensori® Volume Control Trim with Lever Handle
T66622-SL
Selected Finish: Brilliance® Luxe Steel
Rough Valve:
Sensori Volume Control Rough
ITEM DETAILS
Volume control operates best at 45–80 psi, delivering smooth, consistent performance within the recommended pressure range

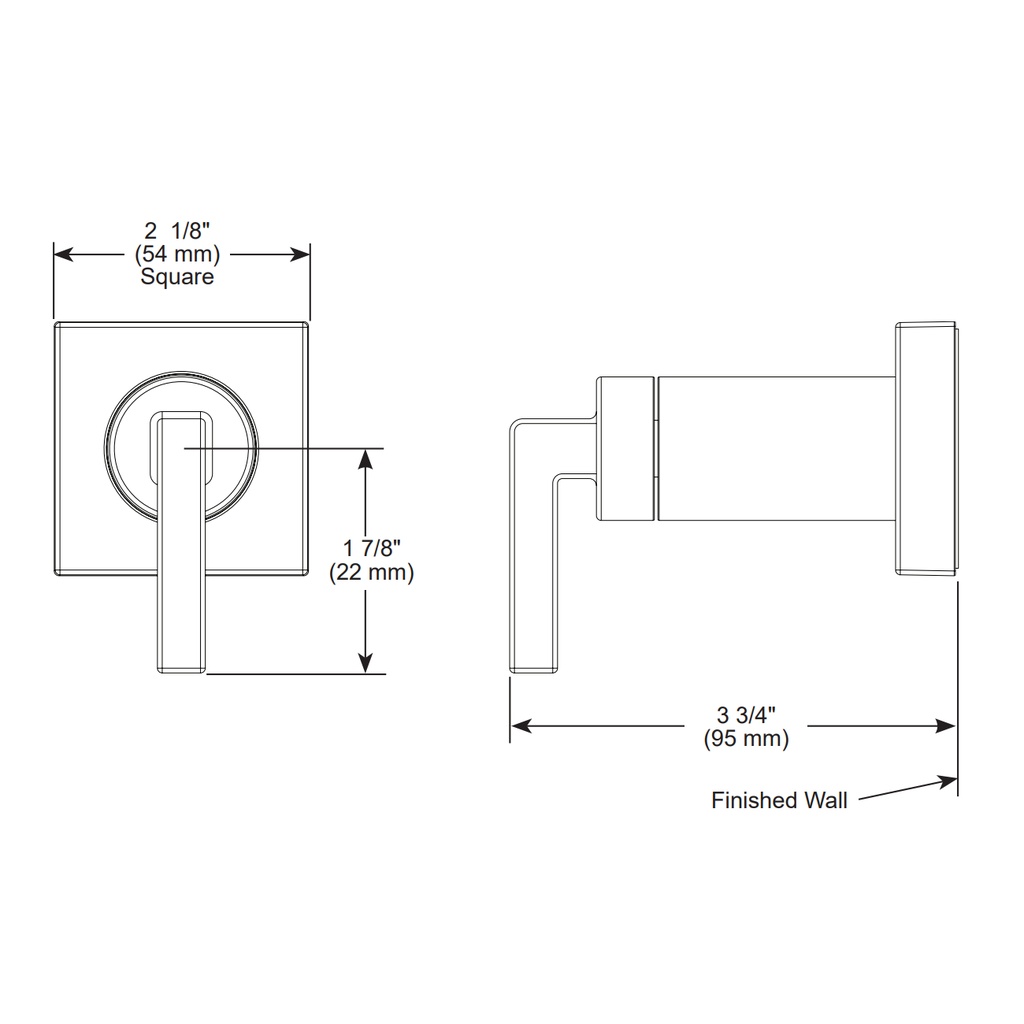

Rough accommodates wall thicknesses from 2 1/8" to 2 3/4", depending on trim selection, for greater installation flexibility
RP100304 extension kit extends rough installation depth up to 3 1/4", to accommodate thicker wall applications
Rough sold separately—required to complete installation
STANDARD SPECIFICATIONS
Must also order R35600 Rough-In
90? handle rotation controls volume only
Volume control flows up to 16.2 gpm @ 60 psi
Maximum flow 8.2 gpm @ 60 psi per volume control when paired with Sensori Thermostatic trim
Volume controls are required for every outlet and every set of body sprays (up to max flow)
All parts are replaceable from the front
Recommended working pressure of 45-80 psi
Volume control only; must be used with temperature control device
Rough can accommodate up to 3 1/4" wall thickness.
NOTE: some applications may require stem extender RP100304.
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
Indicates compliance to ICC/ANSI A117.1
