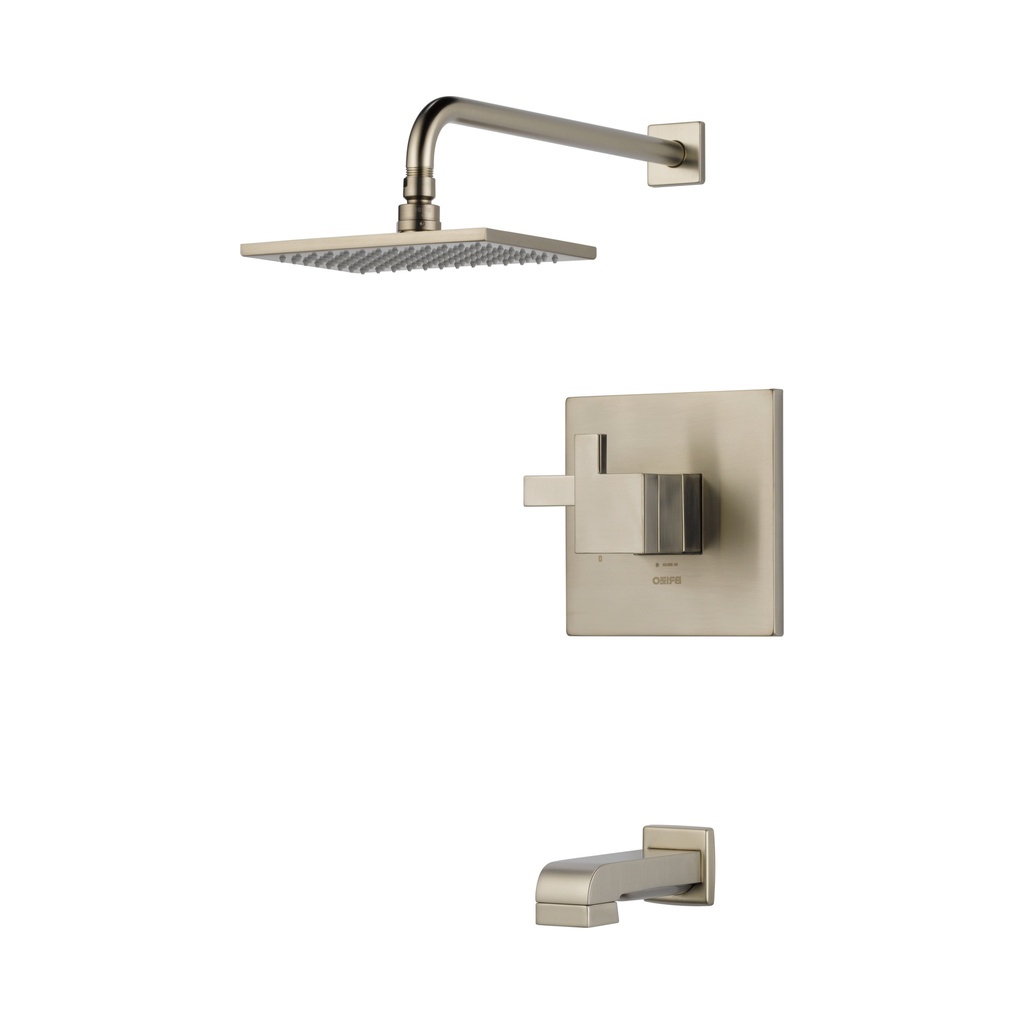

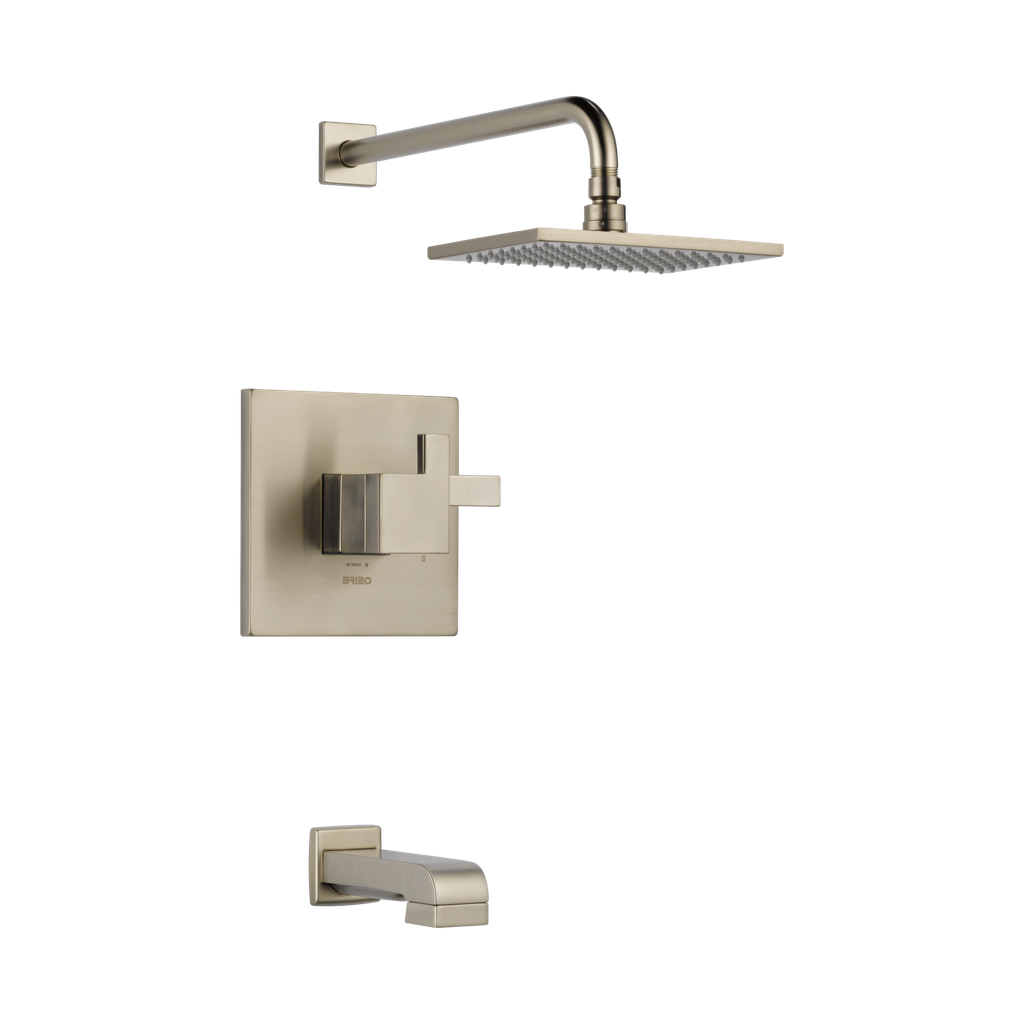

Brizo T60480-BN-2.5 Siderna Tempassure Thermostatic Tub Shower Trim Brilliance Brushed Nickel
Siderna®
TempAssure® Thermostatic Tub/Shower Trim
For use with MultiChoice® Universal rough
TempAssure® Thermostatic Tub/Shower Trim
T60480-BN-2.5
Selected Finish: Brilliance® Brushed Nickel
Rough Valve:
MultiChoice® Universal Tub/Shower Rough
R60000-UNBX
ITEM DETAILS
Independent temperature and volume control
8 5/8" x 5 3/4" single-function raincan showerhead
16" decorative, solid brass shower arm
6 7/32" solid brass pull-down diverter tub spout
Escutcheon features neodymium rare earth magnets to simplify installation and provide secure, flush fit
RP82245 extension kit extends rough installation up to 1 3/4"
RP82245 extension kit extends rough installation up to 1 3/4"
TECHNICAL SPECIFICATIONS
Maximum Flow Rate 2.50 gpm @ 80 psi, 9.5 L/min @ 552 kPa
STANDARD SPECIFICATIONS:
Thermostatic wax element maintains the outlet temperature to ±3.6?F
Must also order MultiChoice® Universal rough valve body (R60000 Series)
Back-to-back installation capability
Lever volume control handle; temperature adjustment lever
Graphics indicate hot/cold temperature adjustment
Field adjustable to limit handle rotation into hot water zone
All parts replaceable from the front of the valve

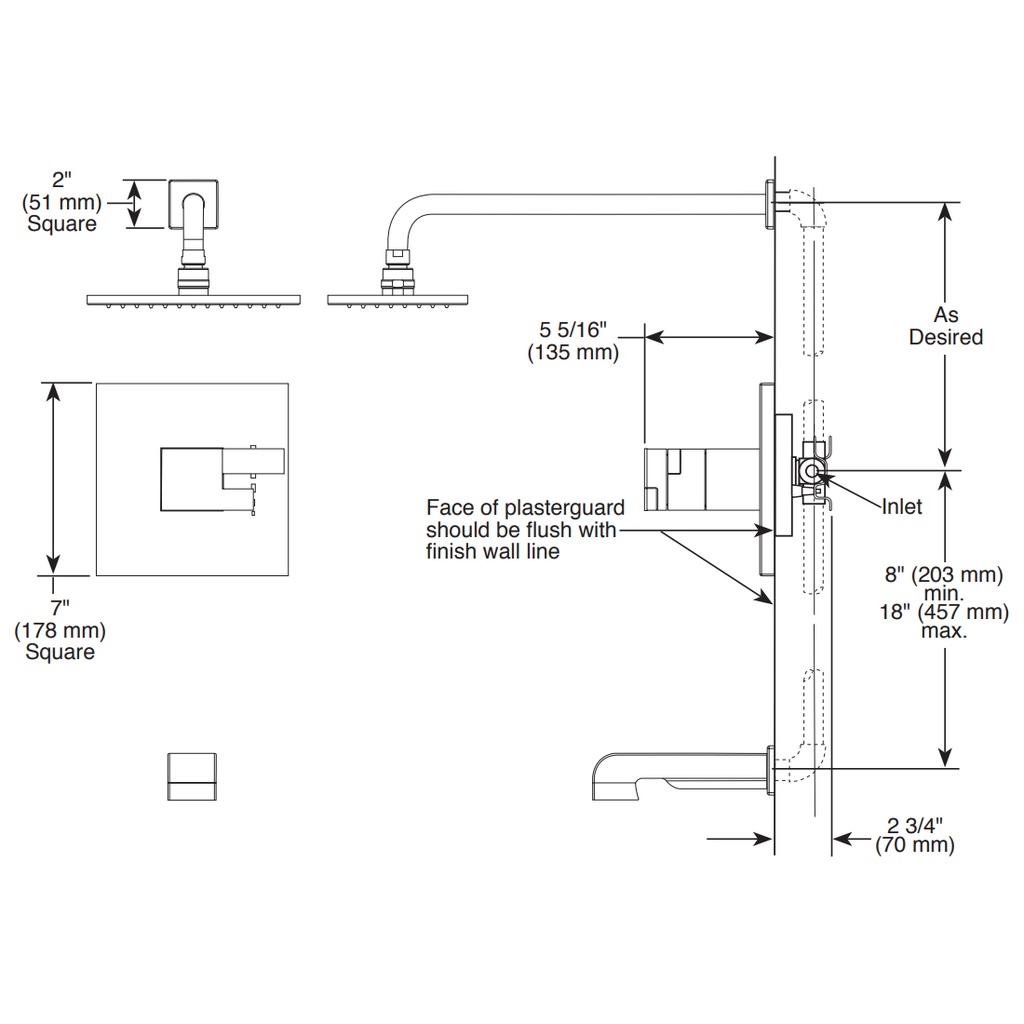

Adjusts for up to 1" wall thickness, optional extension kit (RP82245) extends wall thickness up to an additional 1 3/4".
Single function showerhead (81380-2.5) sold with T60280-2.5 and T60480-2.5 - 2.5 gpm @ 80 psi, 9.5 L/min @ 550 kPa
Single function showerhead (81380) sold with T60280 and T60480 - 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
Tub port maximum flow rate 8.6 gpm @ 60 psiwith R60000-UNBX
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
Indicates compliance to ICC/ANSI A117.1 - Valve control only
EPA WaterSense
