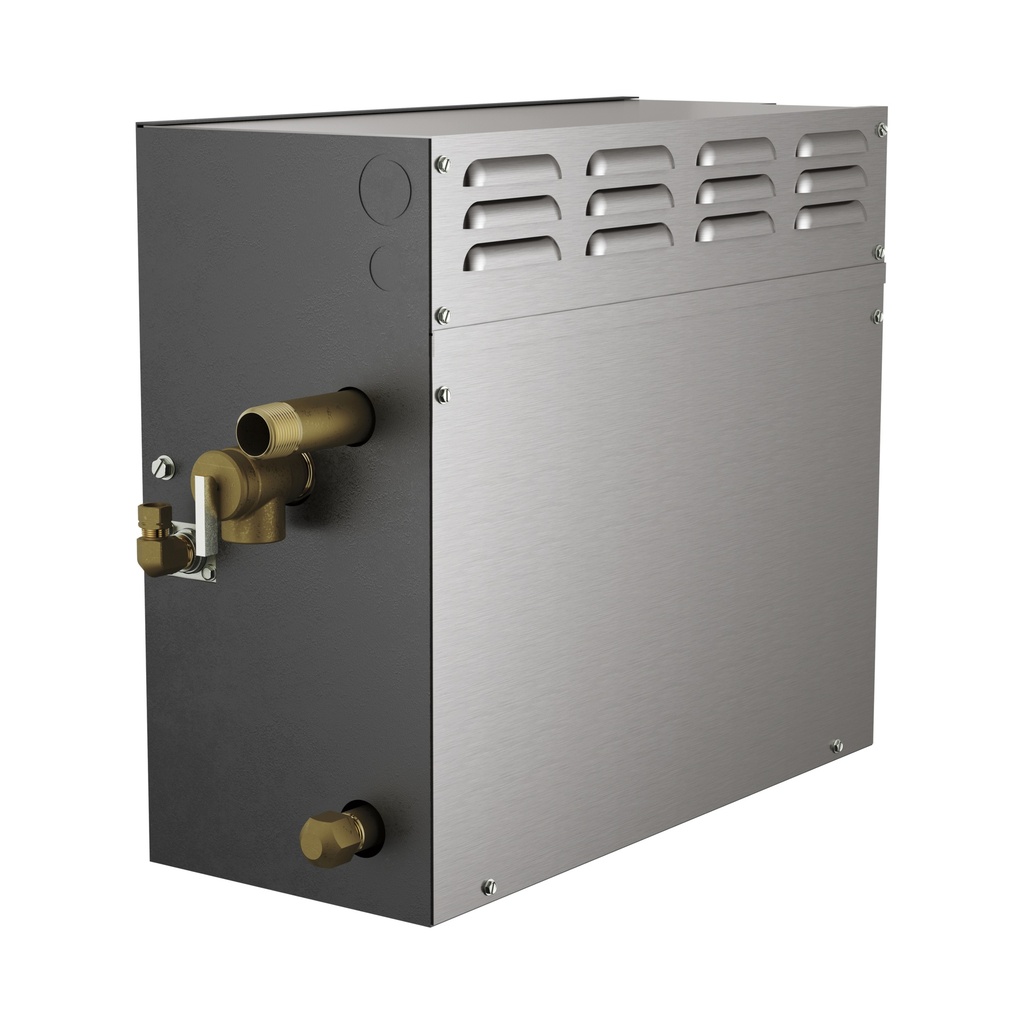

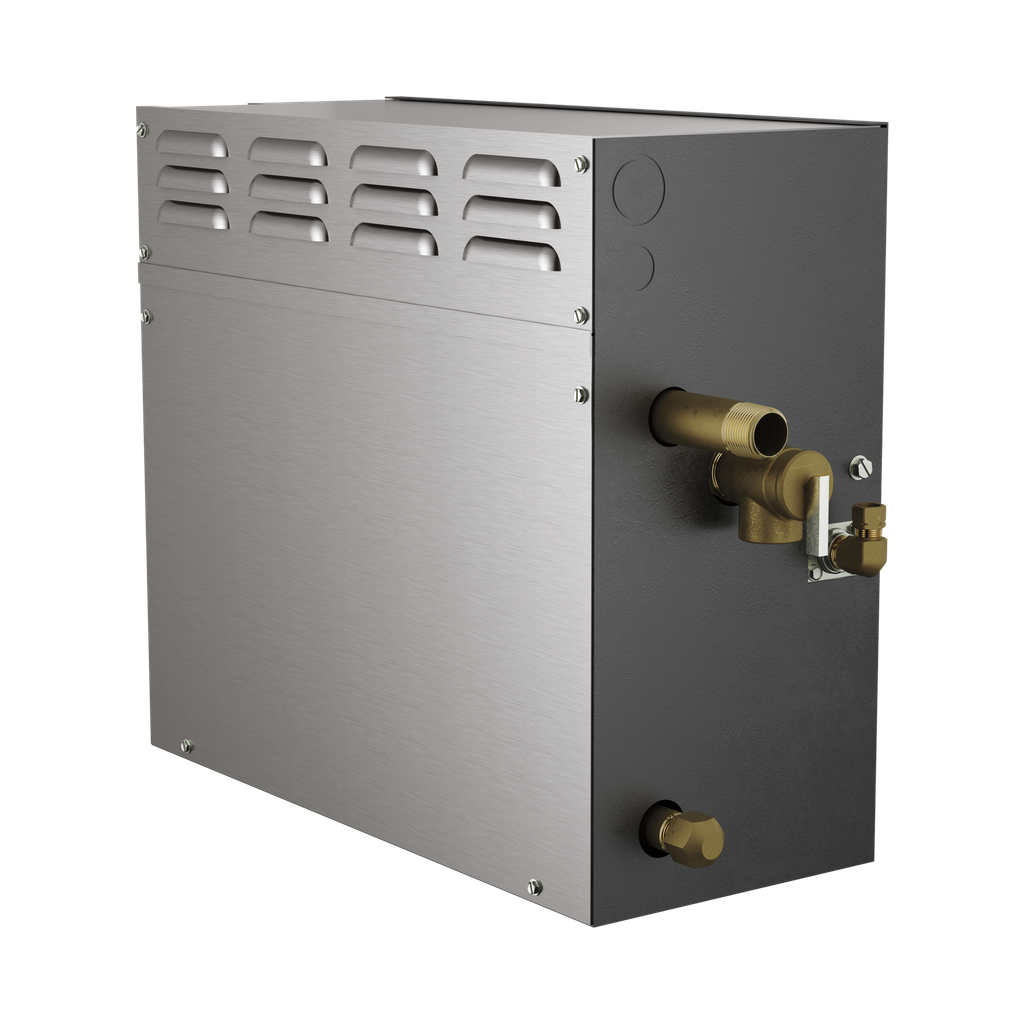

Brizo 8GE-TSG12-208-3 Mystix Steam Generator 12Kw 208V
Mystix™ Generator
Mystix™ 12kW Steam Generator - 208V 3ph
The secret to the uncompromising comfort of the Mystix™ Steam System is the Mystix™ Steam Generator. Equipped with a suite of advanced technologies, the generator regulates the steam environment to ensure the ideal conditions at every moment.
Mystix™ 12kW Steam Generator - 208V 3ph
8GE-TSG12-208-3
ITEM DETAILS
12 kW
Can join two to four generators together for larger steam showers
Compact design permits generator installation in a vanity, a closet or an insulated attic or basement
Includes 35 ft cable (other extension cords sold separately)
SteadySteam™ technology precisely regulates the steam environment without uncomfortable temperature spikes
Proportional Steam technology creates a consistent temperature in the shower
RapidMist™ technology produces quick response steam that takes about a minute for the steam shower to begin heating up. Can turn on/off using the Steam Control
UL Listed
Limited Lifetime Warranty
Order Generator Pan & Auto Drain separately
TECHNICAL SPECIFICATIONS
Kilowatts: 12
Volts: 208
Phase: 3
STANDARD SPECIFICATIONS:

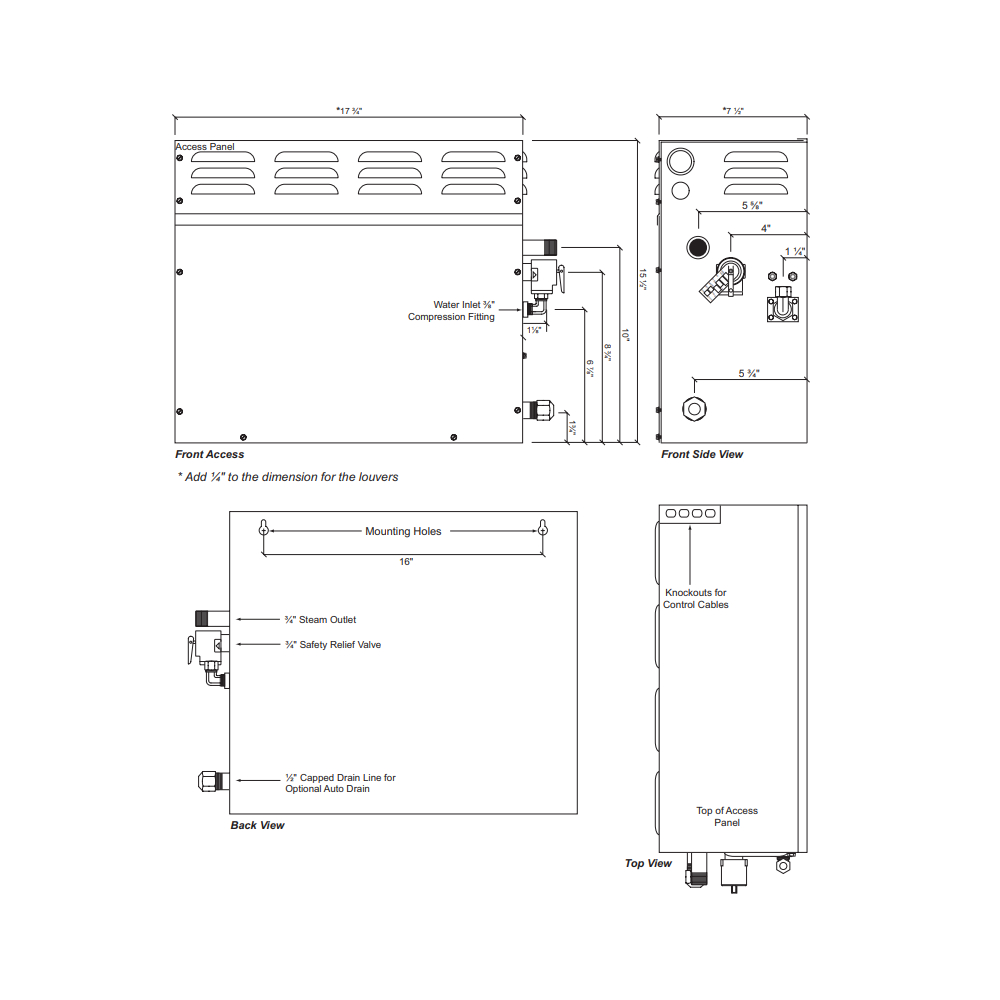

Water Supply - 3/8" Compression Fitting, 120 PSI max
Steam Outlet - 3/4" Brass NPT male thread
Pressure Relief Valve - 3/4" NPT female thread
Drain Outlet - Capped 1/2" Brass NPT male thread
Generator shipped weight - 41 lbs
For optimum performance, the steam generator should be mounted as close as possible to the stream room.
If needed, the steam pipe may be up to 50' long.
Steam Generators should be accessible for service.
Steam generators must NOT be installed outdoors, in moist, humid areas, in areas prone to freezing, or in areas where temperatures can exceed 104°F.
Steamhead to be mounted 12" to 18" above floor or 6" above rim of tub and as far from the seating area as possible.
Do not locate below the user control.
Service Access - Minimum 28" W x 18" D x 22" H (35" W with Auto Drain).
Required Equipment - 8CH-250L, 8CB-250L, 8CH-250R, 8CB-250R, 8CH-600S OR 8CB-600S control interface and steam head
Required Electrical Service - Dedicated circuit required:
See Specification Chart for proper electrical requirements.
