Brizo 8CB-600S-BN-L Mystix Square Steam Control And Bilateral Head Lumicoat Brushed Nickel
MYSTIX™ TRANSCENDENT EXPERIENCE
Digital + Bilateral Steam Set
Craft a holistic ambiance by combining all the benefits of steam with the digital interface and our full suite of spa options.
Digital + Bilateral Steam Set
8CB-600S-BN-L
Selected Finish: Lumicoat® Brushed Nickel
ITEM DETAILS

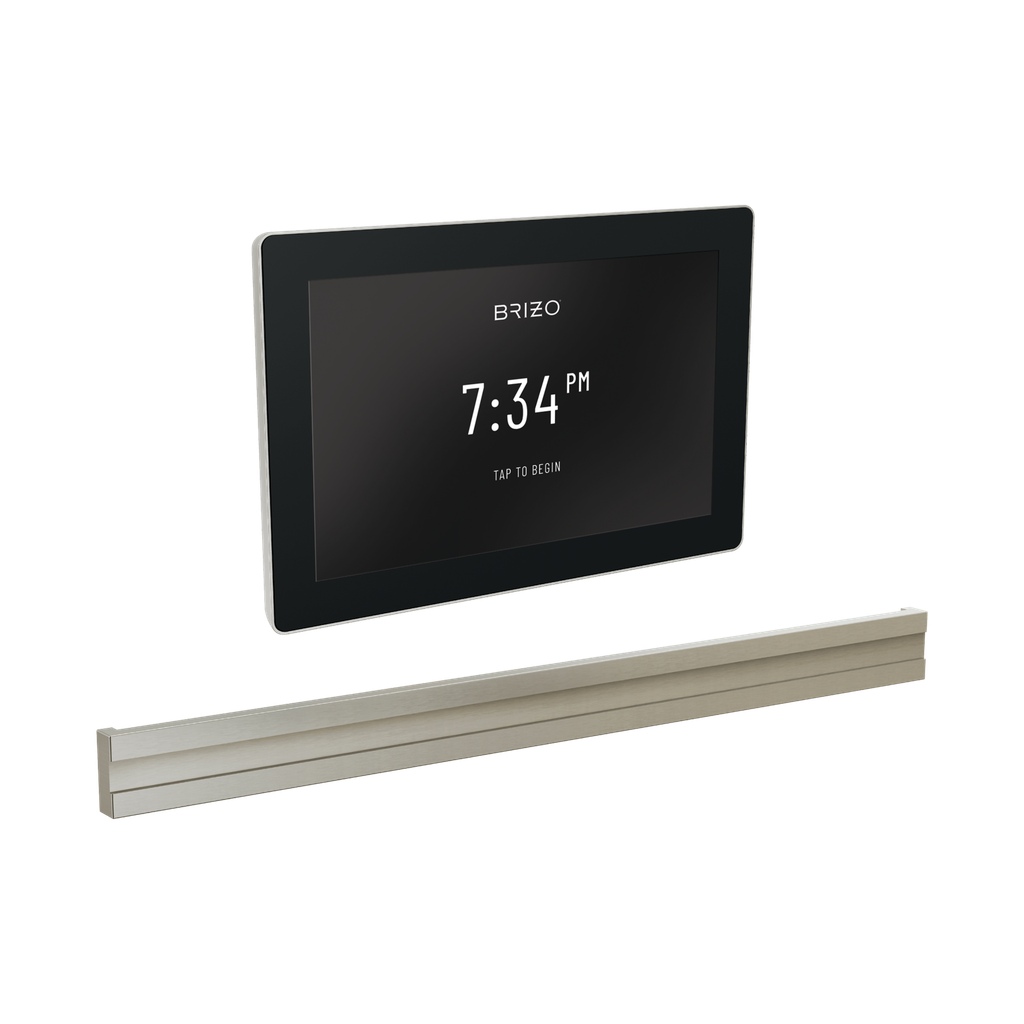

Includes a Digital Interface and Bilateral Steam Head
Programmable for twelve user presets including duration, temperature and spa options

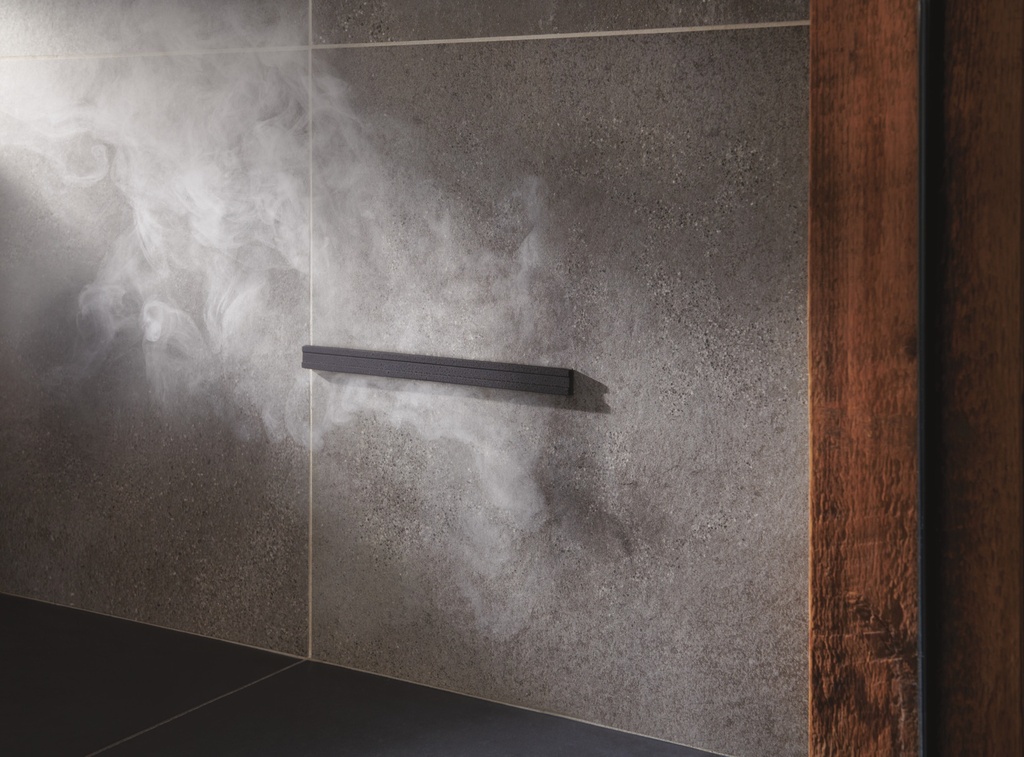

Bilateral Steam Head directs steam up and down for even dispersion and user-comfort
Built-in Wi-Fi with connectivity to the DFC@Home app and other Bluetooth-enabled devices
Connection to streaming services via smartphone when paired with audiotherapy
Portrait or landscape orientation
-L = Lumicoat™ Technology
Spa Options available: Aroma, Chroma, and Audio Therapy
MUST ORDER GENERATOR SEPARATELY
If the cable connecting the Digital Interface to the generator exceeds 35’ (to a max of 70’), order 8GA-000 power booster
STEAM CONTROL FEATURES:
Finger-light touchscreen operation
12 user presets programmable for duration, temperature and optional spa options
Temperature range 50?F min to 125?F max
Steam timer up to 60 minutes
Built-in WiFi and Bluetooth capabilities
Operates AromaTherapy, AudioTherapy and ChromaTherapy options
Patented Dual Sensor Technology:
The control features dual temperature sensors that deliver extremely accurate temperature precision to smoothly regulate the steam shower environment
STEAM CONTROL STANDARD
SPECIFICATIONS:
Surface Mount - 2 3/4" hole required
Must mount inside the steam room
It is recommended that the multi-conductor cable be run through 3/4" conduit to protect cable from damage and to facilitate easy replacement
Mount control near seating area and not above steam head
Control should be mounted 48" above the floor
If the cable conecting this control to the generator exceeds 35' (to max of 70'), order 8GE-000 power booster
Required Electrical Service: Low-voltage connection from the 8GE-TSG steam generator via multi-conductor cable (supplied with generator)
Wi-fi network requirements: Open, WPA, or WPA2
IMPORTANT: Interface may be installed in a Portrait or Landscape orientation. Please note the "TOP" of control prior to mounting
STEAM HEAD STANDARD
SPECIFICATIONS:
Includes 3/4" NPT female thread for connection to steam line
Steam head should be mounted 12" - 18" above the finished floor or 6" above the rim of the tub.
The mounting location must also not be directly beneath the control and should be far from the seating area
