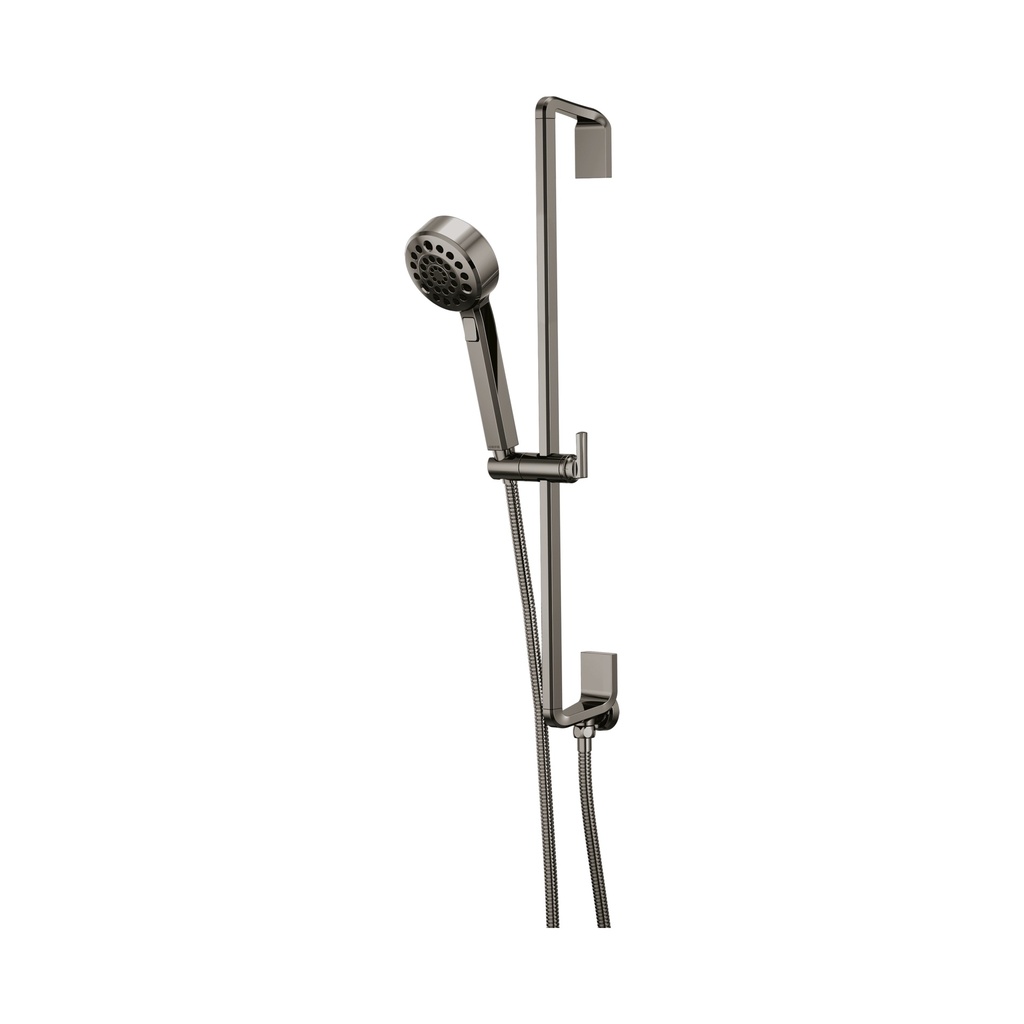

Brizo 88798-BNX Levoir Multi-Function Slide Bar Handshower Brilliance Black Onyx
Levoir®
H2OKINETIC® Multi-Function Slide Bar Handshower
As the Massage Spray creates concentrated pressure, the steady flow of the Full Spray blankets the rest of the body—delivering the ideal combination of refreshing coverage and targeted relief. The full-coverage rinsing spray pattern oscillates and sculpts each droplet, creating the feeling of a high-flow shower while using a fraction of the water.
H2OKINETIC® Multi-Function Slide Bar Handshower
88798-BNX
Selected Finish: Brilliance® Black Onyx
ITEM DETAILS
4 spray settings: H2Okinetic® Rinsing Spray, Full Spray, Massage Spray and Pause
23 25/32" long slide bar
60" - 82" stretchable finished metal hose
Slidebar with integrated hose connection
ADA compliance applies to RP100436 handshower only
TECHNICAL SPECIFICATIONS
Maximum Flow Rate 1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa

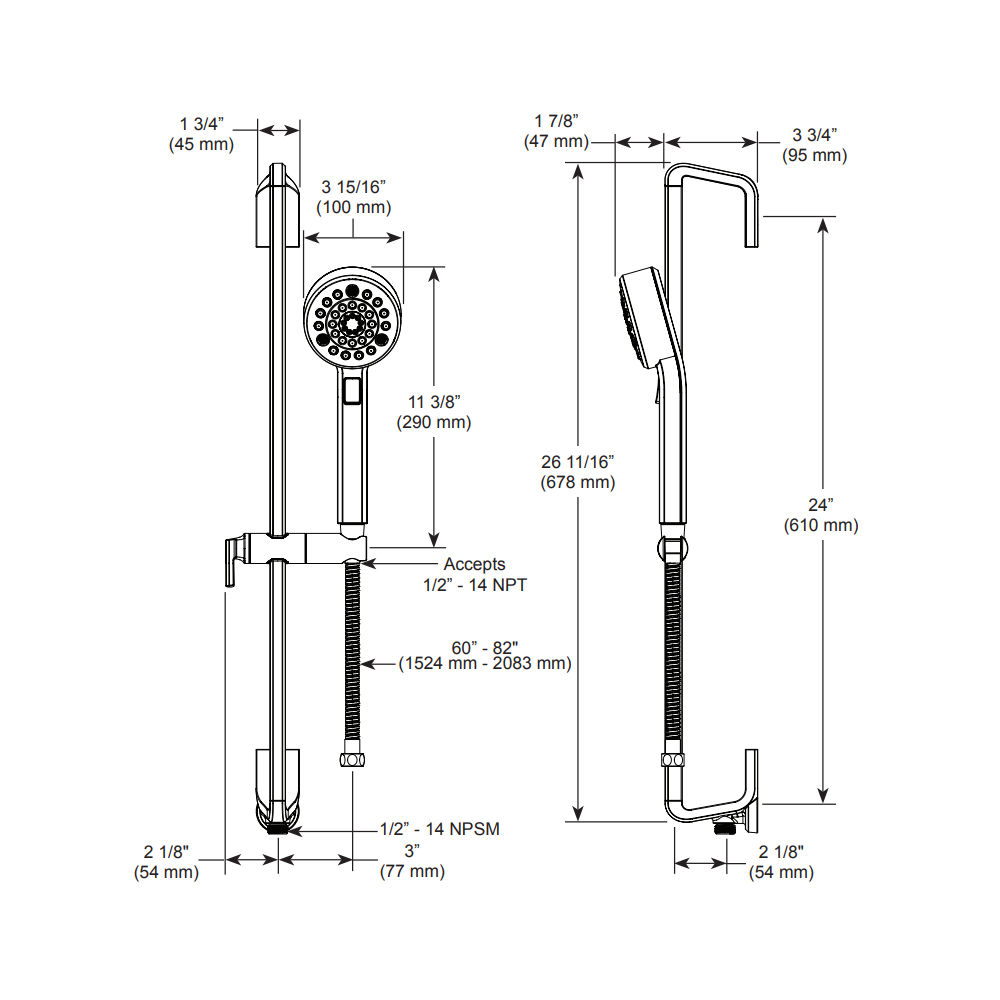

STANDARD SPECIFICATIONS:
Max flow rate 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
Wall bar with adjustable slide (allows for adjustable shower height). Not to be used as a grab bar.
60" - 82" (1524 mm - 2083 mm) stretchable finished metal hose
Wall bar includes integrated elbow for hose connection
Integrated elbow has standard 1/2"-14 NPT supply fitting
Slide bar can be installed with hose connection on top if desired
4 Spray settings: H2Okinetic® Rinsing Spray, Full Body Spray, Massage Spray and Pause. Pause is a non-positive shut-off.
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1u
EPA WaterSense
