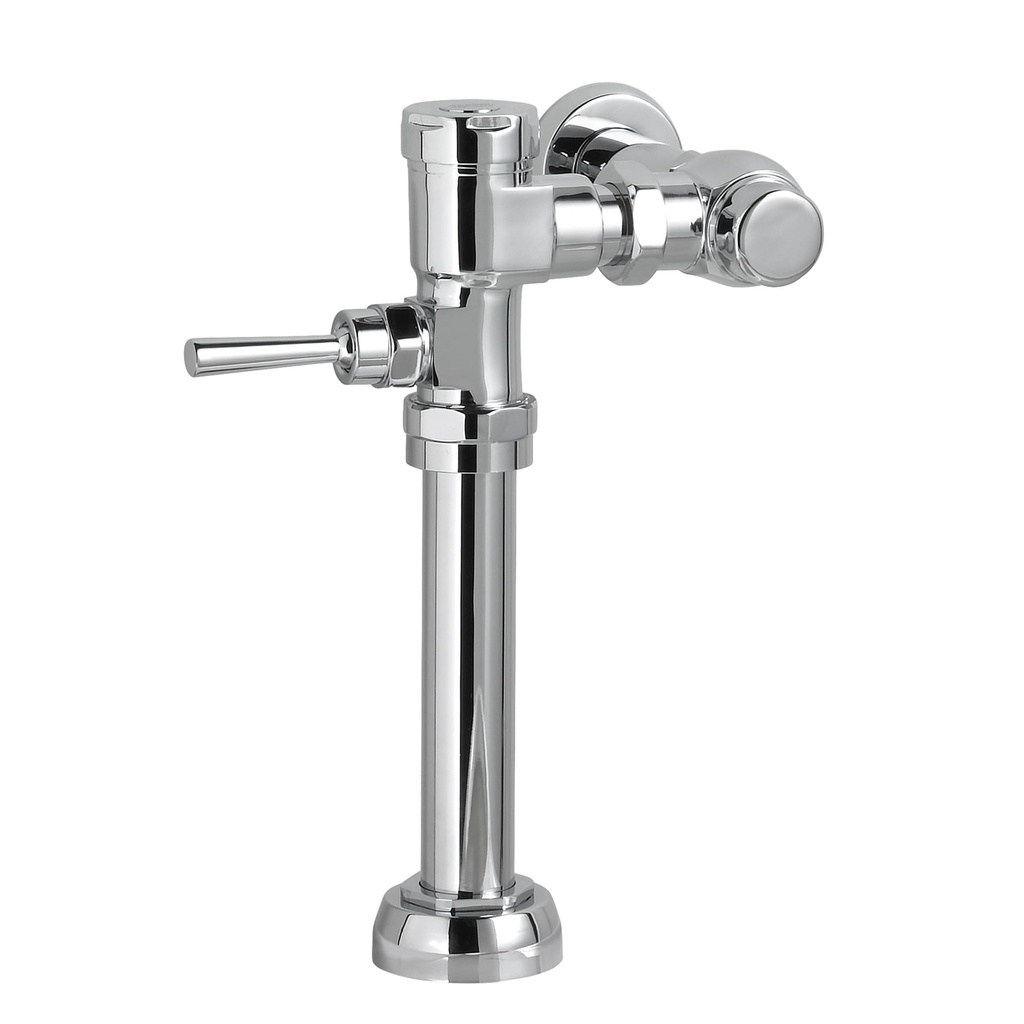

American Standard 6047121.002 Manual Toilet Fv Ts 11.5In R-I 1.28 Gp

American Standard 6047121.002 Ultima Manual Toilet Flush Valve Polished Chrome

MANUAL PISTON FLUSH VALVE
Ultima Manual Toilet Flush Valve, Piston-Type, 1.28 gpf/4.8 Lpf

Model: 6047121.002
For flushometer bowls with 1-1/2-inch (38 mm) exposed top spud
Exclusive DynaClean self-cleaning wiper spring technology
Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
ADA-compliant non-hold open handle provides automatic shut-off after every flush
Piston operation delivers superior flush accuracy and repeatability
Show Less
Finish: Polished Chrome
Polished Chrome

Product Description
An impressive collection of electronic and manual valves designed to meet the demands of high-use spaces. Labor-saving installation, water-saving operation and time-saving maintenance and care.

Features
For flushometer bowls with 1-1/2-inch (38 mm) exposed top spud
Exclusive DynaClean self-cleaning wiper spring technology
Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
ADA-compliant non-hold open handle provides automatic shut-off after every flush
Piston operation delivers superior flush accuracy and repeatability
High back pressure vacuum breaker helps prevent dripping
Can be install left- or right-handed
No external volume adjustment
11-1/2" (292 mm) rough-in

MODEL NUMBER:
6047.121.002 Flush Valve for 11-1/2" Supply C\L to top of bowl, 1.28 gpf
6047.122.002 Flush Valve for 27" Supply C\L to top of bowl, 1.28 gpf
6047.525.002 Retrofit for existing flush valves, 1.28 gpf. Replaces industry standard manual & electronic flush valves. Does not include vacuum breaker assembly, angle stop & sweat solder kit.
OPERATING PRESSURE:
25 psi (flowing)-80 psi (static)
FLOW REQUIREMENT:
25gpm (94.6 L/min.)
